User manual Magewell XI400DE-HDMI PCI Express Video Capture XI-400-DE-HDMI

Operating instructions and pdf manual for use - Magewell XI400DE-HDMI PCI Express Video Capture XI-400-DE-HDMI User manual, User manual Magewell XI400DE-HDMI PCI Express Video Capture XI-400-DE-HDMI, Magewell, XI400DE-HDMI, PCI, Express, Video, Cap


User manual for Magewell XI400DE-HDMI PCI Express Video Capture XI-400-DE-HDMI

Magewell XI400DE-HDMI PCI Express Video Capture XI-400-DE-HDMI
  • Manufacturer: Magewell
  • Basic description and contents of package
  • Product classification: Professional Video - Post Production - Computer Hardware
  • Safety instructions
  • Startup and operation of the computer hardware
  • Tips for setting up your Magewell
  • Settings and expert assistance
  • Contact Magewell service
  • Troubleshooting
  • Warranty information
  • Price: 899 USD

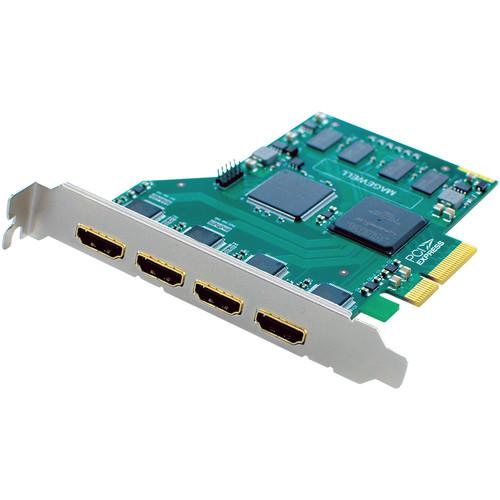

Magewell XI400DE-HDMI PCI Express Video Capture XI-400-DE-HDMI Magewell XI400DE-HDMI PCI Express Video Capture XI-400-DE-HDMI
Click to enlarge image

We recommend checking out our discussion threads on the Magewell XI400DE-HDMI PCI Express Video Capture XI-400-DE-HDMI, which address similar problems with connecting and setting up Computer Hardware Magewell.



User manual for the Magewell XI400DE-HDMI PCI Express Video Capture XI-400-DE-HDMI

The user manual for the Magewell XI400DE-HDMI PCI Express Video Capture XI-400-DE-HDMI provides necessary instructions for the proper use of the product Professional Video - Post Production - Computer Hardware.

Capture up to four full HD HDMI signals with the Magewell XI400DE-HDMI PCI Express Video Capture Card. Using a single PCI slot, the XI400DE-HDMI features four full size HDMI ports, each one capable of accepting a 1080p resolution signal at up to 60 fps. Each input can be configured separately, so you can have an SD feed coming from one source, while an HD feed comes in from another source, and so on. Each source can then be routed to the software of your choice for recording, streaming, etc. The card's internal FGPA processes all of the video adjustments to save your computer's CPU to run necessary software programs.
If you own a Magewell computer hardware and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Magewell XI400DE-HDMI PCI Express Video Capture XI-400-DE-HDMI in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Magewell XI400DE-HDMI PCI Express Video Capture XI-400-DE-HDMIDownload user manual for Magewell XI400DE-HDMI PCI Express Video Capture XI-400-DE-HDMI
(PDF file, 0.4 MB)
Additional parameters of the Magewell XI400DE-HDMI PCI Express Video Capture XI-400-DE-HDMI:
Specifications
    Host Interface PCI Express x4, 700 MB/s throughput
    Input Interface 4 x HDMI Female
    Input Format 4 x HDMI 1.4a (up to 1080p 60 Hz) with LPCM Audio
    Output Format 40 x 30 to 3940 x 2160, 1 to 100 fps
    Color Space YUYV, UYVY, NV12, I420, RGB24, RGB32
    Deinterlacing Vertical filter de-interlacing; motion-adaptive de-interlacing
    Image Scale Hardware 5-Tap scale
    Image Mirroring Horizontal; vertical
    Image Crop Yes
    Image Adjustment Brightness/contrast/hue adjustment/saturation adjustment/control of monochrome and color/gamma adjustment
    Separately adjust the brightness and contrast of R/G/B
    OS Support Windows XP Professional
    Windows Server2003
    Windows Vista
    Windows Server 2008
    Windows 7
    Windows Server 2008 R2
    Windows 8
    Windows 8.1
    Linux
    Software Compatibility Windows Media Encoder
    Adobe Flash Media Live Encoder
    Real Producer Plus
    VideoLAN for Windows
    Onboard Memory 256 MB DDR2
    Installation PCI Express x4, x8, x16 slots, fits in 4U chassis
    Power Consumption <= 8 W
    Dimensions 4.6 x 4" / 117 x 103 mm
    Packaging Info
    Package Weight 0.35 lb
    Box Dimensions (LxWxH) 8.1 x 7.7 x 1.7"
    The user manual for the Magewell XI400DE-HDMI PCI Express Video Capture XI-400-DE-HDMI can be downloaded in .pdf format if it did not come with your new computer hardware, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Magewell users keep a unique electronic library for Magewell computer hardwares, where you can use our link to download the user manual for the Magewell XI400DE-HDMI PCI Express Video Capture XI-400-DE-HDMI.

    The user manual lists all of the functions of the Magewell XI400DE-HDMI PCI Express Video Capture XI-400-DE-HDMI, all the basic and advanced features and tells you how to use the computer hardware. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Magewell service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Magewell XI400DE-HDMI PCI Express Video Capture XI-400-DE-HDMI. User manuals are also available on the Magewell website under Professional Video - Post Production - Computer Hardware.
