User manual MakerBot Digitizer Desktop 3D Scanner MP03955

Operating instructions and pdf manual for use - MakerBot Digitizer Desktop 3D Scanner MP03955 User manual, User manual MakerBot Digitizer Desktop 3D Scanner MP03955, MakerBot, Digitizer, Desktop, 3D, Scanner, MP03955, Video


User manual for MakerBot Digitizer Desktop 3D Scanner MP03955

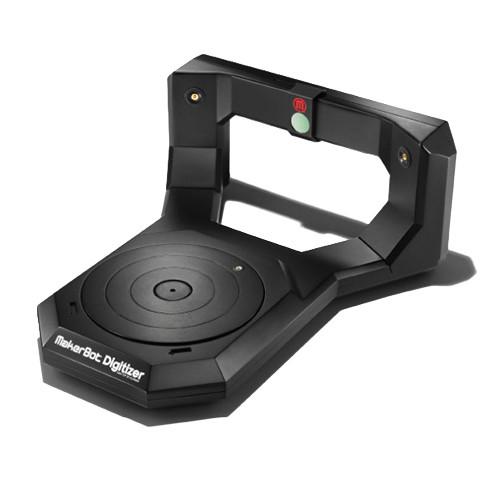

MakerBot  Digitizer Desktop 3D Scanner MP03955
  • Manufacturer: MakerBot
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Printers & Accessories - 3D Scanners
  • Safety instructions
  • Startup and operation of the 3d scanners
  • Tips for setting up your MakerBot
  • Settings and expert assistance
  • Contact MakerBot service
  • Troubleshooting
  • Warranty information
  • Price: 679 USD
We recommend checking out our discussion threads on the MakerBot Digitizer Desktop 3D Scanner MP03955, which address similar problems with connecting and setting up 3D Scanners MakerBot.



User manual for the MakerBot Digitizer Desktop 3D Scanner MP03955

The user manual for the MakerBot Digitizer Desktop 3D Scanner MP03955 provides necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - 3D Scanners.

The Digitizer Desktop 3D Scanner from MakerBot allows you to scan your 3D object and import the 3D file to your computer. When you have digitized the 3D model you want to work with, you'll be able to modify, multiply, improve, and share it for 3D printing. The MakerBot Digitizer is optimized to work with MakerBot Replicator desktop 3D printers, MakerBot MakerWare, and Thingiverse.
If you own a MakerBot 3d scanners and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the MakerBot Digitizer Desktop 3D Scanner MP03955 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the MakerBot Digitizer Desktop 3D Scanner MP03955:
Performance
Scan Volume 8 x 8" / 20.3 x 20.3 cm (max)
Dimensional Accuracy ± 0.079" / ± 2.0 mm
Detail Resolution 0.0197" / 0.5 mm
Triangles Per 3D Model 200,000 (approx.)
Scan Speed 12 minutes (approx.)
Steps Per Rotation 800 per rotation
Optimal Light Conditions Artificial indoor light
Maximum Weight on Turntable 6.6 lbs / 3 kg
Software
Included MakerWare for Digitizer
File Types Supported Exported: STL, THING
Operating Systems Supported Windows: 7 and higher
Mac: OS X 10.7 and higher
Linux: Ubuntu 12.04 and higher
Hardware
Laser 2 x Eye-safe class 1 laser line generators
Camera 1.3-megapixel CMOS image sensor
Enclosure Material PC ABS
Connectivity USB connection
Stepper Motor 0.9° step angle with 1/16 micro-stepping
General
AC Input 100 - 240 V, ~2 AMPS, 50 - 60 Hz
Power Requirements 12 V DC @ 2.08 AMPS
Temperature Operating
60 - 90°F / 15 - 32°C

Storage
32 - 90°F / 15 32°C
Dimensions 18.7 x 8.0 x 16.2" / 47.5 x 20.3 x 41.1 cm
Weight 4.7 lbs / 2.1 kg
Packaging Info
Package Weight 10.2 lb
Box Dimensions (LxWxH) 20.5 x 18.5 x 10.0"
The user manual for the MakerBot Digitizer Desktop 3D Scanner MP03955 can be downloaded in .pdf format if it did not come with your new 3d scanners, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other MakerBot users keep a unique electronic library for MakerBot 3d scannerss, where you can use our link to download the user manual for the MakerBot Digitizer Desktop 3D Scanner MP03955.

The user manual lists all of the functions of the MakerBot Digitizer Desktop 3D Scanner MP03955, all the basic and advanced features and tells you how to use the 3d scanners. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from MakerBot service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the MakerBot Digitizer Desktop 3D Scanner MP03955. User manuals are also available on the MakerBot website under Computers & Solutions - Printers & Accessories - 3D Scanners.
