User manual Mamiya Phase One iXR Medium Format Reproduction 020-00318A

Operating instructions and pdf manual for use - Mamiya Phase One iXR Medium Format Reproduction 020-00318A User manual, User manual Mamiya Phase One iXR Medium Format Reproduction 020-00318A, Mamiya, Phase, One, iXR, Medium, Format, Reproduction, 0


User manual for Mamiya Phase One iXR Medium Format Reproduction 020-00318A

Mamiya Phase One iXR Medium Format Reproduction 020-00318A
  • Manufacturer: Mamiya
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - Medium Format Cameras
  • Safety instructions
  • Startup and operation of the medium format cameras
  • Tips for setting up your Mamiya
  • Settings and expert assistance
  • Contact Mamiya service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Mamiya Phase One iXR Medium Format Reproduction 020-00318A, which address similar problems with connecting and setting up Medium Format Cameras Mamiya.



User manual for the Mamiya Phase One iXR Medium Format Reproduction 020-00318A

The user manual for the Mamiya Phase One iXR Medium Format Reproduction 020-00318A provides necessary instructions for the proper use of the product Photography - Digital Cameras - Medium Format Cameras.

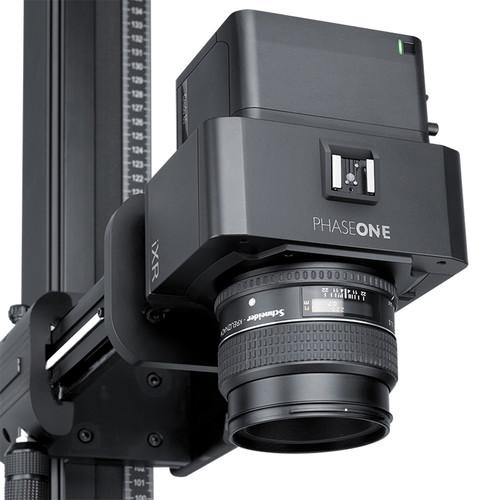

The Phase One iXR Medium Format Reproduction Digital Camera Kit with 80 MP Credo Digital Back and 80mm f/2.8 LS Lens from Mamiya Leaf combines this medium format reproduction camera with a 53.7 x 40.3mm DALSA CCD sensor digital back and a 80mm f/2.8 LS D lens creating a complete imaging system for archival reproduction photography.
If you own a Mamiya medium format cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Mamiya Phase One iXR Medium Format Reproduction 020-00318A in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Mamiya Phase One iXR Medium Format Reproduction 020-00318A:
Specifications
    • Phase One iXR Medium Format Reproduction Digital Camera Body
      Camera Type Medium format camera body for reproduction and industrial applications
      Compatible Digital Backs Mamiya 645/Phase One mount
      Leaf Credo
      Phase One IQ
      Compatible Lenses Schneider-Kreuznach designed leaf shutter lenses
      Mamiya 645 AFD / PRO lenses
      Phase One digital lenses
      Focus Control Remote or manual, real focus control in Live View mode via Capture One software or SDK
      Automation Full automation when working with Leaf Credo or Phase One IQ digital backs
      Shutter Speed Leaf shutter: 1/1600s to 60 minutes
      Focal plane: 1/4000s to 60 minutes
      Constant open aperture option
      Shutter Control 1/3 f-stop increments
      Flash Sync Focal plane shutter: Up to 1/125s
      Leaf shutter lenses: Up to 1/1600s
      Interfaces X sync terminal
      Secured power input (LEMO)
      2 secured I/0 connectors (LEMO)
      Electronic triggering via devices/hand release cable
      mini-USB connector for firmware updates
      Tripod Socket 2x 3/8" - on bottom and on side (25 mm to locking pin hole)
      Power Input 12-30 VDC
      Maximum Power Consumption 20 W (including digital backs)
      Operating Systems Windows 7, Mac OS X 10.6 or later
      Certifications FCC (Class A), CE, RoHS
      Operating Temperature 14° to 104°F (0° to 40°C)
      Operating Humidity 15 to 80% (Non-condensing)
      Dimensions 5.03 x 5.78 x 2.44" (128 x 147 x 62 mm)
      Weight 3.5 lb (1.6 kg) - including digital back
    • Leaf Credo 80MP Digital Back with Mamiya 645 Mount
      Imaging Sensor 53.7 x 40.3mm DALSA CCDCrop factor: 1:1
      Effective Resolution 80MP
      Pixels 10,320 x 7,752
      Pixel Size 5.2 Micron
      Capture Rate 0.7 frames/second

      File Format RAW file format IIQL (large) or IIQS (small). The IIQ stands for "intelligent image quality".
      File Size RAW file compression (large): 80MB,
      RAW file compression (small): 54MB
      ISO 35-800 ISO sensitivity
      Dynamic Range 12.5 f/stops
      Exposure Time 1/10,000 - 120 seconds
      Color Depth 16-bit (65,536 levels per channel)
      Color Management System A range of factory ICC profiles, plus optional ability for users to create custom camera profiles.
      Images Viewing: Preview up to 12 images on one LCD screen. Up to 400% zoom. Measuring tools: Spirit Level, ISO, WB, histogram, exposure alarms, image rating, 645DF custom functions.  Live View on LCD
      Connection FireWire 800, USB 3.0, USB 2.0
      LCD 3.2", bright 1.15MP touch screen with 170º viewing angle
      Software Requirements Capture One 6.4 or higher.Apple Mac: Core Duo 2 or higher, 4GB or more, 10.6 or higherWindows: Core Duo 2 or higher, 4GB or more, Windows 7 or higher
      Storage Compact Flash UDMA 6 cards and high volume portable FireWire disks.
      Languages English, Chinese, German, French, Spanish, Italian, and Japanese
      Operating Environment Temperature: 32 to 104°F / 0 to 40°C, Humidity: 15%-80% (non-condensing)
      Power Supply 2,900 mAh rechargeable Li-ion
      Dimensions 3.8 x 3.15 x 2.4" / 98 x 80 x 61.5mm
      Weight 1.23 lb / 562g
    • Sekor 80mm f/2.8 LS D Lens for 645DF (only) Series Cameras
      Performance
      Focal Length 80mm
      Aperture Maximum: f/2.8
      Minimum: f/22
      Camera Mount Type Mamiya M645 Mount
      Format Compatibility Digital Medium Format Sensor
      Angle of View 47°
      Minimum Focus Distance 27.6" (70 cm)
      Magnification 0.15x
      Maximum Reproduction Ratio 1:7
      Elements/Groups 6/5
      Diaphragm Blades Not Specified By Manufacturer
      Features
      Image Stabilization No
      Autofocus Yes
      Tripod Collar No
      Flash Synchronization Shutter speed up to 1/1600
      Exposure Control 1/800 - 1 sec
      Physical
      Filter Thread 72 mm
      Dimensions (DxL) Approx. 2.03 x 3.17" (5.15 x 8.05 cm)
      Weight 15.87 oz (450 g)
      Packaging Info
      Box Dimensions (LxWxH) 9.5 x 7.5 x 7.0"
    The user manual for the Mamiya Phase One iXR Medium Format Reproduction 020-00318A can be downloaded in .pdf format if it did not come with your new medium format cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Mamiya users keep a unique electronic library for Mamiya medium format camerass, where you can use our link to download the user manual for the Mamiya Phase One iXR Medium Format Reproduction 020-00318A.

    The user manual lists all of the functions of the Mamiya Phase One iXR Medium Format Reproduction 020-00318A, all the basic and advanced features and tells you how to use the medium format cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Mamiya service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Mamiya Phase One iXR Medium Format Reproduction 020-00318A. User manuals are also available on the Mamiya website under Photography - Digital Cameras - Medium Format Cameras.
