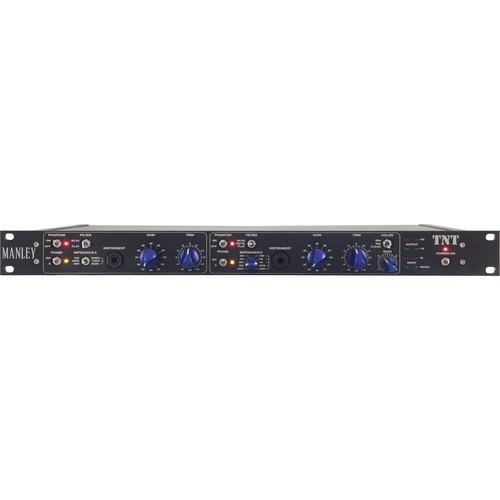

The TNT 2-Channel Microphone Preamp from Manley Labs offers two distinct preamps with vastly different characteristics allowing for a broad spectrum of colors for processing audio. The tube channel offers a transparent sound with tube warmth, while the cool channel's solid-state design offers a palette of clean tones to heavy distortion. The unit is constructed with professional-grade components, hand-wound transformers and hand-selected tubes.
If you own a Manley Labs microphone preamps and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Manley Labs TNT 2-Channel Microphone Preamp MTNT in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Manley Labs TNT 2-Channel Microphone Preamp MTNT:
Specifications
Number of Channels 2
Input & Output Input
Tube Channel Mic: 1 x Combo XLR/1/4" Neutrik Connector
Cool Channel Mic: 1 x Combo XLR/1/4" Neutrik Connector
Tube Channel Instrument: 1 x 1/4"
Cool Channel Instrument: 1 x 1/4"
Output
Tube Channel: 1 x XLR transformer balanced
Tube Channel: 1 x 1/4" unbalanced (+4 dB)
Cool Channel: 1 x XLR transformer balanced
Cool Channel: 1 x 1/4" unbalanced (+4 dB)
Gain Range Tube Channel: +10 to +80 dB (20 to 70 dB in 5 dB steps)
Cool Channel: +10 to +80 dB (20 to 70 dB in 5 dB steps)
Maximum Output Tube Channel for 1% THD via balanced +4 XLR: +31 dBu
Cool Channel for 1% THD:
via balanced +4 XLR: 30 dBu
via unbalanced +4 output: 24 dBu
via unbalanced -10 output: 16 dBu
Tubes Tube Channel Vacuum Tubes: 1 x 12AT7EH + 1 x NOS 6414 or 6414W
Input Impedance Tube Channel Mic: 600, 2400, 10,000 Ω
Tube Channel Instrument: 300 k, 1 Meg, 3 Meg Ω
Cool Channel Mic: 300, 600, 2000, 2 Meg Ω
Cool Channel Instrument: 100 k, 300 k, 1 Meg, 3 Meg, 10 Meg Ω
Frequency Response (Audio) Tube Channel: (-1 dB) 10 Hz to 30 kHz; (-3dB) 5 Hz to 45 kHz
Cool Channel: (-1 dB) 15 Hz to 30 kHz; (-3dB) 5 Hz to 50 kHz
THD & Noise Tube Channel (1 kHz @ 20 dB gain): 0.035% typical (-68 dB)
Cool Channel (1 kHz @ 20 dB gain): 0.01% typical (-80 dB) no distortion products measurable, noise dominates measurement
Noise Floor Tube Channel: -60 dB typical referenced to +4 dBm
Cool Channel: -66 dB typical referenced to +4 dBm
EIN Tube Channel: -120 dB
Cool Channel: -126 dB
S / N Ratio Tube Channel @ 70 dB Gain: 95 dB (TRIM has major effect)
Cool Channel @ 70 dB Gain: 85 dB (TRIM has little effect)
Distortion Cool Channel Distortion @ 1 kHz using '60s / '70s switch:
1.5% typical with LED onset (+4 dBu out)
3% typical with LED fully lit (+7 dBu out)
Power Specifications 200 mA @ 120 VAC
30 W
Fuse: 500 mA Slo-Blo
Rackmount 1U
Dimensions (W x H x D) 19.0 x 1.8 x 10.0" / 48.3 x 4.4 x 25.4 cm
Weight 11.0 lb / 5.0 kg
Packaging Info
Package Weight 13.0 lb
Box Dimensions (LxWxH) 22.5 x 14.6 x 7.9"
