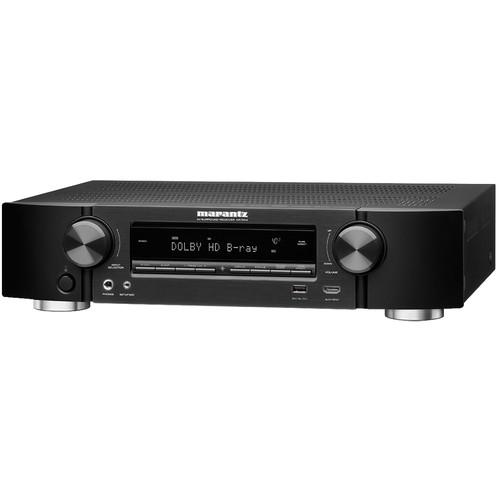

User manual for Marantz NR1504 5.1-Channel Slim Network AV Receiver NR1504
- Manufacturer: Marantz
- Basic description and contents of package
- Product classification: TVs & Entertainment - Receivers & Amplifiers - Receivers
- Safety instructions
- Startup and operation of the receivers
- Tips for setting up your Marantz
- Settings and expert assistance
- Contact Marantz service
- Troubleshooting
- Warranty information
- Price: 399 USD
|
We recommend checking out our discussion threads on the Marantz NR1504 5.1-Channel Slim Network AV Receiver NR1504,
which address similar problems with connecting and setting up Receivers Marantz.
|
User manual for the Marantz NR1504 5.1-Channel Slim Network AV Receiver NR1504
The user manual for the Marantz NR1504 5.1-Channel Slim Network AV Receiver NR1504 provides
necessary instructions for the proper use of the product TVs & Entertainment - Receivers & Amplifiers - Receivers.
The Marantz NR1504 5.1-Channel Slim Network AV Receiver offers powerful multi-channel sound from a compact design. This receiver houses a discrete 5-channel amplifier that can deliver 50W per channel at 8 ohms. Audyssey calibration is built into the receiver to help you tailor the sound of the receiver and connected speakers to your listening environment; a setup microphone is included. Integrated AirPlay allows you to wirelessly stream audio from compatible devices such as iPhones and iPads. An Ethernet port is also available for wired high-speed connections. Internet connectivity allows you to access Internet streaming services, such as Pandora and Spotify.
The Marantz NR1504 is well-equipped for video sources as well as audio. This receiver features six HDMI inputs and an HDMI output. The HDMI interface can handle the pass-through of Full HD 1080p and 3D video signals. On the audio side, this receiver supports high-resolution Dolby TrueHD and DTS-HD over HDMI. For control flexibility, you can use the included remote control, or operate the NR1504 from your Android or iOS smart device with the free Marantz Remote App.
|
If you own a Marantz receivers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Marantz NR1504 5.1-Channel Slim Network AV Receiver NR1504 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Marantz NR1504 5.1-Channel Slim Network AV Receiver NR1504:
| Channels | 5.1 | | Power Output per Channel | 8 ohms: 50 W (20 Hz - 20 kHz, 0.08% THD)
6 ohms: 60 W (1 kHz, 0.7% THD) | | Frequency Response | 10 Hz - 100 kHz (+1, -3 dB, Direct mode) | | Signal to Noise Ratio | 98 dB (IHF-A weighted, Direct mode) | | Input Sensitivity and Impedance | 130 mV/47 k ohms | | Audio Formats | DTS HD Master Audio, DTS HD High Resolution, DTS ES Discrete/Matrix, DTS Neo:6, DTS 96/24, Dolby TrueHD, Dolby Digital, Dolby Digital Plus, Dolby Pro Logic II | | Frequency Response | Composite: 5 Hz - 10 MHz (0, -3 dB) | | Input/Output Level and Impedance | 1 Vp-p, 75 ohms | | Pass-Through | Yes | | Wi-Fi | No | | AirPlay | Yes | | DLNA | Yes | | Inputs | 6 x HDMI (1 front)
3 x RCA Composite video
3 x Stereo RCA audio
1 x Digital optical
1 x Digital coaxial
1 x 1/8" (3.5 mm) flasher
1 x RCA remote | | Outputs | 1 x HDMI
1 x RCA composite video
1 x Stereo RCA pre-out
1 x RCA subwoofer pre-out
1 x RCA remote
1 x Headphone | | Other Ports | 1 x LAN
1 x USB (front)
1 x AM antenna
1 x FM antenna
1 x M-Xport
1 x Setup mic (front)
1 x Power | | Speaker Connectors | Front Left
Front Right
Center
Surround Left
Surround Right | | Audio Return Channel (ARC) | Yes | | Receiving Range | FM: 87.5 MHz - 107.9 MHz
AM: 520 kHz - 1710 kHz | | Usable Sensitivity | FM: 1.2 μV (12.8 dBf), AM: 18 μV | | Signal to Noise Ratio | Mono: 70 dB (IHF-A weighted, Direct mode)
Stereo: 67 dB (IHF-A weighted, Direct mode) | | Total Harmonic Distortion | Mono: 0.7 % (1 kHz)
Stereo: 1.0 % (1 kHz) | | Front Panel | Glass-reinforced resin | | Power Requirements | 120 VAC, 60 Hz | | Power | Power Consumption: 180 W
Standby Consumption: 0.2 W
CEC Standby Consumption: 0.5 W | | Dimensions (WxHxD) | 17.3 x 4.1 x 14.4" / 440.0 x 105.0 x 367.0 mm | | Weight | 18.1 lb / 8.2 kg | | Package Weight | 22.7 lb | | Box Dimensions (LxWxH) | 20.4 x 18.4 x 7.4" | |
The user manual for the Marantz NR1504 5.1-Channel Slim Network AV Receiver NR1504 can be downloaded in .pdf
format if it did not come with your new receivers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Marantz users keep a unique electronic library
for Marantz receiverss,
where you can use our link to download the user manual for the Marantz NR1504 5.1-Channel Slim Network AV Receiver NR1504.
The user manual lists all of the functions of the Marantz NR1504 5.1-Channel Slim Network AV Receiver NR1504,
all the basic and advanced features and tells you how to use the receivers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Marantz service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Marantz NR1504 5.1-Channel Slim Network AV Receiver NR1504. User manuals are also
available on the Marantz website under TVs & Entertainment - Receivers & Amplifiers - Receivers.
