User manual Marantz SR5010 7.2-Channel Network AV Receiver SR5010

Operating instructions and pdf manual for use - Marantz SR5010 7.2-Channel Network AV Receiver SR5010 User manual, User manual Marantz SR5010 7.2-Channel Network AV Receiver SR5010, Marantz, SR5010, 7.2-Channel, Network, AV, Receiver, SR5010,


User manual for Marantz SR5010 7.2-Channel Network AV Receiver SR5010

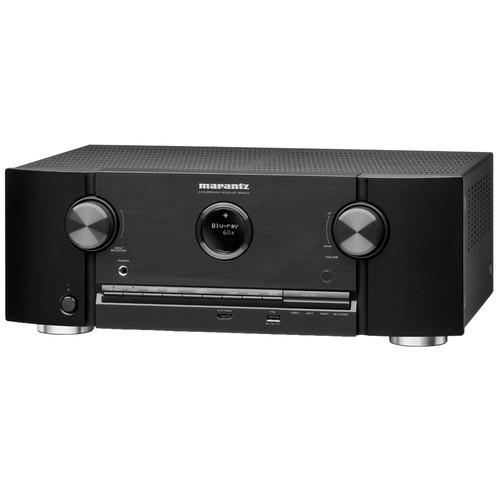

Marantz SR5010 7.2-Channel Network AV Receiver SR5010
  • Manufacturer: Marantz
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - Receivers & Amplifiers - Receivers
  • Safety instructions
  • Startup and operation of the receivers
  • Tips for setting up your Marantz
  • Settings and expert assistance
  • Contact Marantz service
  • Troubleshooting
  • Warranty information
  • Price: 899 USD
We recommend checking out our discussion threads on the Marantz SR5010 7.2-Channel Network AV Receiver SR5010, which address similar problems with connecting and setting up Receivers Marantz.



User manual for the Marantz SR5010 7.2-Channel Network AV Receiver SR5010

The user manual for the Marantz SR5010 7.2-Channel Network AV Receiver SR5010 provides necessary instructions for the proper use of the product TVs & Entertainment - Receivers & Amplifiers - Receivers.

The Marantz SR5010 7.2-Channel Network AV Receiver offers powerful multi-channel sound, video upscaling, and a variety of connectivity options. This receiver houses a powerful discrete 7-channel amplifier that can deliver 100W per channel at 8 ohms. Built-in Dolby Atmos support gives you the ability to add front height channels for an immersive audio experience. The Audyssey Silver calibration suite is built into the receiver to help you tailor the sound of the receiver and connected speakers to your listening environment; a setup microphone is included.

Not only can you connect traditional audio sources like CD players, but the Marantz SR5010 can connect to wireless audio sources via integrated Bluetooth, AirPlay, and Wi-Fi connectivity. An Ethernet port is also available for wired high-speed connections. Additionally, Internet connectivity allows you to access Internet streaming services, such as Pandora and Spotify.

The Marantz SR5010 is well-equipped for video sources as well as audio. This receiver features eight HDMI inputs and two HDMI outputs, including HDMI 2.0a support. Furthermore, the built-in video processor can upscale video sources to conform to 4K displays at a resolution of 3840 x 2160. For control flexibility, you can use the included remote control, or operate the SR5010 from your Android or iOS smart device with the free Marantz Remote App.
If you own a Marantz receivers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Marantz SR5010 7.2-Channel Network AV Receiver SR5010 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Marantz SR5010 7.2-Channel Network AV Receiver SR5010Download user manual for Marantz SR5010 7.2-Channel Network AV Receiver SR5010
(PDF file, 5.57 MB)
Additional parameters of the Marantz SR5010 7.2-Channel Network AV Receiver SR5010:
Main Unit
Channels 7.2
Power Output 8 ohms: 100 W (20 Hz - 20 kHz, 0.08% 2-channels driven)
6 ohms: 140 W (1 kHz, 0.7% 2-channels driven)
6 ohms Maximum: 200 W (1 kHz, 10% 1-channel driven)
Tuner FM
AM
Video
Upscaling 1080p, 4K 30/25/24 Hz
Conversion Analog to HDMI
Pass-Through 3D, 4K
HDCP Compliant 2.2
Connectivity
Wi-Fi Yes
Bluetooth Yes
AirPlay Yes
Audio Return Channel (ARC) Yes
HDMI CEC Yes
Inputs 8 x HDMI (1 front)
3 x Component video (1 front)
2 x Composite video
5 x Stereo RCA (1 front)
2 x Digital optical
2 x Digital coaxial
1 x RCA remote control
2 x RCA front
1 x RCA center
2 x RCA surround
2 x RCA surround back
1 x 1/8" (3.5 mm) IR
Outputs 2 x HDMI
1 x Component video
1 x Composite video
1 x Zone 2 stereo RCA
1 x RCA remote
1 x Headphone (front)
2 x RCA front Pre-out
1 x RCA center Pre-out
2 x RCA surround Pre-out
2 x RCA surround Back Pre-out
2 x RCA subwoofer Pre-out
1 x 1/8" (3.5 mm) DC (12 V / 150 mA)
Other Ports 1 x LAN
1 x USB (front)
1 x AM antenna
1 x FM antenna
1 x RS-232C
1 x Setup mic (front)
1 x Power
Speaker Connectors Front Left
Front Right
Center
Surround Left
Surround Right
Surround Back Left (Assignable)
Surround Back Right (Assignable)
Bi-Amp Capability Yes
General
Power Power Consumption: 650 W
Power Consumption No-Sound (ECO on / off): 45 W / 75 W
Standby Consumption: 0.2 W
CEC Standby Consumption: 0.5 W
Network Standby Consumption: 2.7 W
Dimensions (WxHxD) With Antennas Down: 17.3 x 6.3 x 13.6" / 43.9 x 16.0 x 34.5 cm
With Antennas Up: 17.3 x 9.1 x 13.6" / 43.9 x 23.1 x 34.5 cm
Weight (Approx.) 22.7 lb / 10.3 kg
Packaging Info
Package Weight 27.85 lb
Box Dimensions (LxWxH) 20.4 x 17.2 x 9.7"
The user manual for the Marantz SR5010 7.2-Channel Network AV Receiver SR5010 can be downloaded in .pdf format if it did not come with your new receivers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Marantz users keep a unique electronic library for Marantz receiverss, where you can use our link to download the user manual for the Marantz SR5010 7.2-Channel Network AV Receiver SR5010.

The user manual lists all of the functions of the Marantz SR5010 7.2-Channel Network AV Receiver SR5010, all the basic and advanced features and tells you how to use the receivers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Marantz service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Marantz SR5010 7.2-Channel Network AV Receiver SR5010. User manuals are also available on the Marantz website under TVs & Entertainment - Receivers & Amplifiers - Receivers.
