User manual for the Marshall Electronics CV342-CS 2MP HD-SDI Compact CV342-CS

The user manual for the Marshall Electronics CV342-CS 2MP HD-SDI Compact CV342-CS provides necessary instructions for the proper use of the product Professional Video - Industrial & Multi-Purpose Cameras.

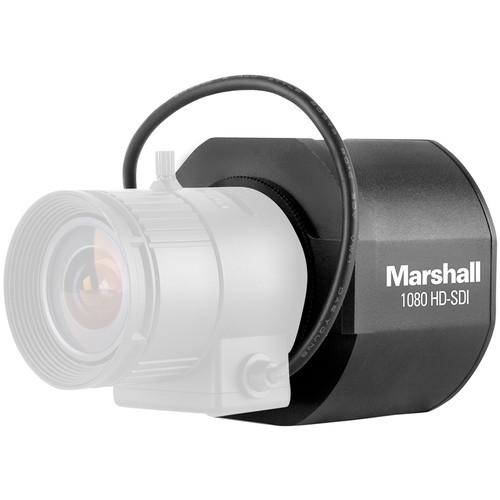

Suitable for use in broadcast situations as well as Reality TV, Sports, Racing, Houses of Worship, and Security applications the Marshall CV342-CS 2MP HD-SDI Compact Camera for Broadcast Applications provides HD video in a small form factor. The camera features a 1.3" CMOS sensor and accepts optional C-mount or CS-mount lenses supporting auto-iris. The camera captures HD video at 1080p 25/30/50/60 fps, 1080i 50/60 as well as 720p 50/60 fps allowing you to easily integrate the camera into an infrastructure that supports progressive frame rates. The camera incorporates one HD/3G-SDI output as well as a CVSB (composite) video output.

With a minimum illumination of 1.0 lux in color or 0.5 lux in B&W mode, the camera can function as a security camera, or be used in telecoferencing in low light situations. It features Digital Wide Dynamic Range and both 2D or 3D noise reduction. Motion detection and privacy masking make this camera a flexible option for capturing intrusions into sensitive areas, and the auto white balance functions helps to deliver normal looking video under changing conditions. Menu settings are available via an OSD, and the built in joystick allows you to navigate the settings.
If you own a Marshall Electronics industrial & multi-purpose cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Marshall Electronics CV342-CS 2MP HD-SDI Compact CV342-CS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Marshall Electronics CV342-CS 2MP HD-SDI Compact CV342-CS:
Sensor 2.2 Megapixel 1/3" Panasonic CMOS Sensor
Scanning System 50 / 60Hz
Active Pixel Count (H x V) 1944 (H) x 1092 (V) = 2,122,848
Effective Pixels (H x V) 2010 (H) x 1108 (V) = 2,227,080
S/N Ratio More than 50dB
Video Output Mode 1080p60/50/30/25
1080i60/50
720p60/50
Video Output Level HD-SDI / 1.0Vp-p (75Ω, Composite) NTSC/PAL (selectable)
Minimum Illumination 1.0Lux (Color), 0.5Lux (B/W), 0.02Lux (Sens-up x30)
Lens Mount C & CS mount lenses
Shutter Speed Auto: 1/30sec~1/50,000sec
Flk: 2~30/sec
White Balance AWB/AWC-Set/Manual/Indoor/Outdoor
Backlight Compensation BLC/HSBLC/Off
Digital Wide Dynamic (D-WDR) Low/Middle/High/Off
AGC (Automatic Gain Control) Low/Middle/High
Adjustments Sharpness/Monitor/LSC/NTSC/PAL
Language English
Japanese
Chinese
Korean
German
French
Italian
Spanish
Polish
Russian
Portuguese
Dutch
Turkish
Hebrew
Arabic
Day & Night Auto/BW/Color/EXT
Noise Reduction 2DNR/3DNR/SMART NR
Digital Zoom 2 to 64x
Temperature & Humidity Operating: 14 to 122°F / -10 to 50°C
Storage: -4 to 140°F / -20 to 60°C
Humidity: 0 to 90%
Power Voltage: 12 VDC
Consumption: Max 150mA
Certification CE, FCC, RoHS, KCE
Dimensions (W x H x D) 2.4 x 2.2 x 1.8" / 60 x 57 x 45 mm
Weight 5.6 Oz / 159 g
Packaging Info
Package Weight 0.7 lb
Box Dimensions (LxWxH) 6.5 x 5.2 x 3.2"
