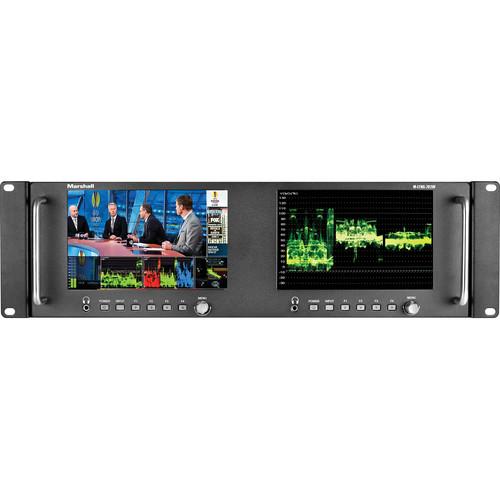

The Marshall Electronics M-LYNX-702 Dual 7" 3G-SDI Rackmount Monitor features two 7" LCD displays with 1200 x 800 resolution each housed in a single, 3RU rackmoutable non-tilting frame. It features 3G-SDI, HDMI, and analog connectivity for both HD and SD video sources. It is designed to be used in a multitude of production, surveillance, or industrial applications. Possible applications include fly-packs, control rooms, routing rooms, live switching, or anywhere else individual video feeds require their own dedicated monitor.

The LCD panels in the M-LYNX-702W have a 400 cd/m² brightness, a 800:1 contrast ratio, and a viewing angle of 178°°. With a 1200 x 800 resolution, they feature a native aspect ratio of 16:9.

Each display in the M-LYNX-702W features a 3G-SDI input with loop-out, an HDMI input with loop out, a component input with loop-out, a composite input with loop-out, and a stereo analog audio input. In addition, there is a headphone jack on the front panel below each display for local audio monitoring. Finally, a GPI port allows the display to be connected to tally systems as well as wired remote controls.

The M-LYNX-702 is designed for installation in standard 19" racks, and has a rack height of 3RU. It includes a 12V power supply and can also be powered from 12 VDC sources via either 4-pin XLR or a 5.5mm barrel connector. A single power supply powers both LCD panels.
If you own a Marshall Electronics production monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Marshall Electronics M-LYNX-702W Dual 7" Loop M-LYNX-702W in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Marshall Electronics M-LYNX-702W Dual 7" Loop M-LYNX-702W:
Monitor Type 2 x LCD in single 3 RU rack-mountable enclosure
Screen Size 7" - 6 x 3.5" / 153.6 x 90 mm active area
Resolution 1200 x 800
Aspect Ratio 16:9
Viewing Angle 178°°
Brightness 400 cd/m²
Contrast Ratio 800:1
Inputs Per Monitor:
1 x 3G-SDI on BNC female
1 x HDMI
1 x Component on 3 x BNC female
1 x Composite on BNC female
1 x Stereo unbalanced audio on 2 x RCA female
Outputs Per Monitor:
1 x 3G-SDI loop-out on BNC female
1 x HDMI loop through
1 x Component loop-out on 3 x BNC female
1 x Composite loop-out on BNC female
1 x Front panel headphone on 3.5 mm stereo mini jack
SDI Standards Embedded audio; SMPTE-292M, 259M, 424M
Remote Control Per Monitor:
1 x Tally / GPI on 9-pin D-sub female
USB Per Monitor:
1 x USB mini service port
Power Requirements 5.5 mm jack: 12 VDC
4-pin XLR: 12 VDC
Rack Height 3 RU - 4 x 1/4"-20 mounting points
Dimensions (WxHxD) 19 x 5 x 1" / 483 x 127 x 25 mm
Weight 5.8 lb / 2.65 kg
