User manual Marvel Vizion Benchmark Mobile Presentation MVPSE2432KMST-LE

Operating instructions and pdf manual for use - Marvel Vizion Benchmark Mobile Presentation MVPSE2432KMST-LE User manual, User manual Marvel Vizion Benchmark Mobile Presentation MVPSE2432KMST-LE, Marvel, Vizion, Benchmark, Mobile, Presentation, MVP


User manual for Marvel Vizion Benchmark Mobile Presentation MVPSE2432KMST-LE

Marvel Vizion Benchmark Mobile Presentation MVPSE2432KMST-LE
  • Manufacturer: Marvel
  • Basic description and contents of package
  • Product classification: A/V Presentation - Mounts & Carts - Presentation Carts
  • Safety instructions
  • Startup and operation of the presentation carts
  • Tips for setting up your Marvel
  • Settings and expert assistance
  • Contact Marvel service
  • Troubleshooting
  • Warranty information
Marvel Vizion Benchmark Mobile Presentation MVPSE2432KMST-LE Marvel Vizion Benchmark Mobile Presentation MVPSE2432KMST-LE Marvel Vizion Benchmark Mobile Presentation MVPSE2432KMST-LE
Click to enlarge image

We recommend checking out our discussion threads on the Marvel Vizion Benchmark Mobile Presentation MVPSE2432KMST-LE, which address similar problems with connecting and setting up Presentation Carts Marvel.



User manual for the Marvel Vizion Benchmark Mobile Presentation MVPSE2432KMST-LE

The user manual for the Marvel Vizion Benchmark Mobile Presentation MVPSE2432KMST-LE provides necessary instructions for the proper use of the product A/V Presentation - Mounts & Carts - Presentation Carts.

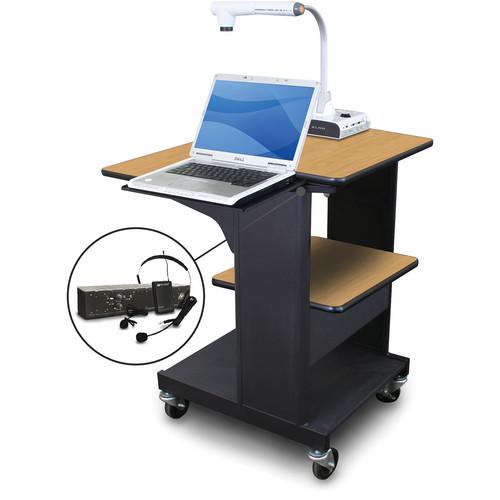

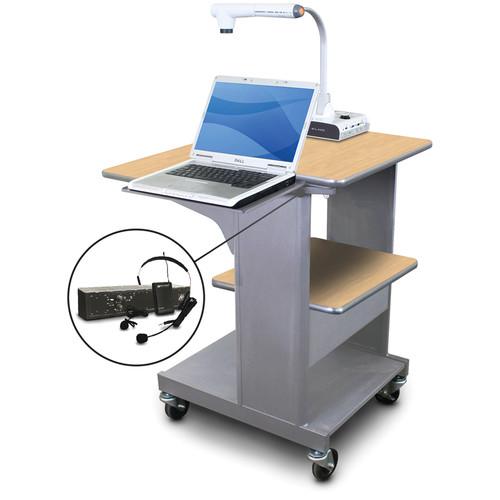

The Marvel Vizion Benchmark Mobile Presentation Cart is a multimedia workstation that has a kensington maple laminate and steel construction as well as a laptop shelf and an AmpliVox headset audio system. It features five shelves of varying size for holding things like computers, projectors, document cameras, and more. Also, the rear shelf is adjustable and the cart has ball bearing casters that can lock for when you need to keep it in place.

The sound system consists of a two-piece wireless amplifier module and single line array system with six 2" speakers. Their rack-mount design allows you to install these components in different positions. The line array speakers face front while the amplifier module faces the rear. This cart includes a 16-channel UHF wireless over-ear flesh-tone microphone along with a bodypack transmitter that runs on two included AA batteries.

For keeping your electronics organized, the cart features cable management. The cart even has a swiveling side shelf designed for holding a laptop. Also, it ships assembled for your convenience. The Benchmark cart is Greenguard Gold Certified and is made in the USA.
If you own a Marvel presentation carts and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Marvel Vizion Benchmark Mobile Presentation MVPSE2432KMST-LE in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Marvel Vizion Benchmark Mobile Presentation MVPSE2432KMST-LE:
Application Mobile workstation
Construction Unit: Steel
Platform Surface: High-pressure laminate
Finish Silver Powdercoat Paint
Kensington Maple laminate
Shelves Top Shelf: 16 x 24" (41 x 61 cm)
Rear Adjustable Shelf: 18 x 24" (46 x 61 cm)
Fixed Middle Shelf: 17.25 x 20.25" (44 x 51 cm)
Bottom Shelf: 25.75 x 24.00" (65 x 61 cm)
Swivel Laptop Shelf: 15 x 11" (38 x 28 cm)
Casters 4
Adjustments Height of Rear Shelf: 30-39" (76.2-99.1 cm) in 1" (2.5 cm) increments
Amplifier 16-channel UHF wireless receiver
Range: 300' (91 m)
50 watts
Enclosure: sealed type / rotational molded
Mounting Bracket: 2U rackmount flanges

Front
On/off switch
Line-in volume control
Mic volume
Two 3.5 mm line-in jacks

Rear
Speaker Out: RCA
One 3.5 mm line-in jack
12 DC power jack
XLR / 1/4" TRS (Tip Ring Sleeve) combo jack
Amplifier Dimensions 17.0 x 3.4 x 5.0" (43 x 9 x 13 cm)
Microphone Wireless 16-channel UHF Headset Mic Kit with bodypack transmitter
Frequency: 584-608 MHz
Speakers Six 2" (5 cm) speakers
Frequency Response: 400-12,000 Hz
Power Handling: 30 watts
Impedance: 4 Ω
Rear Speaker In: RCA
Enclosure: sealed type / rotational molded
Mounting Bracket: 2U rackmount flanges
Metal grille
Dimensions 24 x 32 x 40" (61 x 81 x 102 cm)
Weight 96 lb (44 kg)
The user manual for the Marvel Vizion Benchmark Mobile Presentation MVPSE2432KMST-LE can be downloaded in .pdf format if it did not come with your new presentation carts, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Marvel users keep a unique electronic library for Marvel presentation cartss, where you can use our link to download the user manual for the Marvel Vizion Benchmark Mobile Presentation MVPSE2432KMST-LE.

The user manual lists all of the functions of the Marvel Vizion Benchmark Mobile Presentation MVPSE2432KMST-LE, all the basic and advanced features and tells you how to use the presentation carts. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Marvel service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Marvel Vizion Benchmark Mobile Presentation MVPSE2432KMST-LE. User manuals are also available on the Marvel website under A/V Presentation - Mounts & Carts - Presentation Carts.
