User manual Matrox MicroQuad SDI to HDMI Multiviewer for 3G / HD / SD MQUAD

Operating instructions and pdf manual for use - Matrox MicroQuad SDI to HDMI Multiviewer for 3G / HD / SD MQUAD User manual, User manual Matrox MicroQuad SDI to HDMI Multiviewer for 3G / HD / SD MQUAD, Matrox, MicroQuad, SDI, to, HDMI, Multiviewer,


User manual for Matrox MicroQuad SDI to HDMI Multiviewer for 3G / HD / SD MQUAD

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Matrox MicroQuad SDI to HDMI Multiviewer for 3G / HD / SD MQUAD
  • Manufacturer: Matrox
  • Basic description and contents of package
  • Product classification: A/V Presentation - Signal Processing & Distribution - Multi Viewer Processors
  • Safety instructions
  • Startup and operation of the multi viewer processors
  • Tips for setting up your Matrox
  • Settings and expert assistance
  • Contact Matrox service
  • Troubleshooting
  • Warranty information
  • Price: 995 USD
We recommend checking out our discussion threads on the Matrox MicroQuad SDI to HDMI Multiviewer for 3G / HD / SD MQUAD, which address similar problems with connecting and setting up Multi Viewer Processors Matrox.



User manual for the Matrox MicroQuad SDI to HDMI Multiviewer for 3G / HD / SD MQUAD

The user manual for the Matrox MicroQuad SDI to HDMI Multiviewer for 3G / HD / SD MQUAD provides necessary instructions for the proper use of the product A/V Presentation - Signal Processing & Distribution - Multi Viewer Processors.

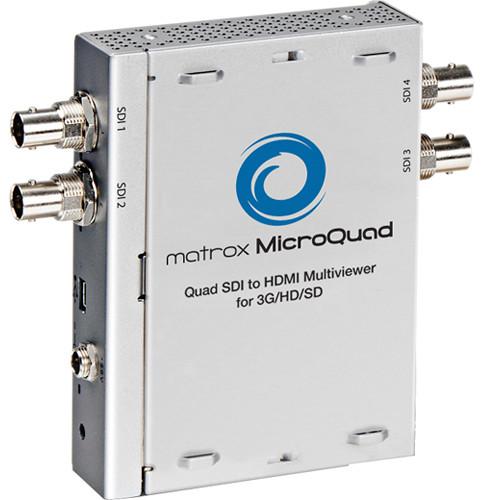

The Matrox MicroQuad SDI to HDMI Multiviewer for 3G / HD / SD Feeds, in a body of about 5 x 5", lets you connect four cameras by SDI and then stream all four to share one HDMI monitor at the same time. The monitor will display four quadrants, with each showing one of your camera signals. The signals can be in 3G, HD, or SD format, but must all be of the same. 4K is also supported, via 3G or HD-SDI, and gets downscaled to 1080p. At any moment, you can choose one of the four quadrants to take up the whole screen, and you can toggle between the four in taking up the whole screen.

MicroQuad features all its controls on its body, and no computer is necessary to do what the above describes, but software can alternatively be used to carry out all the same functions. The software is a utility download available at no charge from Matrox. It is Windows-based and gets activated per a USB connection between the computer and MicroQuad.
If you own a Matrox multi viewer processors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Matrox MicroQuad SDI to HDMI Multiviewer for 3G / HD / SD MQUAD in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Matrox MicroQuad SDI to HDMI Multiviewer for 3G / HD / SD MQUAD:
Inputs/Outputs 4x 3G/HD/SD-SDI inputs
1x HDMI output

1x mini USB type B for firmware updates
Input Display Resolutions NTSC
PAL
720p 50/59.94/60
1080i 50/59.94/60
1080p 23.98/24/25/29.97/30
1080PsF 23.98/24/25/29.97/30
1080p (Level A) 50/59.94/60
1080p (Level B -- dual link) 50/59.94/60
Display Formats Quadrant view / Full Screen view
Audio SDI inputs: 16 channels embedded
HDMI output: 8 channels embedded
Standards SDI compliance with SMPTE-259M/292M/424M
SDI support of YUV 4:2:2 8-bit/10-bit
Automatic detection of input signal
HDMI support of YUV 4:2:2
Operating Requirements Voltage and amperage: 5V/3Amps

Maximum altitude for operation: 1.86 miles (3,000 m)
Maximum altitude for transport: 7.45 miles (12,000 m)

Operating temperature: 32 to 104°F (0 to 40°C)
Storage temperature: -40 to 167°F (-40 to 75°C)
Operating humidity: 20 to 80% relative humidity (non-condensing)
Storage humidity: 5 to 95% relative humidity (non-condensing)
System Requirements Microsoft Windows 7 Professional or Ultimate (32-bit or 64-bit) with Service Pack 1, or Windows XP Professional (32-bit) with Service Pack 3
Dimensions 4.9 x 4.6 x 1" (12.5 x 11.8 x 2.6 cm)
Weight .48 lbs (220 g)
Packaging Info
Package Weight 1.25 lb
Box Dimensions (LxWxH) 5.8 x 5.3 x 4.5"
The user manual for the Matrox MicroQuad SDI to HDMI Multiviewer for 3G / HD / SD MQUAD can be downloaded in .pdf format if it did not come with your new multi viewer processors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Matrox users keep a unique electronic library for Matrox multi viewer processorss, where you can use our link to download the user manual for the Matrox MicroQuad SDI to HDMI Multiviewer for 3G / HD / SD MQUAD.

The user manual lists all of the functions of the Matrox MicroQuad SDI to HDMI Multiviewer for 3G / HD / SD MQUAD, all the basic and advanced features and tells you how to use the multi viewer processors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Matrox service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Matrox MicroQuad SDI to HDMI Multiviewer for 3G / HD / SD MQUAD. User manuals are also available on the Matrox website under A/V Presentation - Signal Processing & Distribution - Multi Viewer Processors.
