Microsemi 60W Single Port Over 4-pairs Gigabit PD-9501G/24VDC
  • Manufacturer: Microsemi
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired Networking - Power over Ethernet (PoE)
  • Safety instructions
  • Startup and operation of the power over ethernet (poe)
  • Tips for setting up your Microsemi
  • Settings and expert assistance
  • Contact Microsemi service
  • Troubleshooting
  • Warranty information
  • Price: 109 USD

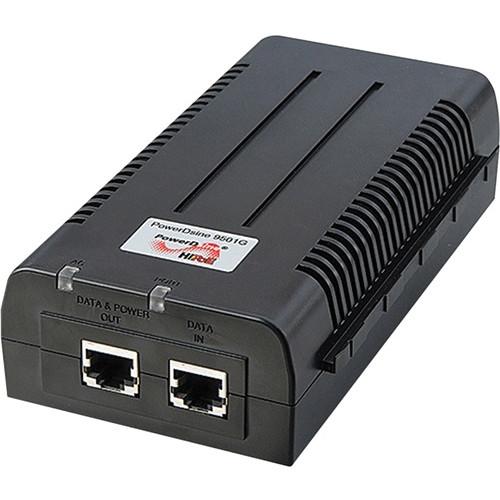

Microsemi 60W Single Port Over 4-pairs Gigabit PD-9501G/24VDC Microsemi 60W Single Port Over 4-pairs Gigabit PD-9501G/24VDC Microsemi 60W Single Port Over 4-pairs Gigabit PD-9501G/24VDC
Click to enlarge image

We recommend checking out our discussion threads on the Microsemi 60W Single Port Over 4-pairs Gigabit PD-9501G/24VDC, which address similar problems with connecting and setting up Power over Ethernet (PoE) Microsemi.



User manual for the Microsemi 60W Single Port Over 4-pairs Gigabit PD-9501G/24VDC

The user manual for the Microsemi 60W Single Port Over 4-pairs Gigabit PD-9501G/24VDC provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired Networking - Power over Ethernet (PoE).

The 60W Microsemi PowerDsine PD-9501G 1-Port 4-Pair Power over Ethernet Midspan with 24 VDC input is a single port solution for remote powering of current as well as emerging high power applications. The PowerDsine 9501G is designed specifically to power IEEE 802.11n and IEEE 802.3at access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals with 60W of power, and is also backward compatible and safe to use with any 802.3af terminal such as VoIP phones, IP cameras and wireless LAN access points. It can power both existing 10/100Base-T devices and emerging wireless Gigabit devices such as WI-MAX and wireless IEEE 802.11n access points. With the midspan's plug-and-play installation, they are easily and cost effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.
If you own a Microsemi power over ethernet (poe) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Microsemi 60W Single Port Over 4-pairs Gigabit PD-9501G/24VDC in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Microsemi 60W Single Port Over 4-pairs Gigabit PD-9501G/24VDC:
Number of Ports 1
Data Rates Pass Through: 10/100/1000 Mb/s
PoE Power Output Pin Assignment and Polarity:
Data Pairs 1/2 (-) and 3/6 (+)
Spare Pairs 7/8 (-) and 4/5 (+)
Output Power Voltage: 54 to 57 VDC
User Port Power: 60 W (maximum)
Input Power Input Voltage: 24 VDC
Output Voltage: 54 to 57 VDC
Input Current: 3.5 A @ 24 VDC
Indicators System Indicator: AC power (green), channel power (green and orange)
Channel Channel Power: Delivered over 4 pairs
Connectors Shielded RJ45, EIA 568A, and 568B
Ambient Operating Temperature 14 to 113°F (-10 to 45°C) @ 60 W
14 to 131°F (-10 to 55°C) @ 30 W
Operating Humidity Maximum 90% (non-condensing)
Storage Temperature -4 to 158°F (-20 to 70°C)
Storage Humidity Maximum 95% (non-condensing)
Operating Altitude -1000 to 10,000' (-304.8 to 3048 m)
Reliability MTBF 100,000 hours @ 77°F (25°C)
Regulatory IEEE 802.3af (PoE), IEEE 802.3at (including 2-event), RoHS compliant, WEEE compliant, and CE
Electromagnetic Emissions & Immunity FCC part 15 class B
EN 55022 class B (emissions)
EN 55024 (immunity), VCCI
Safety Approvals UL/cUL Per EN 60950-1
GS Mark Per EN 60950-1
Dimensions (W x H x L) 3.46 x 2.02 x 6.53" (8.79 x 5.13 x 16.6 cm)
Weight 0.9 lb (0.4 kg)
Packaging Info
Package Weight 1.25 lb
Box Dimensions (LxWxH) 9.2 x 3.9 x 3.7"
