User manual Microsemi Outdoor PoE Surge Protector PD-OUT/SP11

Operating instructions and pdf manual for use - Microsemi Outdoor PoE Surge Protector PD-OUT/SP11 User manual, User manual Microsemi Outdoor PoE Surge Protector PD-OUT/SP11, Microsemi, Outdoor, PoE, Surge, Protector, PD-OUT/SP11,


User manual for Microsemi Outdoor PoE Surge Protector PD-OUT/SP11

Microsemi Outdoor PoE Surge Protector PD-OUT/SP11
  • Manufacturer: Microsemi
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Connectors & Adapters - Cable Connectors
  • Safety instructions
  • Startup and operation of the cable connectors
  • Tips for setting up your Microsemi
  • Settings and expert assistance
  • Contact Microsemi service
  • Troubleshooting
  • Warranty information
  • Price: 70 USD
We recommend checking out our discussion threads on the Microsemi Outdoor PoE Surge Protector PD-OUT/SP11, which address similar problems with connecting and setting up Cable Connectors Microsemi.



User manual for the Microsemi Outdoor PoE Surge Protector PD-OUT/SP11

The user manual for the Microsemi Outdoor PoE Surge Protector PD-OUT/SP11 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Connectors & Adapters - Cable Connectors.

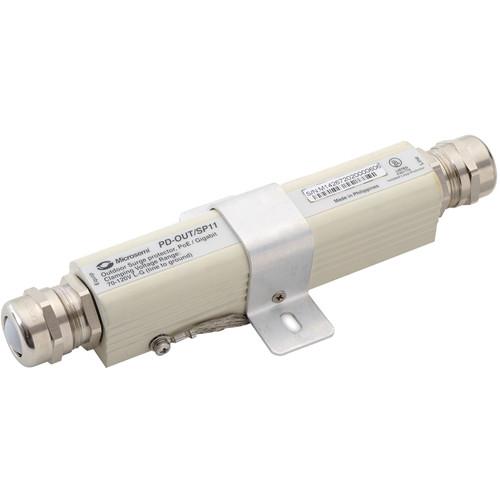

The PD-OUT-SP11 from Microsemi is a surge protection device designed to protect indoor Ethernet networks from lightning that finds its way from the outdoor environment through to the Ethernet cable. The product is enclosed in a metal weatherproof enclosure, which meets the IP66 rating.

The surge protector is designed to be easily mounted and installed before the cable enters the building to protect the indoor network, or pole-mounted close to the outdoor device (WLAN AP, IP Camera, etc.) to protect it
If you own a Microsemi cable connectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Microsemi Outdoor PoE Surge Protector PD-OUT/SP11 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Microsemi Outdoor PoE Surge Protector PD-OUT/SP11:
Specifications
    Dataline Protection Ethernet
    Number of Ports 1
    Pass Through Data Rates 10/100/1000 Mbps
    Surge Protection and Filtering 10 kv, 5 kA to ground in 8/20 µs, 800 v, 100 A PoE
    DC Input Input Power: 95 W maximum
    Input Current: 2 A max
    Connectors Shielded RJ-45
    Environmental Conditions Operating Ambient Temperature: -40º to 185ºF (-40 to 85ºC)
    Operating Humidity: Maximum 95%, non-condensing
    Storage Temperature: -40º to 185ºF (-40 to 85ºC)
    Storage Humidity: Maximum 95%, non-condensing
    Reliability MTBF: 400,000 hrs. @ 25ºC
    Regulatory Compliance REACH, RoHS, WEEE, IEC60529 level, IP66, NEMA 250, level 4x
    Immunity to Surges IEC61643-21, GR1089, ITU-T K.45
    Safety Approvals UL 497B
    Country of Origin Philippines
    Dimensions (W x H x L) 1.18 x 1.18 x 7.48" (30 x 30 mm x 190 mm)
    Weight .6 lb (270 g)
    Packaging Info
    Package Weight 0.9 lb
    Box Dimensions (LxWxH) 9.449 x 4.016 x 1.811"
    The user manual for the Microsemi Outdoor PoE Surge Protector PD-OUT/SP11 can be downloaded in .pdf format if it did not come with your new cable connectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Microsemi users keep a unique electronic library for Microsemi cable connectorss, where you can use our link to download the user manual for the Microsemi Outdoor PoE Surge Protector PD-OUT/SP11.

    The user manual lists all of the functions of the Microsemi Outdoor PoE Surge Protector PD-OUT/SP11, all the basic and advanced features and tells you how to use the cable connectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Microsemi service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Microsemi Outdoor PoE Surge Protector PD-OUT/SP11. User manuals are also available on the Microsemi website under Surveillance - Surveillance Video - Connectors & Adapters - Cable Connectors.
