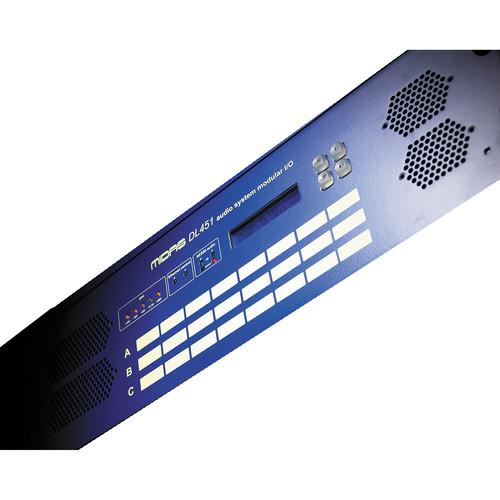

The DL451 3x8 Modular I/O Unit by Midas is a user-configurable module with a 3x8 XLR format allowing up to 24 audio inputs or outputs. The unit can be used with the Midas XL8 and PRO series of digital mixing systems, or as a standalone AES50 audio interface in a Midas snake and audio distribution systems with remote control via Ethernet. The DL451 Modular I/O has three module slots which can be configured as a combination of analog mic/line in, analog out, and digital in/out (AES/EBU). The unit features MIDI in, out, and thru sockets as well as two GPIO connections. Dual redundant AES50 connections are also included and can be used with a CAT-5 cable for remote access from a PC when using the unit as a standalone, as part of a snake, without a console.

The DL451 is compatible with the DL441, DL442, DL443, DL452, and DL444 I/O cards.
If you own a Midas digital mixer accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Midas DL451 3x8 Modular I/O Unit DL451 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Midas DL451 3x8 Modular I/O Unit DL451:
Rack Spaces 3U
Rack Depth 16" / 41 cm
Power Requirements 100 to 240 V, 50 to 60 Hz
Analog Inputs Connector: 3-pin XLR balanced
A/D Converter: 24-bit, 96k and 128 times over sampling
Analog Outputs Connector: 3-pin XLR balanced
D/A Converter: 24-bit, 96k and 128 times over sampling
Digital Inputs Connector: AES3 (two channels of digital audio) on 3-pin XLR
Sample Rates: Accepts any frequency between 32k to 96k
Bypass: Sample rate converter can be bypassed
Digital Outputs Connector: AES3 (two channels of digital audio) on 3-pin XLR
Sample rates: 48k, 96k, or auto tracking to inputs
Bypass: Sample rate converter can be bypassed
Word length: 16-, 20-, 24-bit
Other Connectors MIDI Connector: In, out, and thru on 5-pin DIN
GPIO IN Connector: 25-pin D-type (opto isolated)
GPIO OUT Connector: 25-pin D-type (opto isolated)
Digital System Connector: AES50 (24 channels of bi-directional digital audio) on Ethercon XLR
Digital Duplicate Connector: AES50 (24 channels of bi-directional digital audio) on Ethercon XLR providing dual redundant back up of channels
Temperature Operating: 41 to 104°F / 5 to 40°C
Storage: -4 to 140°F / -20 to 60°C
Weight 27.8 lb / 12.6 kg
Packaging Info
Package Weight 27.65 lb
Box Dimensions (LxWxH) 21.7 x 20.2 x 10.3"
