User manual for the Midas PRO2 Live Audio Mixing System with 64 Input PRO2/CC/TP
The user manual for the Midas PRO2 Live Audio Mixing System with 64 Input PRO2/CC/TP provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Sound Reinforcement Mixers.

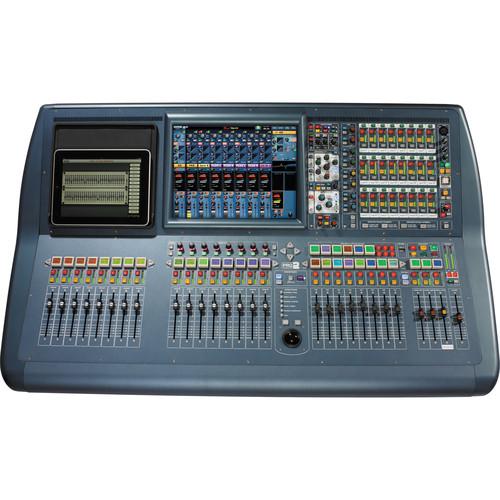

The touring package version of the Midas PRO2 Live Audio Mixing System is designed for live sound reinforcement such as in concert venues, theaters, houses of worship, broadcast, and more. The system is designed to work with any of the Midas digital I/O units. It will connect to the Midas DL251 stage box (sold separately) which features 48 Midas mic/line inputs, and 16 analog XLR outputs on stage, in addition to the mixer's 8 mic/line inputs and 16 XLR analogue outputs on the back of the console itself. Two AES3 inputs, three AES3 outputs, and dual-redundant power supplies, all supplied as standard, complete the hardware configuration. AES50 networking allows for up to 156 inputs and 164 outputs @ 96 kHz sample rate
In addition to the mixer's 56 primary input channels, the unit also features 8 aux returns, all of which feature 4-band Midas parametric EQ and insert points. These 8 aux returns can be used as returns for the PRO2's internal FX processors, or as additional mic channels, if sufficient mic inputs are available on the I/O hardware.
The console's 64 possible input channels may be routed to 27 phase-coherent mix buses which comprise 16 user-configurable buses (as mixes, subgroups, or mix minus groups) and eight matrix buses. The matrix buses can receive their sources from inputs or groups which allows them to be used as eight additional auxiliary (monitor mix and FX sends) for a total of 24 mixes (plus L, R & Mono) for monitor mixing. All buses can be linked as stereo pairs, except the mono bus. As with other Midas digital consoles, the audio paths can be routed to multiple destinations and the console format can be reconfigured live on a scene-by-scene basis.
The touring version of the console comes in a flight case.
If you own a Midas sound reinforcement mixers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Midas PRO2 Live Audio Mixing System with 64 Input PRO2/CC/TP in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Midas PRO2 Live Audio Mixing System with 64 Input PRO2/CC/TP:
| I/O || |
8x XLR outputs
8x XLR line outputs
4x XLR monitor output
2x XLR master outputs
2x XLR AES3 stereo outputs
2x XLR AES3 stereo inputs
1x XLR talk output
1x XLR talk input
| Expandability || Multiple 3U rack configurable I/O boxes (optional DL451 rack boxes) can be connected that house 24 x I/O slots in 8 x 8 wide blocks of: |
8x XLR mic/line inputs or
8x XLR line outputs or
8x Jack line in and 8x line out
4x stereo AES3 in and 4x (stereo) AES3 out
AES50 networking allows up to 156 inputs and 164 outputs @ 96 kHz sample rate
Multiple 6U rack splitters (optional DL431) house:
24x splitter mic/line inputs
2x 24 splitter outputs
1x 24 transformer isolated splitter outputs
| Processing || Input audio processing: |
56x dual slope high and low pass filters
56x 4-band parametric EQs with 3 shelf modes
56x 4-mode creative input compressors
56x input gates
Mix/output audio processing:
24x output 6-band parametric EQs with shelf and multiple high and low pass modes
24x 5-mode creative output dynamics
8x assignable Klark Teknik output GEQ
Assignable audio processing:
4x assignable stereo effects (each of these can be reconfigured to generate 4 further GEQs making a total of 24 available on the console)
| Mixing Control Assistance || 6x auto-mutes |
6x surface POPulation groups
8x VCA faders
8x VCA associated POPulation groups
176x MCA faders
176x flipped MCA POPulation groups
1000-scene snapshot automation
| Resilience || N+1 cable redundancy and dual redundant PSUs |
| Sampling Frequency || 96 kHz |
| Processor || 40-bit |
| Latency Delay || <2 ms input to master (no compensation) |
| Dynamic Range || 106 dB, 22 to 22,000 Hz (no pre-emphasis) |
| Maximum Voltage Gain || 80 dB inputs to subgroups and masters |
86 dB inputs to aux and matrix
| Crosstalk || At 1 kHz: -100 dB physically adjacent input channels |
At 10 kHz: -90 dB physically adjacent input channels
| Cut and Mix Transitions || Fader/pan cut off at 1 kHz: -100 dB |
Fader/pan cut off at 10 kHz: -100 dB
| Display Screen || 1 x 15" daylight-viewable color screen |
| LCD || 25 x RGB color |
| Faders || 20x touch-sensitive faders with 1024 steps of resolution |
| Encoders || 31x touch-sensitive with 512 steps |
| Power Requirements || 100 to 240 VAC, ±10%, 50 to 60 Hz |
| Operating Temperature || 41 to 113°F (+5 to 45°C) |
| Storage Temperature || -4 to 140°F (-20 to 60°C) |
| Dimensions (W x Depth) || Control Center: 46.4 x 27.8" (1179.6 x 730.3 mm) |
| Weight || Control Center: 88.2 lb (40.0 kg) |
| Package Weight || 320.6 lb |
| Box Dimensions (LxWxH) || 51.0 x 45.0 x 23.0" |
The user manual for the Midas PRO2 Live Audio Mixing System with 64 Input PRO2/CC/TP can be downloaded in .pdf
format if it did not come with your new sound reinforcement mixers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Midas users keep a unique electronic library
for Midas sound reinforcement mixerss,
where you can use our link to download the user manual for the Midas PRO2 Live Audio Mixing System with 64 Input PRO2/CC/TP.
The user manual lists all of the functions of the Midas PRO2 Live Audio Mixing System with 64 Input PRO2/CC/TP,
all the basic and advanced features and tells you how to use the sound reinforcement mixers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Midas service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Midas PRO2 Live Audio Mixing System with 64 Input PRO2/CC/TP. User manuals are also
available on the Midas website under Pro Audio - Live Sound - Sound Reinforcement Mixers.
Question and answer discussion forum concerning user instructions and resolving problems with the Midas PRO2 Live Audio Mixing System with 64 Input PRO2/CC/TP - no comments have been made yet - be the first to add a comment
