PDF-MANUALS.com | User manual here!
User manual

User manual Midas PRO3 Live Audio Mixing System with 64 Input PRO3/CC/TP

Operating instructions and pdf manual for use - Midas PRO3 Live Audio Mixing System with 64 Input PRO3/CC/TP User manual, User manual Midas PRO3 Live Audio Mixing System with 64 Input PRO3/CC/TP, Midas, PRO3, Live, Audio, Mixing, System, with, 64,


User manual for Midas PRO3 Live Audio Mixing System with 64 Input PRO3/CC/TP

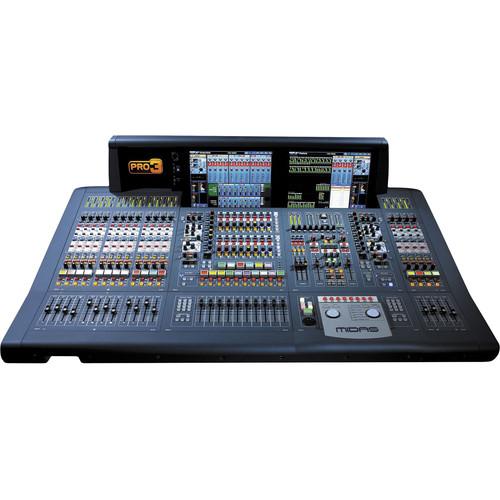

Midas PRO3 Live Audio Mixing System with 64 Input PRO3/CC/TP
  • Manufacturer: Midas
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Digital Mixers
  • Safety instructions
  • Startup and operation of the digital mixers
  • Tips for setting up your Midas
  • Settings and expert assistance
  • Contact Midas service
  • Troubleshooting
  • Warranty information
  • Price: 15 USD
Midas PRO3 Live Audio Mixing System with 64 Input PRO3/CC/TP Midas PRO3 Live Audio Mixing System with 64 Input PRO3/CC/TP
Click to enlarge image

We recommend checking out our discussion threads on the Midas PRO3 Live Audio Mixing System with 64 Input PRO3/CC/TP, which address similar problems with connecting and setting up Digital Mixers Midas.



User manual for the Midas PRO3 Live Audio Mixing System with 64 Input PRO3/CC/TP

The user manual for the Midas PRO3 Live Audio Mixing System with 64 Input PRO3/CC/TP provides necessary instructions for the proper use of the product Pro Audio - Recording - Digital Mixers.

The touring package version of the Midas PRO3 Live Audio Mixing System is designed for live sound reinforcement such as in concert venues, theaters, houses of worship, broadcast, tours, and more. The system requires the Pro3 version of the Midas DL371 modular, upgradeable, remote processing engine (sold separately) connected via Cat 5e cabling to a networked system of up to 11 discrete I/O devices, depending on the user's specific I/O requirements.

The package is designed to work with the DL351 modular stage box (sold separately), which features up to 56 Midas designed microphone inputs as well as eight analog XLR outputs. Additional I/O can be connected using any of the Midas DL series digital I/O units as well as the console's three rear panel card slots that can house a combination of Midas DL series I/O cards.

The default configuration features eight line inputs and eight analogue outputs, but the flexibility of the system allows for it to be quickly reconfigured with whatever connections are required. Redundant power supplies are included with every system as part of the PRO3's failure-tolerant architecture.

Additionally, the console features 8 auxiliary returns, all with 4-band parametric EQ and insert points. The auxiliary returns may be used as returns using the unit's eight internal multi-channel FX processors or as additional microphone input channels.

The console's 56 possible input channels may be routed to 27 phase coherent mix busses which comprise 16 user-configurable buses (as mixes, subgroups, or mix minus groups) and eight matrix buses. The matrix busses can receive their sources from inputs or groups which allows them to be used as eight additional auxiliary (monitor mix and FX sends) for a total of 24 mixes (plus L, R & Mono) for monitor mixing. All buses can be linked as stereo pairs, except the mono bus. As with other Midas digital consoles, the audio paths can be routed to multiple destinations and the console format can be reconfigured live on a scene-by-scene basis.

The flexibility of being able to add both additional I/O and DSP modules allows for the console to be upgraded to a full PRO9 configuration over time, with features like 88 input channels, eight multichannel FX processors and 35 mix busses. Increased flexibility can be added to the system by utilizing a Klark Teknik DN9650 Network Bridge digital format converter offering MADI and Dante connectivity.

The standard PRO3 live audio system is modular, allowing for some variations in physical placement and system size. This version of the console is designed for touring applications and comes with a professional flight/road case..
If you own a Midas digital mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Midas PRO3 Live Audio Mixing System with 64 Input PRO3/CC/TP in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Midas PRO3 Live Audio Mixing System with 64 Input PRO3/CC/TP:
I/O Maximum Input Capacity: 288
Maximum Output Capacity: 294
Primary Inputs: 56
Return Inputs: 8
Maximum simultaneous mix channels: 80
Number of groups/auxes: 16
Number of matrices: 16
Groups that provide mixes in monitor mode: 32
Mix buses: 35
VCAs: 10
POPulation groups: 6
Effects devices: 8
Maximum Klark Teknik DN370: 36
Configurable 'area B': yes

Stage I/O: DL351 (56 inputs and 8 outputs, configurable I/O)
Expandability Digital snake: dual redundant HyperMAC (192 x 192) Cat 53 digital snake included
Fiber-optic connections for optional maximum 547 yd (500 m) snake Additional I/O options:
DL251 Audio System I/O
DL351 Modular I/O
DL431 Mic Splitter
DL451 Modular I/O

I/O Card Options
DL441 analog input (mic module)
DL442 analog output module
DL443 analog jack I/O module
DL444 8 analog mic in and 8 analog line out module
DL452 AES/EBU input and output module
Option of 492' (150 m) fiber optic cable
Processor 32-bit
Reverb Hall, Plate, Chamber and Room, with five variations of each
Effects live, Non-Linear, Reverse, Delay, ADT, Multitap Echo, Sound-On-Sound and Infinite Room
Parameters Pre-delay: 0 to 990 ms
Pattern (density): Adjustable 0 to 9 increments (Grainy to Dense)
Level (depth): Adjustable 0 to 9 increments (Distant to Close)
Decay time: 0.1 to 18 seconds
Room size: 8 to 90 meters linear dimension
LF decay: Adjustable ±7 increments ref. 1 kHz decay time
HF decay: Adjustable ±7 increments ref. 1 kHz decay time
Controls Input mute: Removes audio feed from reverberation section
Reverb mute: Clears unwanted reverberant signal
Input level control: From 6 dB gain to infinite attenuation
Headroom indicator: 10-point LED display, 0 to -27 dB
Display: Simultaneous display of all parameter information, Parameter selection and store functions are verified by individual LEDs
Sampling Frequency 96 kHz
Latency Delay <2 ms input to master (no compensation)
Dynamic Range 110 dB, 22 to 22,000 Hz (no pre-emphasis)
Maximum Voltage Gain 80 dB inputs to subgroups and masters
86 dB inputs to aux and matrix
Crosstalk At 1 kHz: -100 dB physically adjacent input channel
At 10 kHz: -100 dB physically adjacent input channels
Cut and Mix Transitions Fader/pan cut off at 1 kHz: -100 dB
Fader/pan cut off at 10 kHz: -100 dB
Display Screen 2 x 15" daylight-viewable color screens
LCD 33 x RGB color
Faders 29x touch-sensitive faders with 1024 steps of resolution
Encoders 102x touch-sensitive with 512 steps
Power Requirements 100 to 240 VAC, 50 to 60 Hz
Operating Temperature 41 to 104°F (+5 to 40°C)
Storage Temperature -4 to 140° (-20 to 60°C)
Dimensions Control Center: 51.18 x 39.37 x 15.75" (1300 x 1000 x 400 mm)

Accessories
DL251 I/O Box (5U): 19.0 x 17.5 x 16.1" (48.3 x 44.5 x 41.0 mm)
DL351 I/O Box (7U): 19.0 x 24.5 x 16.1" (48.3 x 62.2 x 41.0 mm)
DL371 I/O Box (7U): 19.0 x 24.5 x 16.1" (48.3 x 62.2 x 41.0 mm)
DL451 I/O Box (3U): 19.0 x 10.5 x 16.1" (48.3 x 26.7 x 41.0 mm)
Weight Control center: 265 lb (120 kg)

Accessories
DL351: 110 lb (50 kg)
DL371: 66 lb (30 kg)
DL451: 29 lb (13 kg)

Total: 470 lb (213 kg)
Packaging Info
Package Weight 538.0 lb
Box Dimensions (LxWxH) 61.0 x 56.0 x 30.0"
The user manual for the Midas PRO3 Live Audio Mixing System with 64 Input PRO3/CC/TP can be downloaded in .pdf format if it did not come with your new digital mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Midas users keep a unique electronic library for Midas digital mixerss, where you can use our link to download the user manual for the Midas PRO3 Live Audio Mixing System with 64 Input PRO3/CC/TP.

The user manual lists all of the functions of the Midas PRO3 Live Audio Mixing System with 64 Input PRO3/CC/TP, all the basic and advanced features and tells you how to use the digital mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Midas service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Midas PRO3 Live Audio Mixing System with 64 Input PRO3/CC/TP. User manuals are also available on the Midas website under Pro Audio - Recording - Digital Mixers.



Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Midas PRO3 Live Audio Mixing System with 64 Input PRO3/CC/TP - no comments have been made yet - be the first to add a comment

Post new comment/question/response regarding the Midas PRO3 Live Audio Mixing System with 64 Input PRO3/CC/TP

Fields marked with * must be filled out.
Your name *:
E-mail :
Subject *:
Message text *:
Enter the code *:
(spam block)
"manual"
If you would like to receive a response to your comment, don’t forget to include your e-mail address. Your e-mail will not be displayed or otherwise used in any way.



Can't find what you're looking for? Try Google Search!





Current discussions
Most recently discussed products:

Dvr Manual - Speco Technologies 4-Channel Wall Mount DVR D4WVTP2TB
Posted by: Ashley Goodrick
2017-06-24 16:30:25

...
Manual - iJOY 10000mAh Power 10K Power Bank (Red) PWW-10K-RED
Posted by: sara
2017-06-24 12:17:47

Can you please send the manual for the ijoy power pack. I can't find the link to this ...
PhotoFast 64GB Memory Cable - Gigastone 64GB Memory Cable PF-MCU364GB-R
Posted by: Bruce
2017-06-24 08:48:19

No manual or instructions provided during purchase. Attempting t download via this site to no avail. Please help. I need manual ...
Blue blinking LED on front cover - BLU DIVA FLEX 2.4 32MB Feature Phone (Unlocked, Gray) T350 GRAY
Posted by: James J. Tury
2017-06-24 07:55:06

On the front cover towards the bottom there is a blue blinking LED that turns on sometimes. What is the purpose of this led? It is red when the phone is charging....
problems with my moultrie premise - Moultrie TRACE Premise Camera MCS-12639
Posted by: Keegan
2017-06-24 04:40:19

My camera was working great and now all it says is DLY and then counts down from 30 and doesn't take a picture... after the thirty seconds is up where it has battery life, it says 002Days. Why isn't it taking pictures anymore?...

Uploaded instruction manuals
Upload a link to an instruction manual for a depicted product here:

Link format "http://www.link2manual.com/manual.pdf"

Enter the code: "manual"






PDF-MANUALS.com - Community administered database of instructions for use and PDF user manuals
sitemap.txt
