User manual Middle Atlantic RLNK-SW815R-SP RackLink Power RLNK-SW815R-SP

Operating instructions and pdf manual for use - Middle Atlantic RLNK-SW815R-SP RackLink Power RLNK-SW815R-SP User manual, User manual Middle Atlantic RLNK-SW815R-SP RackLink Power RLNK-SW815R-SP, Middle, Atlantic, RLNK-SW815R-SP, RackLink, Power, R


User manual for Middle Atlantic RLNK-SW815R-SP RackLink Power RLNK-SW815R-SP

Middle Atlantic RLNK-SW815R-SP RackLink Power RLNK-SW815R-SP
  • Manufacturer: Middle Atlantic
  • Basic description and contents of package
  • Product classification: Pro Audio - Power Equipment - Power Distributors & Conditioners
  • Safety instructions
  • Startup and operation of the power distributors & conditioners
  • Tips for setting up your Middle Atlantic
  • Settings and expert assistance
  • Contact Middle Atlantic service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Middle Atlantic RLNK-SW815R-SP RackLink Power RLNK-SW815R-SP, which address similar problems with connecting and setting up Power Distributors & Conditioners Middle Atlantic.



User manual for the Middle Atlantic RLNK-SW815R-SP RackLink Power RLNK-SW815R-SP

The user manual for the Middle Atlantic RLNK-SW815R-SP RackLink Power RLNK-SW815R-SP provides necessary instructions for the proper use of the product Pro Audio - Power Equipment - Power Distributors & Conditioners.

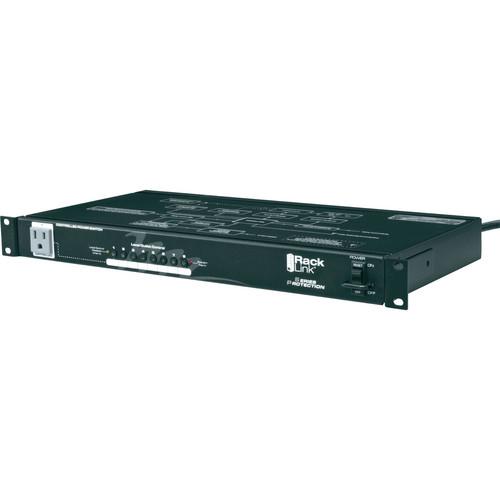

The RLNK-SW815R-SP RackLink Power Management System from Middle Atlantic is a practical Web-enabled power management system for A/V installations. It will monitor the power and temperature conditions of your system, log, and alert you of any irregularities. It will even reboot or take another action to correct problems on its own. It is easy to set up and operate, as it comes with an open architecture that integrates seamlessly with leading control systems. It is also compatible with your smart phone and various 'cloud' based services but is not dependent on them.
If you own a Middle Atlantic power distributors & conditioners and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Middle Atlantic RLNK-SW815R-SP RackLink Power RLNK-SW815R-SP in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Middle Atlantic RLNK-SW815R-SP RackLink Power RLNK-SW815R-SP:
Power
Connection Type 9.0' (2.7 m) SignalSAFE Cord (15A / 20A)
Line Voltage Nominal: 120 VAC
Current (Maximum) Peak Load: 15 A
Continuous Load: 12 A
Threshold Range Input Voltage Alert:
Low: 105 to 110 VAC
Load Current Alert:
Minimum: 0 A
Temperature Alert:
Minimum: 0°F
Surge Protection / Filtering
Surge Protection Series
Current Peak Impulse Current (8/20 micro seconds):
30,000 A, one time
19,500 A, two times within 5 minutes
7,000 A, ten times within 2 minutes
Maximum peak impulse current pulse as defined between line and neutral
Maximum multiple impulse current derated per spec
Protection Modes Line to Neutral
Response Time <1 nanosecond
Dissipation Surge Energy: 711 J (10 / 100 micro seconds)
Others EMI / RF Supression:
>20 dB Calculated Line to Neutral
100 kHz to 1 MHz (based on nominal impedance)
Event Response AutoPing No Response/Recovery: Email and/or Control Outlet and/or Dry Contact
Over / Under Temperature: Email and/or Control Outlet and/or Dry Contact
Over / Under Input Voltage: Email
Over / Under Load Current: Email
General Specifications
Number of Outlets No of Outlets: 8
Other Number of Dry Contact Pairs:
Total: 5
Controlled: 2
Form Factor Rackmount
Communication RS-232
TCP/IP
HTTP (integrated Web server)
Dimensions 1.75 x 19.25 x 9.00" (44.45 x 488.95 x 228.60 mm)
Packaging Info
Package Weight 10.8 lb
Box Dimensions (LxWxH) 22.0 x 13.0 x 4.0"
The user manual for the Middle Atlantic RLNK-SW815R-SP RackLink Power RLNK-SW815R-SP can be downloaded in .pdf format if it did not come with your new power distributors & conditioners, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Middle Atlantic users keep a unique electronic library for Middle Atlantic power distributors & conditionerss, where you can use our link to download the user manual for the Middle Atlantic RLNK-SW815R-SP RackLink Power RLNK-SW815R-SP.

The user manual lists all of the functions of the Middle Atlantic RLNK-SW815R-SP RackLink Power RLNK-SW815R-SP, all the basic and advanced features and tells you how to use the power distributors & conditioners. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Middle Atlantic service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Middle Atlantic RLNK-SW815R-SP RackLink Power RLNK-SW815R-SP. User manuals are also available on the Middle Atlantic website under Pro Audio - Power Equipment - Power Distributors & Conditioners.
