User manual MIPRO MA-808 Portable Sound System (Black) MA808PAB

Operating instructions and pdf manual for use - MIPRO MA-808 Portable Sound System (Black) MA808PAB User manual, User manual MIPRO MA-808 Portable Sound System (Black) MA808PAB, MIPRO, MA-808, Portable, Sound, System, Black, MA808PAB,


User manual for MIPRO MA-808 Portable Sound System (Black) MA808PAB

MIPRO MA-808 Portable Sound System (Black) MA808PAB
  • Manufacturer: MIPRO
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Portable PA Systems
  • Safety instructions
  • Startup and operation of the portable pa systems
  • Tips for setting up your MIPRO
  • Settings and expert assistance
  • Contact MIPRO service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the MIPRO MA-808 Portable Sound System (Black) MA808PAB, which address similar problems with connecting and setting up Portable PA Systems MIPRO.



User manual for the MIPRO MA-808 Portable Sound System (Black) MA808PAB

The user manual for the MIPRO MA-808 Portable Sound System (Black) MA808PAB provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Portable PA Systems.

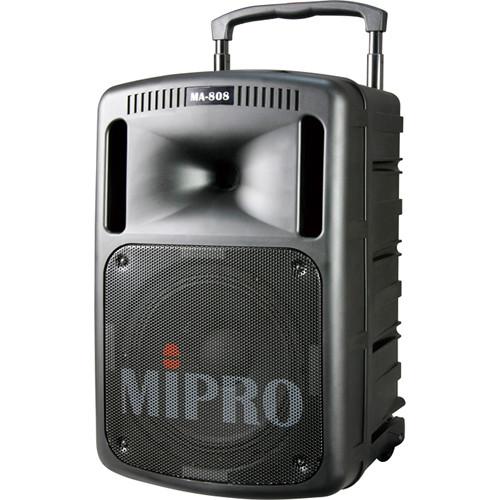

The black MA-808 Portable Sound System from Mipro is a modular, compact, and portable sound system package for music playback and voice reinforcement. The MA-808 Portable System can be powered by internal batteries and is housed in a rugged enclosure. The basic system is comprised of a 267W power amplifier, a control panel, and a rechargeable battery power supply. With the built-in rechargeable batteries, you can use the speaker for up to 6 hours. Alternatively, the MA-808 can be plugged into AC for continuous use. For wireless audio streaming, the MA-808 PA System comes with a built-in Bluetooth music player.
If you own a MIPRO portable pa systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the MIPRO MA-808 Portable Sound System (Black) MA808PAB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the MIPRO MA-808 Portable Sound System (Black) MA808PAB:
Specifications
Maximum Power Output 190 W; Class-D 77 W (max); Class AB
THD <1%
Frequency Response 50 Hz to 18 kHz
Treble Unit 1.5" (2.8 cm) titanium compression driver
Bass Unit 10.0" (25.4 cm) neodynium cone cover
CD Player Supports CDM-2 or DPM-3 module
Audio Inputs Balanced, unbalanced MIC and LINE-in RCA jack
Audio Output Unbalanced line RCA jack
Bluetooth Supported
Volume Control Manual or wireless via ACT-32HR
Storage Space for up to two handheld or bodypack transmitters
Charge Time Up to 8 hours (automatic charging management)
Standby Time Up to 6 hours
Battery Indicator 4-level indicator
Receiver Supports MRM-70B or MRM-72B
Microphones Wireless: ACT-32H/32HR/32HC handheld; ACT-32T/32TC bodypack
Wired: MM-107 wired dynamic microphone
Power Supply AC:
Built-in 100 to 240 VAC switching power supply

DC & Battery:
24 to 32 VDC, 12 V/4.5 AH rechargeable gel cell battery (2 x MB-70)or optional 2 x MB-80
Dimensions 14.2 x 22.0 x 13.8" (36.0 x 56.0 x 35.0 cm)
Weight 45.0 lb (20.5 kg) loaded
The user manual for the MIPRO MA-808 Portable Sound System (Black) MA808PAB can be downloaded in .pdf format if it did not come with your new portable pa systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other MIPRO users keep a unique electronic library for MIPRO portable pa systemss, where you can use our link to download the user manual for the MIPRO MA-808 Portable Sound System (Black) MA808PAB.

The user manual lists all of the functions of the MIPRO MA-808 Portable Sound System (Black) MA808PAB, all the basic and advanced features and tells you how to use the portable pa systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from MIPRO service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the MIPRO MA-808 Portable Sound System (Black) MA808PAB. User manuals are also available on the MIPRO website under Pro Audio - Live Sound - Portable PA Systems.
