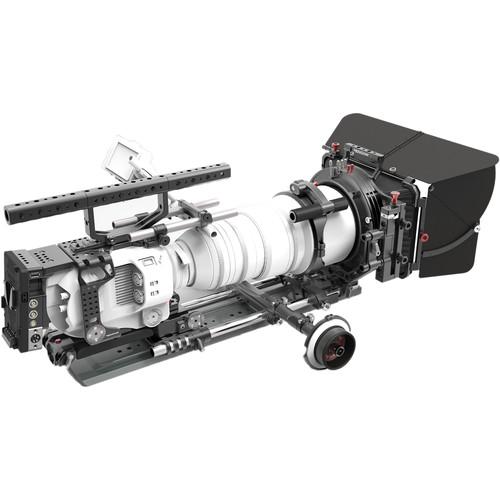

The Movcam FS7 19mm Cine Kit is a custom cinema camera rig for the Sony FS7 camera, complete with a dual-sided follow focus and 3-stage 5.65 x 5.65" matte box. It features a riser plate tailored to fit the bottom of the camera that docks into a V-lock compatible baseplate. In addition to a V-lock interface for quick-release attachment to VCT tripod plates, the baseplate adds front and rear 15mm rod clamps, a pair of ARRI standard rosettes, and an integrated shoulder pad. It can also be mounted onto an included 19mm rod bridge plate, which in turn can be mounted onto a 24" sliding dovetail plate. Also included in the kit is a form-fitting side bracket that adds 1/4"-20 threaded accessory mounting holes on the top and right side of the camera, and a rosette spacer.

For the top of the camera, a 15mm rod mount is provided along with an adapter with a parallel rod port for attaching and re-positioning the camera's EVF/monitor. A top plate screws into the top of the camera and provides a NATO rail for attaching an included long top handle, which adds additional 1/4"-20 threaded holes. Attaching to the rear of the camera is a V-lock battery plate and power distributor fits into the same slot as used by Sony's own V-mount battery pack. The pack provides a means to power your camera using a V-mount battery and provides several power outputs in varying voltages for powering optional accessories. Two 8"-long 15mm rods are included for use with the top rod clamps, while a pair of 18" long 19mm rods are provided for the bride plate. The 19mm rods support an included lens support, dual-sided studio follow focus with 0.8 pitch gear drive, and 3-stage swing-away matte box that features one fixed 5.65 x 5.65" filter tray and two rotating 5.65 x 5.65" filter trays. Additional kit components include a 19mm rod support for the bride plate and a lens carry handle for an ARRI Alura 45-250mm lens.

Please see the links below for more information on the components of this kit.
If you own a Movcam camcorder supports & rigs and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Movcam FS7 19mm Cine Kit MOV-303-2740 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Movcam FS7 19mm Cine Kit MOV-303-2740:
Specifications
    • Riser Plate for Sony FS7 Camera Rig
      Dimensions 6.8 x 2.6 x 1.7" (174.5 x 67.7 x 43.7 mm)
      Weight 0.3 lb (0.15 kg)
      Packaging Info
      Box Dimensions (LxWxH) 6.8 x 3.1 x 0.6"
    • Multi-BP Baseplate for FS7 Camera Rig
      Dimensions 10.2 x 3.8 x 1.4" (260.0 x 98.0 x 37.5 mm)
      Weight 1.3 lb (0.6 kg)
      Packaging Info
      Box Dimensions (LxWxH) 10.4 x 5.6 x 1.6"
    • Side Bracket for Sony FS7 Rig
      Dimensions 4.2 x 5.9 x 2.3" (107.5 x 150.5 x 60.5 mm)
      Weight 0.3 lb (0.15 kg)
    • Top Clamp for Sony FS7 Camera Rig
      Dimensions 3.1 x 1.5 x 1.4" (80 x 39 x 37.5 mm)
      Weight 0.1 lb (0.05 kg)
    • Rod Clamp for 15mm Systems
      Dimensions 3.1 x 1.6 x 0.8" (80 x 43 x 22 mm)
      Weight 0.1 lb (0.05 kg)
    • Power Distribution Box for Sony FS7 Camera
      Dimensions 5.4 x 3.7 x 3.5" (139 x 94 x 91 mm)
      Weight 1.2 lb (0.55 kg)
      Packaging Info
      Box Dimensions (LxWxH) 6.8 x 6.4 x 4.3"
    • Sliding Dovetail Plate for Movcam Systems (24")
      Compatibility Movcam 19 mm systems
      Dimensions 0.8 x 3.8 x 23.6" (21 x 96 x 600 mm)
      Weight 2.98 lb (1.35 kg)
    • 19mm Bridge Plate for Dovetail Plate
      Rod Diameter 19 mm
      Rod Length 18" (457 mm)
    • Top Plate for Movcam Sony FS7 Camera Rig
      Thread Size 1/4"-20
      Dimensions 5.2 x 2.4 x 0.6" (133 x 61 x 15.6 mm)
      Weight 0.22 lb (0.1 kg)
    • Top Handle with Extensions for Sony PMW-F5/-F55 4K Camcorders
      Packaging Info
      Box Dimensions (LxWxH) 15.2 x 4.4 x 2.2"
    • Studio Follow Focus
      Application For cine cameras such as the RED, ARRI Alexa, and Sony F65
      Gear Rotation Swing Arms:
      1x, 1.5x, and 2x speed ratios

      Pitch Gears:
      .5 with 6 mm face
      .6 with 6 mm face
      .8 with 6 mm face
      .8 with 12 mm face
      .8 with 25 mm face
      Rod Compatibility Standard-size 15 mm rods
      19 mm studio rods
      Packaging Info
      Box Dimensions (LxWxH) 16.5 x 8.9 x 7.2"
    • 19mm Lens Bridge
      Packaging Info
      Box Dimensions (LxWxH) 6.45 x 1.0 x 0.5"
    • Lens Carry Handle
      Compatibility Arri Alura 45-250 mm lens and similar lenses
    • MOV-301-0205 Mattebox MM5 (2 Rotating Filter Holder)
      Compatibility For lenses up to 14mm (35mm Academy)
      Mount 15mm mini swing-away bracket for 15mm rod support
      15:19mm bridge plate adapter for 19mm rod support
      Filter Tray One fixed and two rotating 5.65 x 5.65" filter holders (14.35 x 14.35 cm)
      Material 16:9 carbon fiber housing
      Dimensions 14 x 14 x 6" (35.5 x 35.5 x 15.2 cm)
      Weight 7 lbs (3.17 kg)
      Packaging Info
      Box Dimensions (LxWxH) 14.3 x 14.3 x 6.7"
    • 2 x
      15mm Aluminum Rod - 8" Long
      Material Aluminum
      Rod Diameter 15 mm
      Rod Length 8" (203.2 mm)
      Packaging Info
      Box Dimensions (LxWxH) 9.0 x 1.0 x 1.0"
    • 2 x
      19mm Stainless Steel Rod (18")
      Material Stainless steel
      Rod Diameter 19 mm
      Rod Length 18" (45.7 cm)
    The user manual for the Movcam FS7 19mm Cine Kit MOV-303-2740 can be downloaded in .pdf format if it did not come with your new camcorder supports & rigs, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Movcam users keep a unique electronic library for Movcam camcorder supports & rigss, where you can use our link to download the user manual for the Movcam FS7 19mm Cine Kit MOV-303-2740.
