User manual for the MustHD M701H 7" On-Camera Field Monitor with HDMI M701H

The user manual for the MustHD M701H 7" On-Camera Field Monitor with HDMI M701H provides necessary instructions for the proper use of the product Professional Video - Monitors - On Camera Monitors.

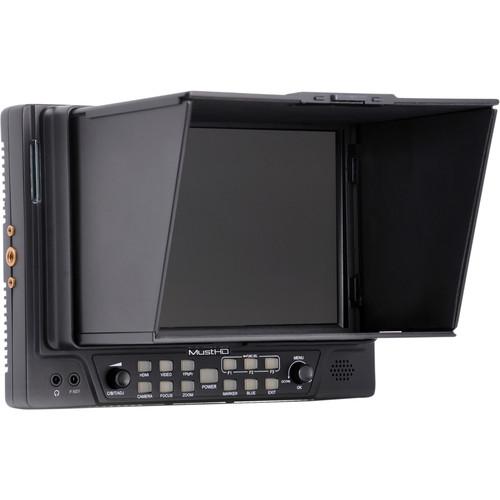

The M701H 7" On-Camera Field Monitor features an HDMI input with loop-through HDMI output. The loop-through output allows you to pass the signal through the monitor and onto other equipment without altering the original signal or requiring a splitter before the monitor. The monitor's IPS panel features 1280 x 800 resolution, 350 nit brightness, 800:1 contrast ration, and 178° vertical and horizontal viewing angles for good color and contrast rendition even when viewed from off center.

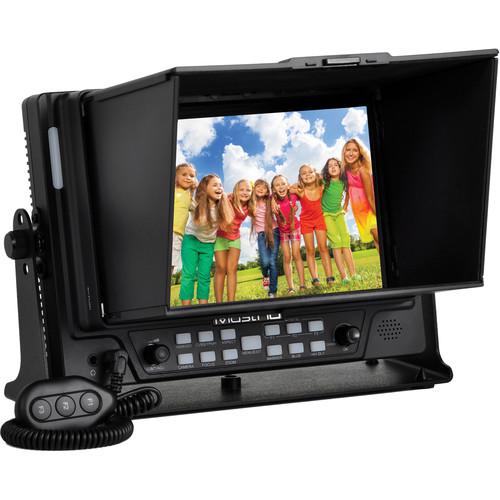

Image evaluation tools include Peaking, False Color, focus, and exposure aids, and the monitor features 1-to-1 pixel display that allows you to view your image in sections without introducing scaling artifacts. A remote cable that allows you to access and define the user assignable function keys is included for your convenience. The monitor comes with a Sony F970-type battery plate, and it incorporates a removable flip-out sun hood that can be used to shade the LCD screen when used in bright locations. The M701H incorporates four 1/4"-20 threaded mounting holes: one each on the top, bottom and sides for mounting the monitor.
If you own a MustHD on camera monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the MustHD M701H 7" On-Camera Field Monitor with HDMI M701H in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for MustHD M701H 7Download user manual for MustHD M701H 7" On-Camera Field Monitor with HDMI M701H
(PDF file, 13.61 MB)
Additional parameters of the MustHD M701H 7" On-Camera Field Monitor with HDMI M701H:
Specifications
    LCD Size 7" IPS panel
    Resolution 1280 x 800, support up to 1920 x 1080
    Pixel Pitch 0.039 x 0.0117 mm
    Color Depth 16.7M (8-bit)
    Viewing Angle H: 178° V: 178°
    Luminance 350 cd/㎡(Center)
    Contrast Ratio 800:1
    Display Area 149.76 x 93.60 mm
    Input Connectors 1 x Type A HDMI input
    1 x BNC composite (CVBS) input
    3 x BNC component input
    2 x BNC audio L/R channel input
    1 x RJ45 LAN (Ethernet)
    1 x 4-pin TALLY
    Output Connectors 1 x BNC composite (CVBS)
    3 x BNC component
    1 x Type A HDMI
    Input Signal Analog: YPbPr, composite
    HDMI: 480i/480p576i/576p/720p/1080i/1080p
    Audio Output Analog stereo
    Internal speaker (mixed mono)
    Mounting 4 x 1/4"-20 threaded mounting holes (top, bottom, each side)
    Power 6 - 20 VDC
    Power Connector 1 x Coax (12 VDC)
    1 x 4-pin XLR (12 VDC)
    Power Consumption 8 W (typical)
    Operating Temperature 32 to 113°F (0 to 45°C)
    Storage Temperature 14 to 140°F (-20 to 60°C)
    Dimensions 7.8 x 5.79 x 1.32" (198 x 147.5 x 33.6 mm)
    Weight 17 oz (482 g)
    Packaging Info
    Package Weight 3.3 lb
    Box Dimensions (LxWxH) 10.0 x 7.5 x 6.2"
    The user manual for the MustHD M701H 7" On-Camera Field Monitor with HDMI M701H can be downloaded in .pdf format if it did not come with your new on camera monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other MustHD users keep a unique electronic library for MustHD on camera monitorss, where you can use our link to download the user manual for the MustHD M701H 7" On-Camera Field Monitor with HDMI M701H.

    The user manual lists all of the functions of the MustHD M701H 7" On-Camera Field Monitor with HDMI M701H, all the basic and advanced features and tells you how to use the on camera monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from MustHD service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the MustHD M701H 7" On-Camera Field Monitor with HDMI M701H. User manuals are also available on the MustHD website under Professional Video - Monitors - On Camera Monitors.
