User manual MuxLab 500049 Stereo AV/IR Pass-Thru Balun (Female) 500049

Operating instructions and pdf manual for use - MuxLab 500049 Stereo AV/IR Pass-Thru Balun (Female) 500049 User manual, User manual MuxLab 500049 Stereo AV/IR Pass-Thru Balun (Female) 500049, MuxLab, 500049, Stereo, AV/IR, Pass-Thru, Balun, Female,


User manual for MuxLab 500049 Stereo AV/IR Pass-Thru Balun (Female) 500049

MuxLab 500049 Stereo AV/IR Pass-Thru Balun (Female) 500049
  • Manufacturer: MuxLab
  • Basic description and contents of package
  • Product classification: Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters
  • Safety instructions
  • Startup and operation of the video extenders & repeaters
  • Tips for setting up your MuxLab
  • Settings and expert assistance
  • Contact MuxLab service
  • Troubleshooting
  • Warranty information
  • Price: 52 USD
We recommend checking out our discussion threads on the MuxLab 500049 Stereo AV/IR Pass-Thru Balun (Female) 500049, which address similar problems with connecting and setting up Video Extenders & Repeaters MuxLab.



User manual for the MuxLab 500049 Stereo AV/IR Pass-Thru Balun (Female) 500049

The user manual for the MuxLab 500049 Stereo AV/IR Pass-Thru Balun (Female) 500049 provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters.

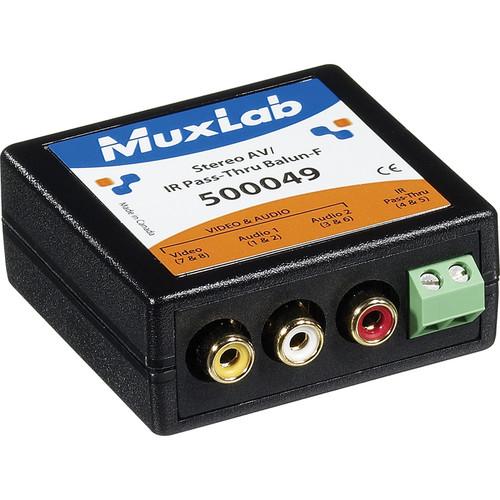

The MuxLab 500049 Stereo AV/IR Pass-Thru Balun (Female) allows transmission of a composite video, a stereo audio, and an IR emitter signal in a point-to-point configuration using a Cat5E/6 UTP cable. It supports transmission of composite video signal at a maximum distance of up to 2200' (670m) and audio signal up to 3250' (990m).
If you own a MuxLab video extenders & repeaters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the MuxLab 500049 Stereo AV/IR Pass-Thru Balun (Female) 500049 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the MuxLab 500049 Stereo AV/IR Pass-Thru Balun (Female) 500049:
Standards Composite video (NTSC, PAL, SECAM). Line level analog audio. IR remote
Transmission Transparent to the user
Bandwidth Video: DC to 8 MHz
Analog audio: 20 Hz to 20 KHz
Impedance Video: 75 ohms
Audio: 600 ohms min
Maximum Input 1.1Vp-p
Insertion Loss Video: Less than 2 dB per pair over the frequency range from DC to 6 MHz
Audio: Less than 2 dB per pair over the frequency range
Return Loss Greater than 15 dB over the frequency range
Common Mode Rejection Greater than 40 dB over the frequency range
Maximum Distance Video Cat5e/6 UTP: 2,200' (671m)
Audio Cat5e/6 UTP: 3,250' (1 km)
IR: Please refer to IR vendor specs
Pins Video (Yellow): pins 7 [R] & 8 [T]
IR Pass-Thru: pins 4 [R] & 5 [T]
Audio 1 (White): pins 1 [R] & 2 [T]
Audio 2 (Red): pins 3 [R] & 6 [T]
(Reverse Polarity Sensitive)
Cable UTP: 24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz

Maximum capacitance: 20 pf/foot

Attenuation: 6.6 dB/1,000' (304.8m) at 1 MHz
Connectors 3 RCA-F connectors: Video (yellow) & stereo audio (red, white)
1 two-pole terminal block for IR emitter pass-through
1 RJ45 for Cat5
Operating Temperature 32 ~ 131°F (0 ~ 55°C)
Enclosure Fire retardant plastic
Dimensions 2.4 x 2.3 x 1" (6.1 x 5.7 x 2.5cm)
Weight 3.1 oz (89g)
Packaging Info
Package Weight 0.2 lb
Box Dimensions (LxWxH) 8.2 x 6.0 x 1.0"
