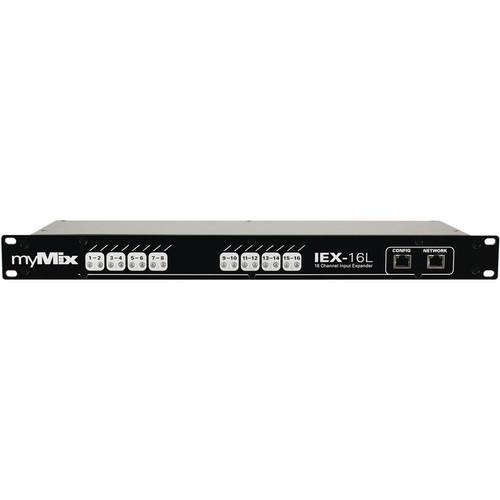

The myMix IEX-16L-A 16-Channel Input Expander comes with two DB25 connectors and allows connection of up to 16 balanced line-level signals that can be fed from devices such as mixing consoles or external microphone pre-amps. The IEX16L-A comes with two 8-channel ADAT inputs that can be activated individually. This allows usage of 16 line level sources or 8 line level sources and 8 ADAT inputs, or 16 ADAT inputs on a single IEX-16L-A expander.
Multiple IEX-16L expanders can be used in a myMix network. The IEX-16L-A can be configured using any myMix device on the network or the optional myMix CONTROL software, including input channel naming and stereo linking. The configuration is stored automatically in the IEX-16L-A. The optional myMix CONTROL software allows uploading/downloading of complete settings for the IEX-16L-A expander. The expander can be locked by connecting a myMix to the CONFIG port, or via the myMix CONTROL. The CONFIG ports provide all the data but no audio. It can also be used to connect the myMix CONTROL network interface (myMIx PLUG).
|
If you own a myMix personal monitoring and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the myMix IEX-16L-A 16-Channel Input Expander for myMix IEX-16L-A in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the myMix IEX-16L-A 16-Channel Input Expander for myMix IEX-16L-A:
| Inputs | 16 Analog line level
ADAT: 2 x 8 channels | | Impedance | 20 Ω, balanced (input) | | Level | + 20 dBu (maximum input) | | Sampling Rate | 44.1/48 kHz | | Gain Adjustment Range | 0, +6, +12 dB (input) | | Frequency Response | >104 dB | | THD + N | <0.022% | | Network Type | 100 Mb/s fast Ethernet | | Cabling Type | CAT5/CAT5e | | Network Connections | 2 RJ45, (1 network, 1 myMix) | | Network Switch | Unmanaged 100BASE-TX, full-duplex for 16 channel maximum
For >16 Channel: Managed 100BASE-TX, IGMP snooping (v2) | | Audio Channel Limit | 2 x Maximum of multicast groups handled by the switch (on network) | | Conversion | AD/DA: 24-bit, 48 kHz | | Connectors | Input: 2 x DB25, 2 x TOSLINK | | Dimensions (W x H x D) | 19 x 1.75 x 5" (483 x 44 x 146 mm) | | Weight | 6 lb (2.7 kg) | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 22.0 x 10.0 x 3.0" | |
