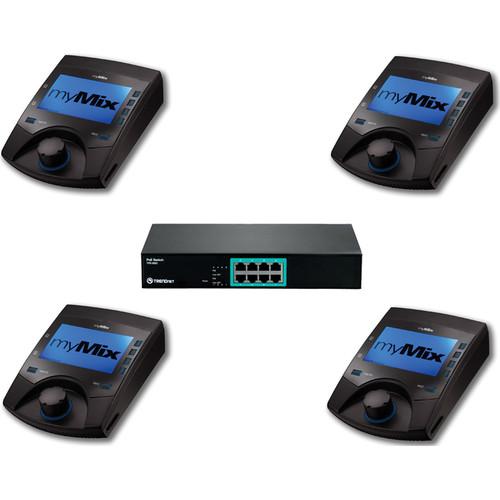

The Mix Pack 4 from myMix contains tools to provide individual stereo mixes and multi-track recording for four musicians. Four myMix units provide eight inputs to connect and label microphone (phantom power available) and line level sources. All devices get connected with a CAT5 cable (not included) to the TPE-S80 POE switch. To share the input signals with a console, the signal from DI-boxes can be split for line level and use y-cable (or a mic split box) for microphones. If more than four people are on stage, you can use a 4-channel headphone amplifier and share a mix. The TPE-S80 provides power for 8 myMix units, so four myMixes or a combination of three myMixes and an IEX16 input expander can be added to have more individual mixes and more audio channels available.
If you own a myMix networked audio systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the myMix Mix Pack 4 MIXPACK4 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the myMix Mix Pack 4 MIXPACK4:
Specifications
    • 4 x
      Personal Monitor Mixing & Multitrack Recording System
      Inputs
      Impedance 2 kΩ / 20 kΩ (microphone / line)
      Gain Input: Variable from +4 to +60 dB (microphone), Variable from -16 to +40 dB (line)
      Input Level +14 dBu / +34 dBu (microphone / line) maximum
      Frequency Response 20 Hz to 20 kHz (+0 dB, -1 dB)
      Outputs
      Impedance 75 Ω balanced / to drive >16 Ω (line / headphone outputs)
      Output Level Maximum: +21 dBu (line)
      Signal to Noise Ratio >104 dB
      THD + N <0.022% (microphone input to line out)
      Crosstalk <-80 dB (L to R)
      Mute >100 dB
      Network Type Fast Ethernet 100 Mb/s
      Network Cable Type CAT5
      Latency <1 ms (network)
      Conversion 24-bit (AD/DA)
      Recording Media SD or SDHC card
      Recording Format WAV file, 24-bit, 48 kHz sampling rate
      Inputs Microphone: Balanced XLR (1 gnd, 2 pos, 3 neg)
      Line: Balanced 1/4" jack (tip pos, ring neg, sleeve gnd)
      Outputs Line: Balanced 1/4" jack (tip pos, ring neg, sleeve gnd)
      Headphone: 3.5 mm stereo jack
      LAN Port RJ45
      Dimensions (W x H x D) 5.3 x 6.7 x 2.4" (134 x 171 x 60 mm) (excluding mic stand adapter)
      Weight 1.1 lb (0.5 kg) (excluding mic stand adapter)
      Packaging Info
      Box Dimensions (LxWxH) 12.0 x 6.0 x 4.0"
    • TPE-S80 8 Port 10/100Mbps PoE Switch
      Performance
      Standards IEEE 802.3 10Base-T
      IEEE 802.3u 100Base-TX
      IEEE 802.3af Power over Ethernet
      IEEE 802.3x Flow Control
      Ports 8 x 10/100Mbps Auto-MDIX PoE Ports
      Power Switch On/Off power switch
      Speed Ethernet: 10/20Mbps (half/full duplex)
      Fast Ethernet: 100/200Mbps (half/full duplex)
      Data Buffer 512Kbits
      MAC Address Table Size 1K MAC entries
      Switching Method 1.6Gbps Switching Fabric
      Power Over Ethernet Up to 15.4 watts per port; PD classification
      Polymer switch for short protection
      PoE: pin 3,6 for power+ and pin 1,2 for power-
      VLANs None
      Management None
      General
      Form Factor Desktop
      Diagnostic LEDs Power, Link/Activity, PoE Act/Status
      Environmental Requirements Operating Temperature: 32-113°F (0-45°C)
      Storage Temperature: 14-158°F (-10-70°C)
      Humidity: 10-95% (non-condensing)
      Power Requirements 100~240VAC 50/60Hz, internal universal switching power
      Power Consumption 6 Watts max. (no Power Device (PD) connected)
      132 Watts max. (8 x 15.4 watts PoE devices connected)
      Certifications CE, FCC
      Dimensions (WxHxD) 10.5 x 1.73 x 6.3" / 266 x 44 x 160 mm
      Weight 3.1 lb / 1.4 kg
      Packaging Info
      Box Dimensions (LxWxH) 12.0 x 9.8 x 2.9"
