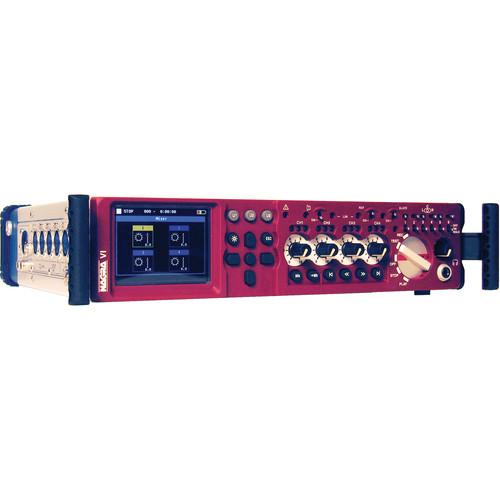

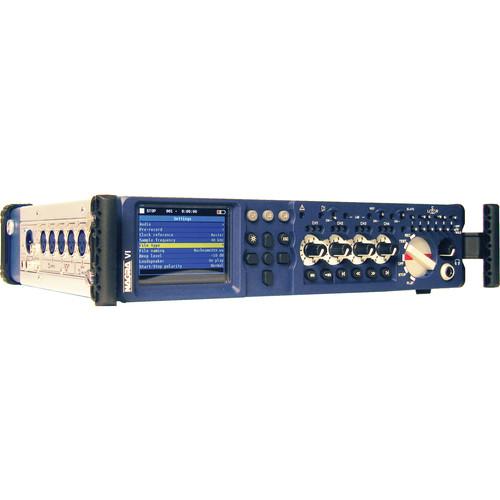

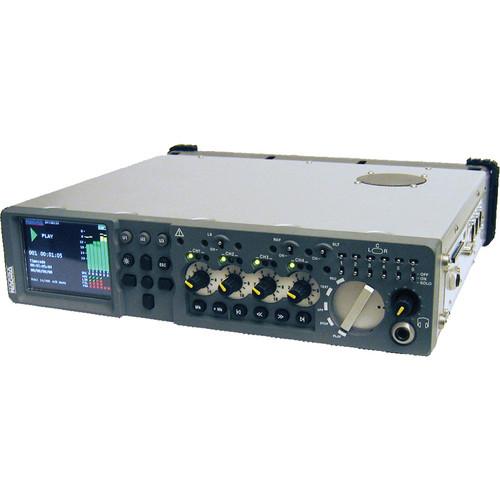

The burgundy red Nagra VI 8-Channel Digital Recorder is a multi-track recorder used to capture professional-grade audio in various applications such as concerts, outdoor movie sets, and live shows.
If you own a portable digital recorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Nagra Nagra VI 8-Channel Digital Recorder (Burgundy Red) 7032002 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Nagra Nagra VI 8-Channel Digital Recorder (Burgundy Red) 7032002:
Recording
Data Storage 120 GB internal hard disk
Removable Media Compact Flash type I / II (hot swappable)
Disk Format FAT 32
Recording Method Linear digital PCM
File Type 16 / 24 bit Broadcast Wave File BWF (WAV) with iXML, AES 31 compatible
A/D and D/A Conversion 24 Bit Sigma Delta
Tracks 8 individual
Sampling Rate 44.1, 48, 88.2, 96, 176.4 and 192 kHz (with 0.1% pull up / down)
Recording Capacity 15 minutes of 8 track 24 bit 48 kHz per GB of disk / memory
Mono / Polyphonic Selectable
Pre-Record Buffer Up to 20 seconds @ 48 kHz 24-bit on 8 tracks
Max 10 seconds @ 96 kHz 24-bit 48 kHz 24-bit on 8 tracks
Display 3.5" color display
Level Meters On color display
LED for microphone inputs
Inputs
Digital 2 x XLR AES-3 shared with analogue inputs 5 + 6
Analog Inputs 4 x symmetrical XLR Microphone (dynamic, +48 V phantom) / line
Microphone Input 2.8, 10 and 30 mV/Pa selectable
Limiter Selectable on microphone inputs, individual or in pairs
Active at -8 dBFS, max +36 dB for -2 dBFS
Line Input Sensitivity Adjustable from -6 dBm up to +24 dBm for 0 dBFS recording
THD At 1 kHz: <0.1% Mic, <0.01% line (measured on AES out)
Frequency Response Mic, 10 Hz - 48 kHz ± 0.5 dB, Line ± 0.2 dB (measured on AES out)
Input Noise With Condenser Mic: 0.88 µV (-119 dBm)
With Dynamic Mic: 4 dB (measured ASA "A" loaded 200 Ω
Signal to Noise Ratio >114 dB
Input Level Adjustment Range: 50 dB mic and from -6 to +24 dB line
Input Filters LFA (with vortex filtering)
Slate Microphone Electret behind the front panel
Outputs
Analog Outputs Line: 2 x XLR 4.4 V max (+15 dBm)
Digital Output XLR AES-3 (24 bit or 16 bit dithered)
Headphones 2 x Stereo 1/4" (6.3mm) jack 50 Ω
Speaker 1 W
Other
USB Host USB 2.0 connector type "A"
USB 2.0 connector type "B"
Time Code I/O 5-pin LEMO (SMPTE / EBU)
Decoder M/S: Switchable
Word Clock 9-pole "D" type connector (in / out)
Dither Menu selectable 24/16 bits on inputs and/or outputs
General
Power Supply Lithium-Ion, or external 9 to 16 V (XLR 4 pole)
Power Consumption Approximately 10 W
Charge Time 3 hours (with supplied lithium-ion pack)
External Power Out: 2 Hirose 12 V (max 1 A)
Operating Temperature From -4 to 32°F (-20 to +60°C) without internal hard disk
From 32 to 122°F (0 to +50°C) with hard disk installed
Relative Humidity From 10 to 99% (non condensing)
Dimensions (W x H x D) 12 x 3 x 11" (310 x 74 x 285 mm)
Weight 8.3 lb (3.8 kg)
