User manual NEC 21" Grayscale 3-Megapixel Medical Diagnostic MDG3-BNDL1

Operating instructions and pdf manual for use - NEC 21" Grayscale 3-Megapixel Medical Diagnostic MDG3-BNDL1 User manual, User manual NEC 21" Grayscale 3-Megapixel Medical Diagnostic MDG3-BNDL1, NEC, 21, Grayscale, 3-Megapixel, Medical, Diagnostic,


User manual for NEC 21" Grayscale 3-Megapixel Medical Diagnostic MDG3-BNDL1

NEC 21
  • Manufacturer: NEC
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Medical Diagnostic Displays
  • Safety instructions
  • Startup and operation of the medical diagnostic displays
  • Tips for setting up your NEC
  • Settings and expert assistance
  • Contact NEC service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the NEC 21" Grayscale 3-Megapixel Medical Diagnostic MDG3-BNDL1, which address similar problems with connecting and setting up Medical Diagnostic Displays NEC.



User manual for the NEC 21" Grayscale 3-Megapixel Medical Diagnostic MDG3-BNDL1

The user manual for the NEC 21" Grayscale 3-Megapixel Medical Diagnostic MDG3-BNDL1 provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Medical Diagnostic Displays.

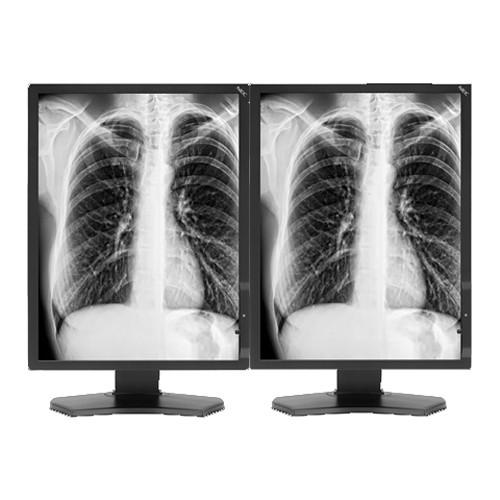

The 21" Grayscale 3-Megapixel Medical Diagnostic Monitors with Graphics Card (2) is designed for healthcare professionals viewing medical imaging and PACS. The two 3.0 Mp IPS models feature out-of-the-box DICOM calibration and uniformity control for accurate imaging across its screen. Imaging specs include a 2048 x 1536 native resolution, 900:1 contrast ratio, and calibrated brightness of 400cd/m2.
If you own a NEC medical diagnostic displays and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEC 21" Grayscale 3-Megapixel Medical Diagnostic MDG3-BNDL1 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NEC 21Download user manual for NEC 21" Grayscale 3-Megapixel Medical Diagnostic MDG3-BNDL1
(PDF file, 4.48 MB)
Additional parameters of the NEC 21" Grayscale 3-Megapixel Medical Diagnostic MDG3-BNDL1:
Specifications
    Panel/Display
    Type Medical-grade diagnostic display
    Viewable Size 21.3"
    Brightness Calibrated: 400cd/m2
    Max: 1450cd/m2
    Contrast Ratio 900:1
    Viewing Angle 176° vertical, 176° horizontal (88U/88D/88L/88R) @ CR > 10
    Pixel Dot Pitch 0.21mm
    Pixels Per Inch Native Resolution: 120 ppi
    Response Time 12 ms
    Colors Supported Type: Grayscale
    1024 levels of gray out of a palette of 48961
    Signal
    Frequency Horizontal: 31.5 - 99.4 kHz / 126.3 kHz
    Vertical: 50 - 85 Hz / 30 Hz
    Resolution 2048 x 1536
    Connections DVI-D
    DisplayPort
    Speakers N/A
    Mount VESA 100 x 100mm
    General
    Tilt / Swivel / Pivot Yes
    Calibration DICOM GSDF calibrated GammaCompMD QA software
    Stand Height-adjustable stand
    2 x USB hub (1x up, 2x down)
    Certifications C-UL, EN 60601-1, ISO 9241-307, ISO 13406-2, US Mercury Regulations, ECMA-370, SB50 (California), WEEE RoHS, PC Recycle, CCC, CEL Grade 1, AAPM-TG18, DIN V 6868-57, FDA 501(k)
    Power Consumption On: 105 W
    Power Savings mode: < 2 W
    Environmental Requirements Operating temperature: 41 to 95° F (5 to 35° C)
    Operating humidity: 30 to 80%
    Operating altitude: 9842' (3000 m)
    Storage temperature: 14 to 140° F (-10 to 60° C)
    Storage humidity: 10 to 85%
    Storage altitude: 40,000' (12,192 m)
    Dimensions (W x H x D) With stand: 18.4 x 14.9 - 20.8 x 9.0" (46.8 x 37.8 - 52.8 x 22.8 cm)
    Without stand: 18.4 x 14.2 x 4.1" (46.8 x 36.2 x 10.4 cm)
    Weight With stand: 23.6 lb (10.7 kg)
    Without stand: 16.5 lb (7.5 kg)
    The user manual for the NEC 21" Grayscale 3-Megapixel Medical Diagnostic MDG3-BNDL1 can be downloaded in .pdf format if it did not come with your new medical diagnostic displays, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NEC users keep a unique electronic library for NEC medical diagnostic displayss, where you can use our link to download the user manual for the NEC 21" Grayscale 3-Megapixel Medical Diagnostic MDG3-BNDL1.

    The user manual lists all of the functions of the NEC 21" Grayscale 3-Megapixel Medical Diagnostic MDG3-BNDL1, all the basic and advanced features and tells you how to use the medical diagnostic displays. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NEC service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NEC 21" Grayscale 3-Megapixel Medical Diagnostic MDG3-BNDL1. User manuals are also available on the NEC website under Computers & Solutions - Monitors & Displays - Medical Diagnostic Displays.
