User manual NEC E203Wi-BK 20" Widescreen LED Backlit IPS E203WI-BK

Operating instructions and pdf manual for use - NEC E203Wi-BK 20" Widescreen LED Backlit IPS E203WI-BK User manual, User manual NEC E203Wi-BK 20" Widescreen LED Backlit IPS E203WI-BK, NEC, E203Wi-BK, 20, Widescreen, LED, Backlit, IPS, E203WI-BK,


User manual for NEC E203Wi-BK 20" Widescreen LED Backlit IPS E203WI-BK

NEC E203Wi-BK 20
  • Manufacturer: NEC
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your NEC
  • Settings and expert assistance
  • Contact NEC service
  • Troubleshooting
  • Warranty information
  • Price: 173 USD

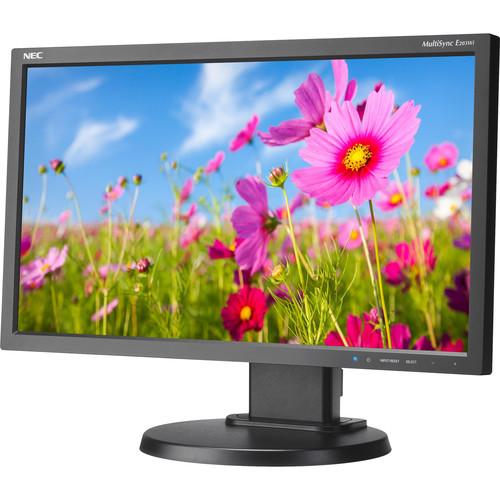

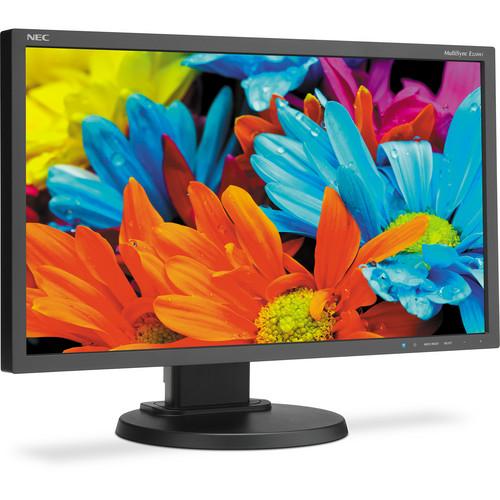

NEC E203Wi-BK 20 NEC E203Wi-BK 20
Click to enlarge image

We recommend checking out our discussion threads on the NEC E203Wi-BK 20" Widescreen LED Backlit IPS E203WI-BK, which address similar problems with connecting and setting up Computer Monitors NEC.



User manual for the NEC E203Wi-BK 20" Widescreen LED Backlit IPS E203WI-BK

The user manual for the NEC E203Wi-BK 20" Widescreen LED Backlit IPS E203WI-BK provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

The IPS panel found on the E203Wi-BK 20" Widescreen LED Backlit Monitor from NEC supports wide 178° horizontal and vertical viewing angles making it easy to view this monitor from nearly any perspective. Setup and configuration is simple with DisplayPort, DVI-D, and VGA connectors allowing the monitor to be used in conjunction with a variety of computer configurations. Once configured, you can take advantage of a 1600 x 900 resolution, 1,000:1 contrast ratio, a 14 ms response time, and support for over 16.7 million colors producing a vivid, accurate picture. This monitor can also be mounted to the wall as it features a 100 x 100mm VESA hole configuration making it compatible with a variety of mounts.
If you own a NEC computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEC E203Wi-BK 20" Widescreen LED Backlit IPS E203WI-BK in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NEC E203Wi-BK 20Download user manual for NEC E203Wi-BK 20" Widescreen LED Backlit IPS E203WI-BK
(PDF file, 2.97 MB)
Additional parameters of the NEC E203Wi-BK 20" Widescreen LED Backlit IPS E203WI-BK:
Specifications
Display
Panel Technology IPS
Viewable Image Area 20" / 50.8 cm
Aspect Ratio 16:9
Native Resolution 1600 x 900
Pixel Pitch 0.28 mm
Pixels Per Inch 96 @ native resolution
Backlight Type W-LED
Brightness 250 cd/m²
Contrast Ratio 1000:1
Viewing Angles (H/V) 178°/178°
(89U/89D/89L/89R) @ CR>10
Response Time 14 ms
Displayable Colors More than 16.7 million
Synchronization Range
Horizontal (Analog/Digital) 31.5-81.1 kHz
Vertical 56-76 Hz
Input Signal
Video Analog RGB 0.7 Vp-p / 75 ohms
Sync Separate Sync: TTL Level (Positive/Negative)
Composite Sync: TTL Level (Positive/Negative)
Composite Sync on Green: (0.3 Vp-p negative 0.7 Vp-p positive)
Input Connectors
Connectors 1 x DisplayPort
1 x DVI-D
1 x VGA 15-pin D-Sub
Power Consumption
On 17 W
Power Savings Mode 0.35 W
Other Specifications
VESA Configuration 100 x 100 mm
Temperature & Humidity Operating Temperature: 41 to 95°F / 5 to 35°C
Operating Humidity: 20 to 80%
Storage Temperature: 14 to 140°F / -10 to 60°C
Storage Humidity: 10 to 85%
Altitude Operating Altitude: 6,562 ft / 2,000 m
Storage Altitude: 40,000 ft / 12,192 m
Environmental Compliance ENERGY STAR 6.0
TCO 6.0
RoHS
Dimensions With Stand: 18.3 x 13.8-18.1 x 8.4" / 466.0 x 350.0-460.0 x 213.9 mm
Without Stand: 18.3 x 10.8 x 2.1" / 466.0 x 273.2 x 53.3 mm
Weight With Stand: 10.8 lb / 4.9 kg
Without Stand: 6.4 lb / 2.9 kg
Packaging Info
Package Weight 14.5 lb
Box Dimensions (LxWxH) 24.6 x 13.7 x 8.8"
The user manual for the NEC E203Wi-BK 20" Widescreen LED Backlit IPS E203WI-BK can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NEC users keep a unique electronic library for NEC computer monitorss, where you can use our link to download the user manual for the NEC E203Wi-BK 20" Widescreen LED Backlit IPS E203WI-BK.

The user manual lists all of the functions of the NEC E203Wi-BK 20" Widescreen LED Backlit IPS E203WI-BK, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NEC service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NEC E203Wi-BK 20" Widescreen LED Backlit IPS E203WI-BK. User manuals are also available on the NEC website under Computers & Solutions - Monitors & Displays - Computer Monitors.
