User manual NEC NP-PA622U 6200 Lumen WUXGA Professional NP-PA622U

Operating instructions and pdf manual for use - NEC NP-PA622U 6200 Lumen WUXGA Professional NP-PA622U User manual, User manual NEC NP-PA622U 6200 Lumen WUXGA Professional NP-PA622U, NEC, NP-PA622U, 6200, Lumen, WUXGA, Professional, NP-PA622U,


User manual for NEC NP-PA622U 6200 Lumen WUXGA Professional NP-PA622U

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
NEC NP-PA622U 6200 Lumen WUXGA Professional NP-PA622U
  • Manufacturer: NEC
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your NEC
  • Settings and expert assistance
  • Contact NEC service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the NEC NP-PA622U 6200 Lumen WUXGA Professional NP-PA622U, which address similar problems with connecting and setting up Multimedia Projectors NEC.



User manual for the NEC NP-PA622U 6200 Lumen WUXGA Professional NP-PA622U

The user manual for the NEC NP-PA622U 6200 Lumen WUXGA Professional NP-PA622U provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

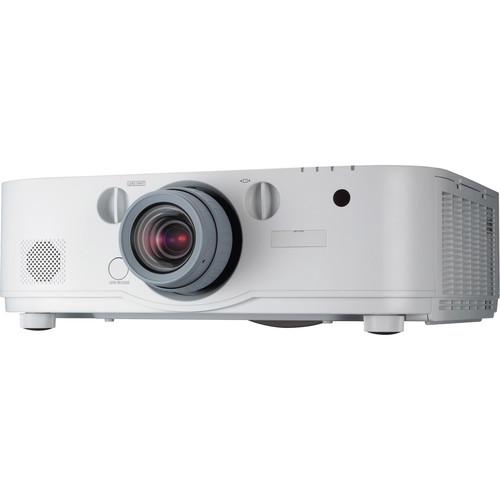

Enjoy high-performance and high-resolution images with the NEC NP-PA622U 6200 Lumen WUXGA Professional Installation LCD Projector. This professional projector features 6200 lumens of brightness and a 6,000:1 contrast ratio with auto iris. Additionally, the NP-PA622U sports a WUXGA 1920 x 1200 native resolution for viewing detailed high-definition content. This projector is powered by an LCD display system, and the lamp features a long life of up to 4,000 hours. You can use the NP-PA622U to project up to a 500" diagonal screen size, making it suitable for large venues. Furthermore, the NP-PA622U is compatible with a variety of interchangeable NEC lenses.

With VGA, DisplayPort, BNC component video, and two HDMI inputs, this projector is well equipped for a wide range of external video sources. As an added convenience, a VGA cable is included. An HDMI output is also available, which can be used to daisy chain up to 4 projectors. The NP-PA622U is also equipped with an Ethernet port and supports HDBaseT connectivity. Other features include a 0.11W standby power consumption level, optional ceiling mount compatibility, and 64-step image magnification.
If you own a NEC multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEC NP-PA622U 6200 Lumen WUXGA Professional NP-PA622U in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NEC NP-PA622U 6200 Lumen WUXGA Professional NP-PA622UDownload user manual for NEC NP-PA622U 6200 Lumen WUXGA Professional NP-PA622U
(PDF file, 8.87 MB)
Additional parameters of the NEC NP-PA622U 6200 Lumen WUXGA Professional NP-PA622U:
Image Display
Display System 1-Chip 0.76" / 1.93 cm Micro Lens Array (MLA) LCD
Native Resolution WUXGA - 1920 x 1200
Supported Resolutions WUXGA - 1920 x 1200
UXGA - 1600 x 1200
SXGA+ - 1400 x 1050
SXGA - 1280 x 1024
XGA - 1024 x 768
SVGA - 800 x 600
VGA - 640 x 480
Format NTSC 4.43
PAL 60, M, N
SECAM
HDTV Compatibility 480i
480p
576i
576p
720p
1080i
1080p
Brightness Normal Mode: 6200 Lumens
Projection Angle 10.3 - 10.8° (Tele)
13.7 - 14.5° (Wide)
Aspect Ratio Not Specified By Manufacturer
Contrast Ratio 2D — 6000:1
Scan Horizontal: 15 - 153 kHz
Vertical: 48 - 120 Hz
Lens
Focus Manual
Lens Shift Vertical: -10%
Vertical: +50%
Horizontal: ±30%
Throw Distance 2.5 - 68.5' (0.8 - 20.9 m)
Projection Size 40 - 500" / 101.60 - 1270.00 cm
Features
Keystone Correction Yes, Vertical: ± 40°
Yes, Horizontal: ± 40°
Ceiling Mountable Yes
Rear Screen Projection Yes
Built-in Speaker Yes, 10 W (Mono)
Closed Captioning Not Specified By Manufacturer
Input/Output Connectors
Inputs/Outputs 1x Ethernet Control
1x USB Control
2x HDMI Audio/Video (Input)
1x HDMI Audio/Video (Output)
1x DisplayPort Audio/Video (Input)
1x 9-pin VGA Video (Input)
2x 1/8" (3.5 mm) Mini Audio (Input)
1x 1/8" (3.5 mm) Mini Audio (Output)
1x VESA 3D Sync Video
1x 5-BNC Video (Input)
1x RS-232C Control
1x IR Control
Sync Compatibility Composite Sync
Separate Sync
Sync on Green
General
Replacement Lamp NP26LP
Watts Normal Mode: 350 W
Eco Mode: 264 W
Life Normal Mode: 3000 Hours
Eco Mode: 4000 Hours
Fan Noise Normal Mode: 39 dB
Eco Mode: 33 dB
Remote Control Yes
Security Cable Lock Slot
Languages Not Specified By Manufacturer
Power Requirements 100-240 VAC, 50/60 Hz
Input Current 5.1 A
Power Consumption Normal Mode: 460 W
Eco Mode: 362 W
Standby Mode: 7.4 W
Standby Mode (Eco): .11 W
Temperature Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80%
Storage
-14 to 122°F (-25 to 50°C)
Dimensions (WxHxD) 19.6 x 6.5 x 14.4" / 499.0 x 164.0 x 366.0 mm
Weight 18.5 lb / 8.39 kg
Packaging Info
Package Weight 24.0 lb
Box Dimensions (LxWxH) 23.25 x 19.25 x 10.0"
The user manual for the NEC NP-PA622U 6200 Lumen WUXGA Professional NP-PA622U can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NEC users keep a unique electronic library for NEC multimedia projectorss, where you can use our link to download the user manual for the NEC NP-PA622U 6200 Lumen WUXGA Professional NP-PA622U.

The user manual lists all of the functions of the NEC NP-PA622U 6200 Lumen WUXGA Professional NP-PA622U, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NEC service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NEC NP-PA622U 6200 Lumen WUXGA Professional NP-PA622U. User manuals are also available on the NEC website under A/V Presentation - Projectors - Multimedia Projectors.
