User manual NEC P212-BK 21" 4:3 LED Backlit Professional IPS P212-BK

Operating instructions and pdf manual for use - NEC P212-BK 21" 4:3 LED Backlit Professional IPS P212-BK User manual, User manual NEC P212-BK 21" 4:3 LED Backlit Professional IPS P212-BK, NEC, P212-BK, 21, 4:3, LED, Backlit, Professional, IPS, P212


User manual for NEC P212-BK 21" 4:3 LED Backlit Professional IPS P212-BK

NEC P212-BK 21
  • Manufacturer: NEC
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your NEC
  • Settings and expert assistance
  • Contact NEC service
  • Troubleshooting
  • Warranty information

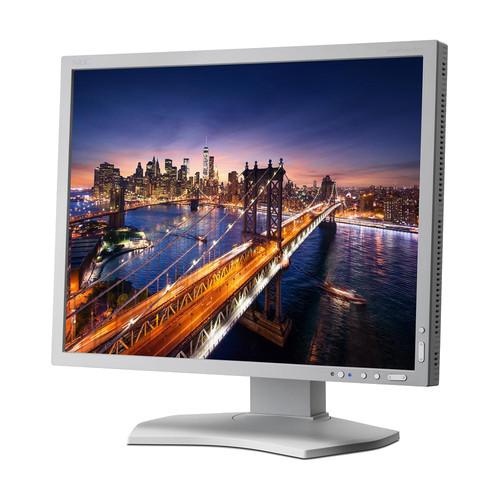

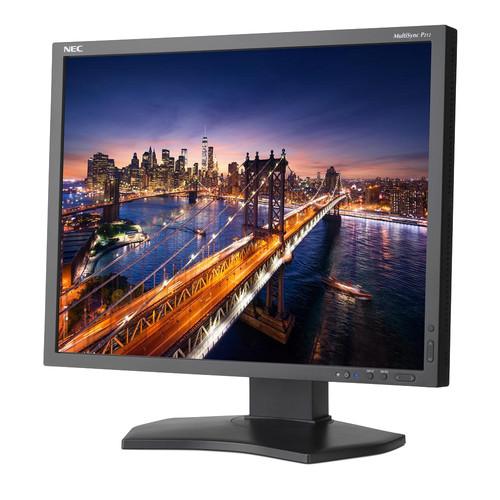

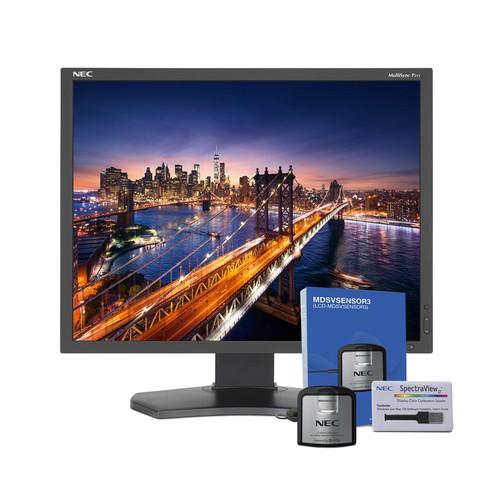

NEC P212-BK 21 NEC P212-BK 21 NEC P212-BK 21 NEC P212-BK 21
Click to enlarge image

We recommend checking out our discussion threads on the NEC P212-BK 21" 4:3 LED Backlit Professional IPS P212-BK, which address similar problems with connecting and setting up Computer Monitors NEC.



User manual for the NEC P212-BK 21" 4:3 LED Backlit Professional IPS P212-BK

The user manual for the NEC P212-BK 21" 4:3 LED Backlit Professional IPS P212-BK provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

With 97% coverage of the sRGB color space, this P212-BK 21" 4:3 LED Backlit Professional IPS Monitor from NEC provides enhanced color accuracy, a range of customizable presets, and 14-bit 3D lookup tables for display calibration. Along with enhanced color accuracy, the display of the P212-BK features a 1600 x 1200 resolution, 1500:1 contrast ratio, and an enhanced 440 cd/m² brightness rating. On the back of the monitor you will find DisplayPort, DVI-D, HDMI, and VGA connectors to incorporate it into a variety of computer configurations. Once configured, you can mount this NEC monitor to the wall to take full advantage of the 178° horizontal and vertical viewing angles made available using In-Plane Switching (IPS) display technology.
If you own a NEC computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEC P212-BK 21" 4:3 LED Backlit Professional IPS P212-BK in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NEC P212-BK 21Download user manual for NEC P212-BK 21" 4:3 LED Backlit Professional IPS P212-BK
(PDF file, 4.19 MB)
Additional parameters of the NEC P212-BK 21" 4:3 LED Backlit Professional IPS P212-BK:
Specifications
Panel Technology IPS (In-Plane Switching)
Viewable Image Size 21.3" / 54.1 cm
Aspect Ratio 4:3
Native Resolution 1600 x 1200
Pixel Pitch 0.27 mm
Pixels Per Inch 94 @ native resolution
Backlight Type LED
Brightness 440 cd/m² (typical)
Contrast Ratio 1500:1 (typical)
Viewing Angles (H/V) 178°/178° (89U/89D/89L/89R) @ CR>10
Response Time 8 ms (typical)
Color Gamut Adobe RGB Coverage/Size: 77.0% / 78.8%
NTSC Coverage/Size: 74.4% / 75.3%
sRGB Coverage/Size: 97.9% / 106.3%
Lookup Table 14-bit (3D)
Displayable Colors 1.07 billion out of 4.3 trillion (10-bit DisplayPort or HDMI)
16.7 million out of 1.05 billion (8-bit)
Synchronization Range Horizontal (Analog/Digital)
31.5-94.0 & 99.5 KHz / 31.5-92.0 and 99.5 KHz
Vertical
50.0-85 Hz
Input Signal Video
Analog RGB 0.7 Vp-p/75 Ohms
Sync
Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Input Connectors 1 x DisplayPort
1 x DVI-D
1 x HDMI
1 x VGA 15-pin D-sub
USB Ports 2 x USB 3.0 type A
1 x USB 3.0 type B
Power Consumption On: 57 W
Power Savings Mode: 0.5 W
VESA Hole Configuration 100 x 100 mm
Environmental Conditions Operating Temperature: 41 to 95°F / 5 to 35°C
Operating Humidity: 20 to 80%
Operating Altitude: 16,404 ft / 5,000 m
Storage Temperature: -4 to 140°F / -20 to 60°C
Storage Humidity: 10 to 85%
Storage Altitude: 40,000 ft / 12,192 m
Environmental Compliance RoHS
Dimensions With Stand: 18.4 x 14.7-20.7 x 9.0" / 466.4 x 374.6-524.6 x 227.6 mm
Without Stand: 18.4 x 14.1 x 2.5" / 466.4 x 359.0 x 63.9 mm
Weight With Stand: 17.6 lb / 8.0 kg
Without Stand: 10.6 lb / 4.8 kg
Packaging Info
Package Weight 26.35 lb
Box Dimensions (LxWxH) 21.654 x 18.976 x 12.598"
The user manual for the NEC P212-BK 21" 4:3 LED Backlit Professional IPS P212-BK can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NEC users keep a unique electronic library for NEC computer monitorss, where you can use our link to download the user manual for the NEC P212-BK 21" 4:3 LED Backlit Professional IPS P212-BK.

The user manual lists all of the functions of the NEC P212-BK 21" 4:3 LED Backlit Professional IPS P212-BK, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NEC service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NEC P212-BK 21" 4:3 LED Backlit Professional IPS P212-BK. User manuals are also available on the NEC website under Computers & Solutions - Monitors & Displays - Computer Monitors.
