Netgear GS752TP ProSAFE Gigabit PoE/PoE  Smart GS752TP-100NAS
  • Manufacturer: Netgear
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Network Switches, Bridges & Hubs
  • Safety instructions
  • Startup and operation of the network switches, bridges & hubs
  • Tips for setting up your Netgear
  • Settings and expert assistance
  • Contact Netgear service
  • Troubleshooting
  • Warranty information
  • Price: 669 USD
Netgear GS752TP ProSAFE Gigabit PoE/PoE  Smart GS752TP-100NAS Netgear GS752TP ProSAFE Gigabit PoE/PoE  Smart GS752TP-100NAS
Click to enlarge image

We recommend checking out our discussion threads on the Netgear GS752TP ProSAFE Gigabit PoE/PoE Smart GS752TP-100NAS, which address similar problems with connecting and setting up Network Switches, Bridges & Hubs Netgear.



User manual for the Netgear GS752TP ProSAFE Gigabit PoE/PoE Smart GS752TP-100NAS

The user manual for the Netgear GS752TP ProSAFE Gigabit PoE/PoE Smart GS752TP-100NAS provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Switches, Bridges & Hubs.

Easily expand the reach of your network with the GS752TP ProSAFE Gigabit PoE/PoE+ Smart Switch from NETGEAR. Equipped with features like an 8K Mac address table, support for up to 256 VLANs, 480 shared ACL entries, 32 static routes, and 1,024 multicast groups this gives to the tools to effectively future-proof your network. Additionally, IPv6 compatibility makes upgrading to this networking standard simple and easy.

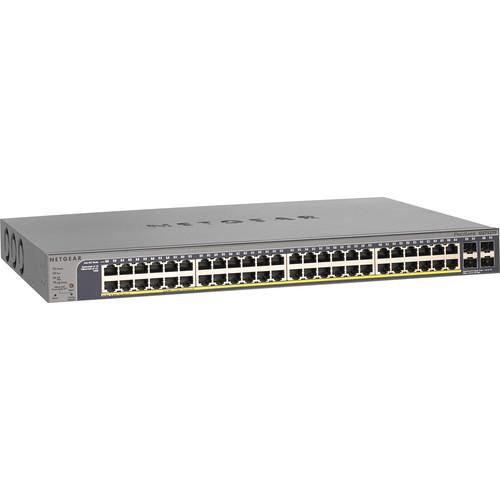

This NETGEAR switch comes equipped with 48 Gigabit Ethernet ports and 4 SFP ports suited for both telecommunication and data communication applications. Each of the 48 ports features PoE compatibility while 8 are compatible with the 802.3at PoE+ networking standard. All of the PoE ports also feature a PoE timer to schedule on/off time for connected devices. While the integrated ports offer enhanced PoE compatibility, the switch remains compliant with the 802.3az Energy Efficient Ethernet networking standard to help keep power consumption to a minimum.

Once configured, this switch allows for the implementation of both VLAN and VoIP applications as well as video and IP surveillance. Access control can be setup using the included ACL Wizard while the Smart Control Center assists with deployment, monitoring, and firmware upgrades.
If you own a Netgear network switches, bridges & hubs and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Netgear GS752TP ProSAFE Gigabit PoE/PoE Smart GS752TP-100NAS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Netgear GS752TP ProSAFE Gigabit PoE/PoE Smart GS752TP-100NAS:
Interfaces 48 x 10/100/1000 Mbps auto-sensing Gigabit-Ethernet switching ports
4 x dedicated 1000M SFP fiber ports
PoE Ports Port 1-8
IEEE 802.3at PoE+, providing up to 30 W of DC power through each port
Port 9-48
IEEE 802.3af PoE, providing up to 15.4 W of DC power through each port
Bandwidth 104 Gbps
Acoustic Noise (ANSI-S10.12) 44.9 dBA
Mean Time Between Failure (MTBF) 220,447 hours
Heat Dissipation 1750.70 Btu/H
IEEE Network Protocols • IEEE 802.3 Ethernet
• IEEE 802.3i 10BASE-T
• IEEE 802.3u 100BASE-T
• IEEE 802.3ab 1000BASE-T
• IEEE 802.1Q VLAN Tagging
• IEEE 802.3x full-duplex flow control
• IEEE 802.3z Gigabit Ethernet 1000BASESX/LX
• IEEE 802.3ae 10-Gigabit Ethernet
• IEEE 802.3ad Trunking (LACP)
• IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED)
• IEEE 802.1p Class of Service
• IEEE 802.3 af (PoE)
• IEEE 802.1D Spanning Tree (STP)
• IEEE 802.1s Multiple Spanning Tree (MSTP)
• IEEE 802.1w Rapid Spanning Tree (RSTP)
• IEEE 802.1X Radius network access control
• IEEE 802.3 at (PoE Plus)
Dimensions 17.3 x 12.4 x 1.7" / 440 x 316 x 43 mm
Weight 11.24 lb / 5.10 kg
Packaging Info
Package Weight 14.3 lb
Box Dimensions (LxWxH) 22.4 x 16.9 x 4.1"
The user manual for the Netgear GS752TP ProSAFE Gigabit PoE/PoE Smart GS752TP-100NAS can be downloaded in .pdf format if it did not come with your new network switches, bridges & hubs, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Netgear users keep a unique electronic library for Netgear network switches, bridges & hubss, where you can use our link to download the user manual for the Netgear GS752TP ProSAFE Gigabit PoE/PoE Smart GS752TP-100NAS.

The user manual lists all of the functions of the Netgear GS752TP ProSAFE Gigabit PoE/PoE Smart GS752TP-100NAS, all the basic and advanced features and tells you how to use the network switches, bridges & hubs. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Netgear service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Netgear GS752TP ProSAFE Gigabit PoE/PoE Smart GS752TP-100NAS. User manuals are also available on the Netgear website under Computers & Solutions - Networking - Network Switches, Bridges & Hubs.
