User manual Neumann KK 204 Cardioid Microphone Capsule KK204NI

Operating instructions and pdf manual for use - Neumann KK 204 Cardioid Microphone Capsule KK204NI User manual, User manual Neumann KK 204 Cardioid Microphone Capsule KK204NI, Neumann, KK, 204, Cardioid, Microphone, Capsule, KK204NI,


User manual for Neumann KK 204 Cardioid Microphone Capsule KK204NI

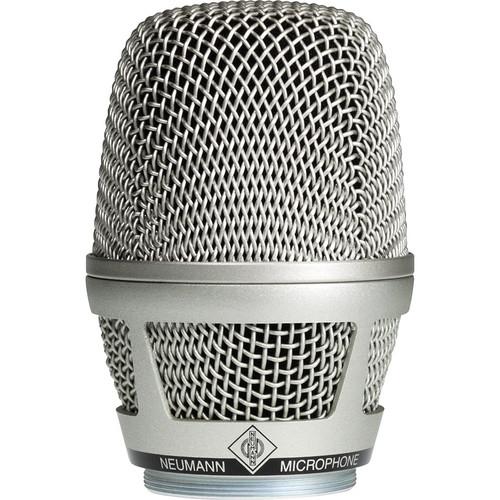

Neumann KK 204 Cardioid Microphone Capsule KK204NI
  • Manufacturer: Neumann
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Microphone Capsules
  • Safety instructions
  • Startup and operation of the microphone capsules
  • Tips for setting up your Neumann
  • Settings and expert assistance
  • Contact Neumann service
  • Troubleshooting
  • Warranty information
  • Price: 1000 USD
We recommend checking out our discussion threads on the Neumann KK 204 Cardioid Microphone Capsule KK204NI, which address similar problems with connecting and setting up Microphone Capsules Neumann.



User manual for the Neumann KK 204 Cardioid Microphone Capsule KK204NI

The user manual for the Neumann KK 204 Cardioid Microphone Capsule KK204NI provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Microphone Capsules.

The nickel Neumann KK 204 Cardioid Microphone Capsule for Sennheiser SKM 2000 System provides a full, transparent and naturally warm sound without excessive accentuation of the bass. Due to the single polar pattern design, the polar patterns are very uniform over the entire frequency range, thus providing the basis for excellent resistance to feedback.

The capsule is developed especially for the Sennheiser SKM 2000 system. Particular importance has been placed on further damping of pop sounds and handling noise, an extremely low level of self-noise, and ease of servicing. This capsule has integrated foam pop protection. The foam pores have a greatly increased surface area and can keep extreme moisture away from the capsule.

The capsule provides the best possible suppression of sound originating from 180° to the rear.
If you own a Neumann microphone capsules and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Neumann KK 204 Cardioid Microphone Capsule KK204NI in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Neumann KK 204 Cardioid Microphone Capsule KK204NI:
Directional Pattern Cardioid
Frequency Range 40 Hz - 20 kHz
Sensitivity 2.8 mV/Pa ± 1 dB ≅ -51 dBV

Note: At 1 kHz into 100 kOhm rated load impedance. 1 Pa ≅ 94 dB SPL.
Equivalent Noise Level CCIR: 35 dB
A-Weighted: 24 dB-A

Note: According to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
Max SPL (0dB=20µPa) 150 dB

Note: THD of microphone amplifier at an input voltage equivalent to the capsule output at the specified SPL.
Dynamic Range >126 dB-A
Diameter 2.16" (55 mm)
Total Length 10.7" (272 mm)
Weight Approximately 1.1 lbs (500 g)
Packaging Info
Package Weight 1.1 lb
Box Dimensions (LxWxH) 12.2 x 3.8 x 3.0"
The user manual for the Neumann KK 204 Cardioid Microphone Capsule KK204NI can be downloaded in .pdf format if it did not come with your new microphone capsules, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Neumann users keep a unique electronic library for Neumann microphone capsuless, where you can use our link to download the user manual for the Neumann KK 204 Cardioid Microphone Capsule KK204NI.

The user manual lists all of the functions of the Neumann KK 204 Cardioid Microphone Capsule KK204NI, all the basic and advanced features and tells you how to use the microphone capsules. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Neumann service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Neumann KK 204 Cardioid Microphone Capsule KK204NI. User manuals are also available on the Neumann website under Pro Audio - Live Sound - Microphone Capsules.
