User manual for the Neutrik NPPA-TT-S-I 96 Bantam (TT) Termination Patch NPPA-TT-S-I
The user manual for the Neutrik NPPA-TT-S-I 96 Bantam (TT) Termination Patch NPPA-TT-S-I provides
necessary instructions for the proper use of the product Pro Audio - General Accessories - Audio Patchbays.

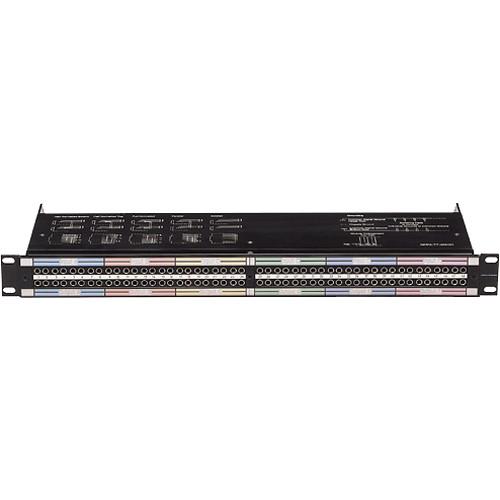

The Neutrik NPPA-TT-S-I 96 Bantam (TT) Termination Patch Panel is fitted with high-quality, long-life NJ3TTA gold plated double contact jacks that have good contact integrity. The unit comes in a black coated steel shell, and has a built in cable bar and 2 large channel identification strips for appropriate management of the system. The NPPA-TT-S-I patch panel is a compact patching system (1U high) for 19" rack mounting.
|
If you own a Neutrik audio patchbays and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Neutrik NPPA-TT-S-I 96 Bantam (TT) Termination Patch NPPA-TT-S-I in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Neutrik NPPA-TT-S-I 96 Bantam (TT) Termination Patch NPPA-TT-S-I:
| Signal Type | Digital suitability acc. AES/EBU (3.072 Mbps and 6.144 Mbps) | | Frequency Range | DC to >50 MHz | | Suitability | Digital: Digital audio acc. to AES/EBU | | Channel Separation | >100 dB @ 10 kHz, 600 terminated
>40 dB @ 6 MHz, 110 terminated | | Insulation Resistance | >10 Ω@ 500 VDC | | Contact Resistance | Connector: <20 mΩ | | Contact Resistance | Switch: <25 mΩ | | Dielectric Strength | 1,000 VDC | | Housing | Jack: PA 66 blend | | Contacts | Jack: CuSn6 tribor plated (0.2 µm AuCo over 2 µm NiP) | | Casing | Steel and aluminum | | Front Panel | AlMgSi 0.5 F22 | | Temperature Range | -22 to 176° F (- 30 to 80° C) | | Lifetime | >5,000 mating cycles | | Insertion Force | <10 N | | Withdrawal Force | > 8 N | | Cable Retention | Force: 70 N maximum per cable retention bar | | Depth | 7'' (178 mm) | | Weight | 6.39 lb (2.9 kg) | | Dimensions (W x H) | 19'' x 1U | |
