NEXTO DI Storage Bridge NSB-25 Modular Memory Card NESV-NSB25
  • Manufacturer: NEXTO DI
  • Basic description and contents of package
  • Product classification: Photography - Memory Cards & Film - Memory Card Back-up Devices
  • Safety instructions
  • Startup and operation of the memory card back-up devices
  • Tips for setting up your NEXTO DI
  • Settings and expert assistance
  • Contact NEXTO DI service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the NEXTO DI Storage Bridge NSB-25 Modular Memory Card NESV-NSB25, which address similar problems with connecting and setting up Memory Card Back-up Devices NEXTO DI.



User manual for the NEXTO DI Storage Bridge NSB-25 Modular Memory Card NESV-NSB25

The user manual for the NEXTO DI Storage Bridge NSB-25 Modular Memory Card NESV-NSB25 provides necessary instructions for the proper use of the product Photography - Memory Cards & Film - Memory Card Back-up Devices.

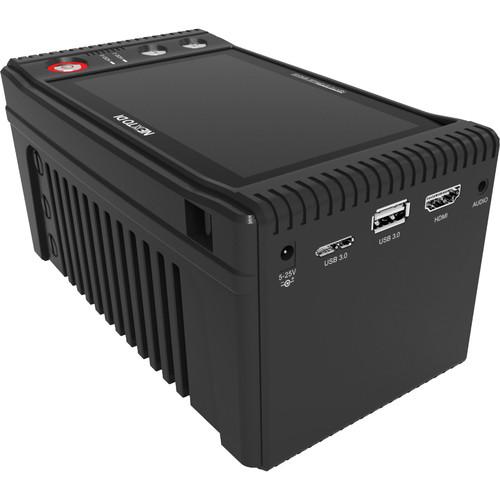

The Storage Bridge NSB-25 Modular Memory Card Backup System from NEXTO DI is a mobile and expandable data backup device that features USB 3.0 connectivity and is designed for videographers, photographers, and those who are working in the field with large amounts of imaging data. The NSB-25 will allow users to create a backup from almost every type of memory card through the use of an interchangeable memory card module. The optional memory card modules support SxS, XQD, AXSM, P2, express P2, AJA QUAD, CFast, REDMAG, and 2.5" HDD/SSDs. The NSB-25 supports exFAT, FAT32, UDF, and HFS+, allowing it to work with files 4GB and larger and also has two fixed memory card slots for CompactFlash and SD cards.

The NSB-25 supports several backup options through its MCopy function, allowing users to simultaneously back up on up to three drives. After you have finished shooting footage, remove the memory card from your camera and insert it into a card slot on the NSB-25. You can then securely create up to three backups (two hard drive modules and one external drive) simultaneously. This backup process will allow you to create a copy for archiving, a copy for editing, and a master backup. For example, your data can be archived to HDD 1 on the NSB-25, which has the same data that was copied and verified bit-by-bit from the cards. Data backed up to HDD 2 can be delivered for editing and the NSB-25 can also be synched with a RAID drive to create a master backup while on location. The NSB-25 also supports incremental backup, meaning that only files that have changed since the last backup will be copied. This will help backups to be completed more quickly and consume a minimum amount of storage space.

The NSB-25 is also able to playback 2K footage or preview 4K footage on its 5" TFT-LCD 800 x 480 touchscreen monitor, which also includes an internal speaker, a stereo audio out jack, and an HDMI out to an external monitor. 2K Playback supports MPEG2 up to 50 Mb/s as well as AVCHD, H.264, ProRes, and DNxHD. 2K Preview supports AVC-Intra and XAVC, while 4K Preview supports Cinema DNG through a firmware upgrade.

The NSB-25 includes an AC power adapter, a USB 3.0 cable, a car charger cable, a hand strap, and rubber bumpers.
If you own a NEXTO DI memory card back-up devices and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NEXTO DI Storage Bridge NSB-25 Modular Memory Card NESV-NSB25 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the NEXTO DI Storage Bridge NSB-25 Modular Memory Card NESV-NSB25:
NEXTO Storage Bridge
Model Number NSB-25
LCD 5" Color TFT LCD: 800 x 480, 24-bit color
Memory Support Built-in Slot: CF / SD (SDHC/SDXC with USH-1 support)
Exchangeable Memory Module Slot: 1 ea (See Bridge Memory Module)
File System Format: FAT32 / exFAT / UDF / HFS+
Backup Storage Two removable hard drive slots for Bridge Pellets (sold separately); Formatted using exFAT
One USB 3.0 host port for any USB 3.0 drive (must be formatted using exFAT)
Video Support Play 2K : AVCHD / H.264 / MPEG2 (up to 50 Mbps) / ProRes / DNxHD / DV / DVCPRO HD
Preview (Best effort): XAVC, AVC-Intra, 4K RAW (DNG)
Supported Video File Format: .mxf / .mov / .mp4 / .mts / .dv / (.avi)
Video Output Built in LCD or HDMI (v1.4)
Audio Support LPCM Audio
Audio Output Built in speaker (mono); Built in audio jack
Photo Support JPEG (.jpg) / Canon Raw (.cr2) / Nikon Raw (.nef)
Battery 3.7 V, 13,200 mAh Rechargeable Lithium-polymer battery
Rechargeable via AC power adapter (6 hrs), USB cable (12 hrs), car charger cable
3 hour battery life (with two Bridge Pellets connected) with single charge
Copy 1 TB to two drives simultaneously with single charge
AC Power Adapter Input: 100-240 VAC
Output: 12 V, 2 ADC
Computer I/F USB 3.0 device (5 Gb/s)
External Device Support USB 3.0 hard drive / RAID
OS Compatibility Windows 8, 7, Vista, and XP
Windows XP (SP2 / SP3) requires an exFAT patch update
Mac OS X 10.6.6 and above
Linux 2.4.18 and above
Dimensions 7.0 x 4.0 x 3.8" / 177.8 x 101.6 x 96.5 mm
Weight 3.3 lb / 1.5 kg (with no HDD and memory module installed)
Bridge Pellet
Model Number NSB-BP1
Internal Drives 2.5", 9.5 mm SATA (I, II, III) hard drive or SSD
Computer Connection USB 3.0 device (5 Gb/s)
NSB-25 Connection SATA II (3 Gb/s)
File System Format exFAT
Power USB Bus powered
Dimensions 4.8 x 3.0 x 0.6" / 121.9 x 76.2 x 15.2 mm
Weight 2.8 oz / 80.0 g
Bridge Memory Module
Type 1 Sxs / XQD / express P2
Type 2 RED / CFast / AJA QUAD / 2.5" SSD or HDD
Type 3 P2
Type 4 AXSM
Packaging Info
Package Weight 4.7 lb
Box Dimensions (LxWxH) 9.764 x 7.559 x 4.961"
