User manual Nikon 1 AW1 Mirrorless Digital Camera with 11-27.5mm Lens 27665

Operating instructions and pdf manual for use - Nikon 1 AW1 Mirrorless Digital Camera with 11-27.5mm Lens 27665 User manual, User manual Nikon 1 AW1 Mirrorless Digital Camera with 11-27.5mm Lens 27665, Nikon, 1, AW1, Mirrorless, Digital, Camera, wi


User manual for Nikon 1 AW1 Mirrorless Digital Camera with 11-27.5mm Lens 27665

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Nikon 1 AW1 Mirrorless Digital Camera with 11-27.5mm Lens 27665
  • Manufacturer: Nikon
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - Mirrorless System Cameras
  • Safety instructions
  • Startup and operation of the mirrorless system cameras
  • Tips for setting up your Nikon
  • Settings and expert assistance
  • Contact Nikon service
  • Troubleshooting
  • Warranty information
  • Price: 797 USD
Nikon 1 AW1 Mirrorless Digital Camera with 11-27.5mm Lens 27665 Nikon 1 AW1 Mirrorless Digital Camera with 11-27.5mm Lens 27665 Nikon 1 AW1 Mirrorless Digital Camera with 11-27.5mm Lens 27665 Nikon 1 AW1 Mirrorless Digital Camera with 11-27.5mm Lens 27665 Nikon 1 AW1 Mirrorless Digital Camera with 11-27.5mm Lens 27665 Nikon 1 AW1 Mirrorless Digital Camera with 11-27.5mm Lens 27665
Click to enlarge image

We recommend checking out our discussion threads on the Nikon 1 AW1 Mirrorless Digital Camera with 11-27.5mm Lens 27665, which address similar problems with connecting and setting up Mirrorless System Cameras Nikon.



User manual for the Nikon 1 AW1 Mirrorless Digital Camera with 11-27.5mm Lens 27665

The user manual for the Nikon 1 AW1 Mirrorless Digital Camera with 11-27.5mm Lens 27665 provides necessary instructions for the proper use of the product Photography - Digital Cameras - Mirrorless System Cameras.

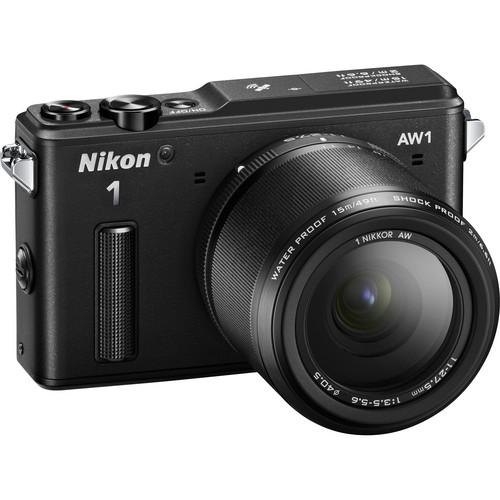

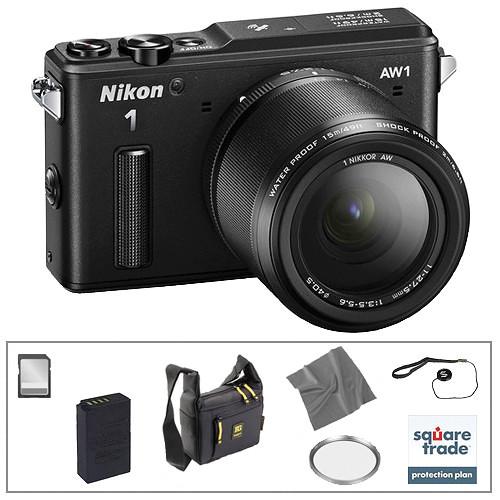

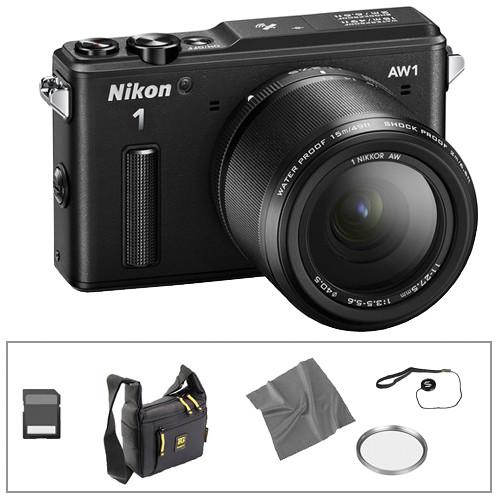

The black Nikon 1 AW1 Mirrorless Digital Camera is a compact mirrorless camera designed specifically for use in some of the harshest conditions and for underwater shooting. Its rugged, weather-sealed construction is waterproof to 49.2' and shockproof to withstand falls from up to 6.6'. Other key elements incorporated within the body further enhance its use in trying conditions, including sealed and lockable compartment covers, underwater-specific color compensation settings, a wide range of environmental sensing functions, and a dedicated Action control button for intuitive motion-based selection of certain camera settings.

In regard to imaging, the 1 AW1 features a CX-format 14.2MP CMOS sensor and EXPEED 3A image processor to produce high resolution still imagery and full HD video recording with tremendous speed and notable low-light sensitivity to support working with in a wide array of shooting scenarios. Full-resolution continuous shooting with full-time AF is supported up to 15 fps, or, when the focus is locked after the first frame, an incredibly quick 60 fps shooting rate can be achieved. An advanced hybrid AF system employs both contrast- and phase-detection focusing methods in order to acquire focus both quickly and accurately and will automatically switch between to the two focusing types depending on the detected scene type.

Enhancing the imaging capabilities are a set of shooting modes designed to isolate key frames in an automatic and intuitive way through the use of successive shooting and intelligent detection to determine the best frame within a series. In-camera panoramic and HDR imagery is possible as well as multi-medium imagery via the unique Motion Snapshot mode, which integrates slow motion video along with a single still frame.

Included with the camera body is the black 1 NIKKOR AW 11-27.5mm f/3.5-5.6 lens, which provides a 35mm-equivalent field of view of 30-74mm to support working in everyday conditions. This lens features the same robust build quality as the camera body and employs one aspherical element and one extra-low dispersion element to improve image quality and minimize various aberrations throughout the zoom range.
If you own a Nikon mirrorless system cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Nikon 1 AW1 Mirrorless Digital Camera with 11-27.5mm Lens 27665 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Nikon 1 AW1 Mirrorless Digital Camera with 11-27.5mm Lens 27665Download user manual for Nikon 1 AW1 Mirrorless Digital Camera with 11-27.5mm Lens 27665
(PDF file, 6.24 MB)
Additional parameters of the Nikon 1 AW1 Mirrorless Digital Camera with 11-27.5mm Lens 27665:
Imaging
Lens Mount Nikon Waterproof 1
Camera Format Nikon CX (2.7x Crop Factor)
Pixels Actual: 15.13 Megapixel
Effective: 14.2 Megapixel
Max Resolution 4608 x 3072
Sensor Type / Size CMOS, 13.2 x 8.8 mm
File Formats Still Images: JPEG, RAW
Movies: MOV, MPEG-4 AVC/H.264
Audio: AAC
Bit Depth 12-bit
Dust Reduction System Yes
Memory Card Type SD
SDHC
SDXC
AV Recording
Video Recording Yes
Resolution 1920 x 1080: 60 fps, 30 fps
1280 x 720: 60 fps, 30 fps
640 x 240: 400 fps
320 x 120: 1200 fps
Aspect Ratio 8:3, 16:9
Audio Recording With Video, Stereo
Focus Control
Focus Type Auto & Manual
Focus Mode Continuous-servo AF (C), Full-time Servo (F), Manual Focus (M), Single-servo AF (S)
Autofocus Points Contrast Detection:135
Phase Detection:73
Viewfinder/Display
Display Screen 3" Rear Screen   LCD (921,000)
Exposure Control
ISO Sensitivity Auto, 100-6400
Shutter Type: Electronic
Speed: 30 - 1/16000
Type: Electronic
Speed: 120 - 1/16000  in  Bulb Mode
Metering Method Center-weighted average metering, Matrix, Spot metering
Exposure Modes Modes: Aperture Priority, Manual, Programmed Auto, Scene Auto Selector, Shutter Priority
Compensation: -3 EV to +3 EV (in 1/3 EV steps)
White Balance Modes Auto, Cloudy, Direct Sunlight, Flash, Fluorescent, Incandescent, Preset Manual, Shade, Underwater
Continuous Shooting Up to 60 fps at 14.2 MP for up to 20 frames
Up to 30 fps at 14.2 MP  frames
Up to 15 fps at 14.2 MP for up to 22 frames
Up to 5 fps at 14.2 MP  frames
Flash
Flash Modes Fill-flash/Slow Sync
Fill-in
Off
Rear Curtain/Slow Sync
Rear Sync
Red-eye Reduction
Slow Sync/Red-eye Reduction
Built-in Flash Yes
Guide No. 16.4' (5 m) ISO100
Max Sync Speed Electronic Shutter: 1 / 60 seconds
Flash Compensation -1 EV to +3 EV (in 1/3 EV steps)
Dedicated Flash System iTTL
Performance
Self Timer 2 seconds, 5 seconds, 10 seconds
Connectivity 1x USB 2.0
1x HDMI C (Mini)
Wi-Fi Capable Yes (with Optional Transmitter)
Power
Battery 1x EN-EL20 Rechargeable Lithium-ion Battery Pack, 7.2 VDC, 1020 mAh
AC Power Adapter EH-5b (Optional)
Operating/Storage Temperature Operating
14 to 104°F (-10 to 40°C)
Humidity: 0 - 85%
Physical
Dimensions (WxHxD) 4.5 x 2.8 x 1.5" / 113.3 x 71.5 x 37.5 mm excluding projections
Weight 12.56 oz / 356 g Body only with battery and memory card
Kit Lens
Focal Length 11 - 27.5mm
Comparable 35mm Focal Length: 30 - 74 mm
Aperture Maximum: f/3.5 - 5.6
Minimum: f/16
Angle of View 72° - 32° 20'
Minimum Focus Distance 11.81" (30 cm)
Elements/Groups 8/6
Diaphragm Blades 7
Autofocus Yes
Filter Thread Front: 40.5 mm
Dimensions (DxL) Approx. 2.48 x 2.22" (63 x 56.5 mm)
Weight 6.42 oz (182 g)
Packaging Info
Package Weight 2.55 lb
Box Dimensions (LxWxH) 6.7 x 6.1 x 3.3"
The user manual for the Nikon 1 AW1 Mirrorless Digital Camera with 11-27.5mm Lens 27665 can be downloaded in .pdf format if it did not come with your new mirrorless system cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Nikon users keep a unique electronic library for Nikon mirrorless system camerass, where you can use our link to download the user manual for the Nikon 1 AW1 Mirrorless Digital Camera with 11-27.5mm Lens 27665.

The user manual lists all of the functions of the Nikon 1 AW1 Mirrorless Digital Camera with 11-27.5mm Lens 27665, all the basic and advanced features and tells you how to use the mirrorless system cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Nikon service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Nikon 1 AW1 Mirrorless Digital Camera with 11-27.5mm Lens 27665. User manuals are also available on the Nikon website under Photography - Digital Cameras - Mirrorless System Cameras.
