User manual NUUO NVRmini2 NE-4080 NVR and Server NE-4080-US-3T-3

Operating instructions and pdf manual for use - NUUO NVRmini2 NE-4080 NVR and Server NE-4080-US-3T-3 User manual, User manual NUUO NVRmini2 NE-4080 NVR and Server NE-4080-US-3T-3, NUUO, NVRmini2, NE-4080, NVR, Server, NE-4080-US-3T-3,


User manual for NUUO NVRmini2 NE-4080 NVR and Server NE-4080-US-3T-3

NUUO NVRmini2 NE-4080 NVR and Server NE-4080-US-3T-3
  • Manufacturer: NUUO
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Network Video Recorders (NVRs)
  • Safety instructions
  • Startup and operation of the network video recorders (nvrs)
  • Tips for setting up your NUUO
  • Settings and expert assistance
  • Contact NUUO service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the NUUO NVRmini2 NE-4080 NVR and Server NE-4080-US-3T-3, which address similar problems with connecting and setting up Network Video Recorders (NVRs) NUUO.



User manual for the NUUO NVRmini2 NE-4080 NVR and Server NE-4080-US-3T-3

The user manual for the NUUO NVRmini2 NE-4080 NVR and Server NE-4080-US-3T-3 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Network Video Recorders (NVRs).

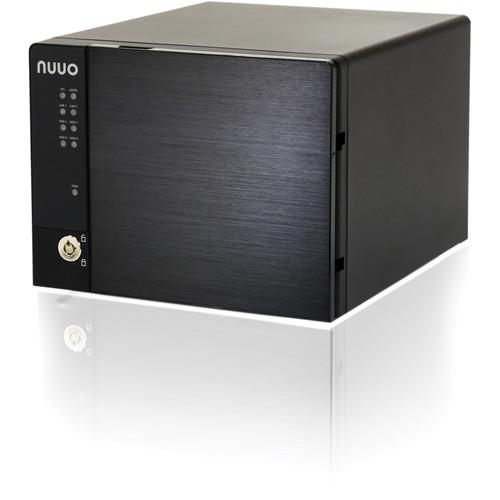

The NUUO NVRmini2 NE-4080 NVR and Server (8-Channel, 4 Drive Bays, 3TB) is a professional surveillance recording system designed to stream and record live video/audio from 8 IP cameras. Joystick support allows you to control a camera's panomorph (360°) and PTZ functions, thereby reducing the number of IP cameras required for your setup. The unit also supports dual streaming of MPEG4, MJPEG, and H.264 video compression formats.

The NVRmini Recorder and Server features an intelligent playback system with 5 video analytics searches that include general motion, foreign object, missing object, loss of focus, and camera occlusion. With support for RAID 0 and 1, the recorder ensures the highest level of data security at the HDD level.
If you own a NUUO network video recorders (nvrs) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NUUO NVRmini2 NE-4080 NVR and Server NE-4080-US-3T-3 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the NUUO NVRmini2 NE-4080 NVR and Server NE-4080-US-3T-3:
Number of Cameras 8 (16)

8 licenses included (Expandable to 16 licenses).

Playback Channel 8
Number of Drives 4 x SATA II
Drive Bays 4

For US only.

Storage Included HDD Capacity: 3 x 1 TB
Maximum Storage of Compatible HDD: 3 TB
RAID Level RAID 0, 1, 5, 10
I/O Interface 2 x USB 2.0 (for UPS)
2 x eSATA (for DAS)
LAN Port 2 x Gigabit RJ-45 Ethernet ports
Compression Format MPEG4, M-JPEG, H264, MxPEG (depends on IP camera)
Recording Camera dependent
Total bitrate: 80 Mb/s (around 240 fps at 1.3 M)
CPU Remote PC CPU: Intel Core 2 Duo, 2.6 GHz
RAM Remote PC RAM: 1 GB
User Interface HTTP web browser - Internet Explorer 8 and later/ NUUO client application program
Recording type Continuous record, record by schedule, manual record, event trigger record, digital input trigger record
Remote Live View Control Live view, preset/ go, PTZ, remote I/O, snapshot, multi-view, digital PTZ, advanced E-Map, bandwidth monitoring
Audio & Video Recording Audio & video recording in synchronization
POS Integration Live view, record, playback, and search for every transaction
Auto Backup Automatically backup the recorded video of the previous date to FTP
Smart Search General motion, missing object, foreign object, lose focus, camera occlusion
OS Remote Client OS Platform: Windows XP (32-bit) / Vista (32-bit) / 7 (32 and 64-bit)
Remote Live View Connections Live view maximum 16 connections at the same time
Mobile Client OS Platform iPhone, iPad, Android, BlackBerry, Windows Phone 7
Camera Support IP Camera Brand Support: ACTi, ArecontVision,ARM, Axis, Basler, Brickcom, Bosch, Cisco, CNB, D-Link, Dynacolor, Eneo, Fine, HIKVision, Honeywell, IQinVision, LevelOne, Lumenera, Linksys, Mobotix, Onvif, Panasonic, PiXORD, Samsung, Santec, SANYO, Sony, StarDot, Toshiba, Truen, Videosec, VIVOTEK, Zavio
Voltage 100 to 240 VAC
Temperature 0 to 104°F (0 to 40°C)
Operating Humidity 5 to 95%
Dimensions 5.5 x 7.2 x 8.6" (14.0 x 18.3 x 21.9 cm)
Weight 6.5 lb (2.9 kg)
The user manual for the NUUO NVRmini2 NE-4080 NVR and Server NE-4080-US-3T-3 can be downloaded in .pdf format if it did not come with your new network video recorders (nvrs), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NUUO users keep a unique electronic library for NUUO network video recorders (nvrs)s, where you can use our link to download the user manual for the NUUO NVRmini2 NE-4080 NVR and Server NE-4080-US-3T-3.

The user manual lists all of the functions of the NUUO NVRmini2 NE-4080 NVR and Server NE-4080-US-3T-3, all the basic and advanced features and tells you how to use the network video recorders (nvrs). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NUUO service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NUUO NVRmini2 NE-4080 NVR and Server NE-4080-US-3T-3. User manuals are also available on the NUUO website under Surveillance - Surveillance Video - Network Video Recorders (NVRs).
