User manual for the Oben AC-1331 Aluminum Tripod with BA-108 Ball Head

The user manual for the Oben AC-1331 Aluminum Tripod with BA-108 Ball Head provides necessary instructions for the proper use of the product Photography - Tripods & Support - Tripods with Heads.

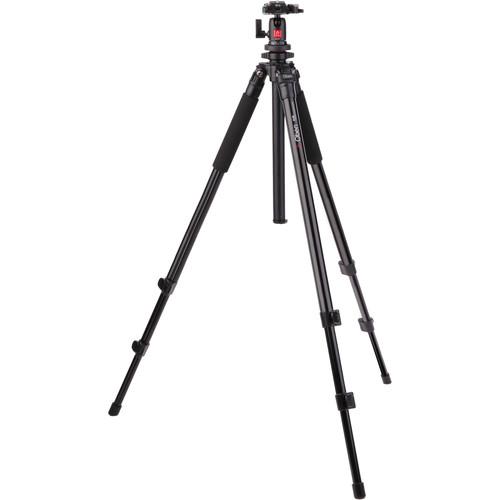

The AC-1331 3-Section Aluminum Tripod with BA-108 Ball Head from Oben is a lightweight (3.3 lb) tripod that provides reliable support for any camera and lens up to 8.8 lb.

The tripod's 3-section aluminum legs and center column extend to a maximum height of 59.6", and when folded, the entire system is a compact 24.5". Flip locks on each leg enable extremely fast deployment and retraction of leg stages. Three leg angles are possible, and pull-tab locks secure the legs in their notches. The legs' angles are independently adjustable to accommodate shooting on uneven terrain. At the widest leg angle, the tripod sits extremely close to the ground to facilitate low-angle shooting. The tripod's feet feature rubber tips which are great for shooting on slippery or hard surfaces.

The tripod's rapid center column extends with a twist of the wingnut locking knob. For protection when it's retracted quickly, there's a rubber damper that protects the center-post collar. Locking screws underneath the collar enable you to fasten the head securely to the chassis. By unscrewing the spring-loaded hook at the bottom end, the center column becomes removable and reversible, for a second method of achieving extremely low-angle shots. The center column's hook holds a counterweight, in case you need additional system stability.

The BA-108 has a single-action knob that allows you to unlock all axes of movement in one fell swoop, so you can quickly orient your camera properly, retighten the knob, and return to shooting. The ball-locking mechanism is remarkably strong for reliably stable performance.

The included quick-release plate attaches to your camera via its standard 1/4"-20 screw, and easily snaps and locks into place on the head.

Two bull's eye bubble levels will allow you to align your frame with the horizon, in both portrait and landscape orientations. The BA-108 features a 90° groove for tilting the camera to portrait orientation.

This tripod also includes a fitted, padded carry case with a removable shoulder strap, two heavy-duty zippers, and an interior zipper pocket. A tool clip with two hex wrenches for adjusting the center column and the leg joints is also included. It snaps onto any of the tripod legs for easy access.
If you own a Oben tripods with heads and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Oben AC-1331 Aluminum Tripod with BA-108 Ball Head in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Oben AC-1331 Aluminum Tripod with BA-108 Ball Head:
General
Material Aluminum alloy
Load Capacity 8.8 lb (4.0 kg)
Maximum Height 59.6" (151.4 cm)
Maximum Height w/o Column Extended 49.4" (125.5 cm)
Minimum Height 8.8" (22.4 cm)
Folded Length 24.5" (62.2 cm)
Head Attachment Fitting 1/4"-20 and 3/8"-16 via reversible screw
Weight 3.3 lb (1.5 kg)
Legs
Sections 3
Leg Lock Type Flip-lock
Independent Leg Spread 80°, 55°, 24°
Spiked/Retractable Feet No
Center Brace No
Leg Tube Diameters Maximum: 1" (25 mm)
Center Column
Center Column Type Rapid: grooved, reversible, non-rotating
Bubble Level 3 x Tubular
2 x Bull's Eye
Head
Head Type Ball Head
Quick Release Yes
Packaging Info
Package Weight 5.2 lb
Box Dimensions (LxWxH) 28.0 x 5.0 x 5.0"
