User manual OKI MC770 All-in-One Color LED Printer 62446201

Operating instructions and pdf manual for use - OKI MC770 All-in-One Color LED Printer 62446201 User manual, User manual OKI MC770 All-in-One Color LED Printer 62446201, OKI, MC770, All-in-One, Color, LED, Printer, 62446201, Video


User manual for OKI MC770 All-in-One Color LED Printer 62446201

OKI  MC770  All-in-One Color LED Printer 62446201
  • Manufacturer: OKI
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Printers & Accessories - Laser Printers
  • Safety instructions
  • Startup and operation of the laser printers
  • Tips for setting up your OKI
  • Settings and expert assistance
  • Contact OKI service
  • Troubleshooting
  • Warranty information
OKI  MC770  All-in-One Color LED Printer 62446201 OKI  MC770  All-in-One Color LED Printer 62446201
Click to enlarge image

We recommend checking out our discussion threads on the OKI MC770 All-in-One Color LED Printer 62446201, which address similar problems with connecting and setting up Laser Printers OKI.



User manual for the OKI MC770 All-in-One Color LED Printer 62446201

The user manual for the OKI MC770 All-in-One Color LED Printer 62446201 provides necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - Laser Printers.

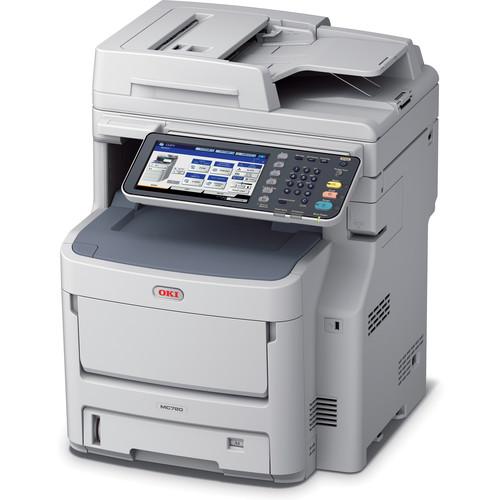

Medium-size workgroups will greatly benefit from the speed and features found in the MC770+ All-in-One Color LED Printer from OKI. In addition to a 1200 x 600 dpi LED printhead, this unit can scan, copy, and fax documents. Also, it can accept documents as large as 8.5 x 14" and as small as 3 x 5". Printing and copying is possible as very fast speeds of 35 ppm in color or 37 ppm in monochrome and when set to duplex 27 ipm in color or 28 ipm in monochrome. Additionally, scanning has an excellent speed through the use of the 100-sheet reversing automatic document feeder of 40 ipm at 300 dpi.

A color flatbed is available for scanning documents at a resolution of 600 x 600 dpi and with two USB host ports it can scan directly to a portable drive. Also, these ports enable direct printing and copying. Operation of the unit is simplified through an intuitive 9" color touchscreen display. And, it has both a 530-sheet main tray and a 100-sheet multi-purpose tray for media handling along with an impressive monthly duty cycle of 120,000 pages for reliability. For ensuring compatibility with your computer setup, it has both USB 2.0 and Ethernet connectivity.
If you own a OKI laser printers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the OKI MC770 All-in-One Color LED Printer 62446201 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the OKI MC770 All-in-One Color LED Printer 62446201:
Specifications
Functions Print, scan, copy, fax
Printer
Printing Technology LED
Print Color Color (Cyan, magenta, yellow, black)
Maximum Resolution 1200 x 600 dpi
Print Speed Simplex, Color: 35 ppm
Duplex, Color: 27 ipm
Simplex, Monochrome: 37 ppm
Duplex, Monochrome: 28 ipm
Toner Cartridge Compatibility Black Toner Cartridge (~15,000 pages)
Cyan Toner Cartridge (~11,500 pages)
Magenta Toner Cartridge (~11,500 pages)
Yellow Toner Cartridge (~11,500 pages)
First Print Out Speed Color: 9 seconds
Monochrome: 8 seconds
Duplex Printing Automatic
Printer Duty Cycle Monthly: 120,000 pages
Recommended Monthly Volume: 1,000 to 6,000 pages
Scanner
Scanner Type Color flatbed
Duplexing/reversing automatic document feeder
Scan Resolution 600 x 600 dpi
Scan Speed 40 ipm color/monochrome at 300 dpi
Maximum Scan Area 8.5 x 14.0" (21.6 x 35.6 cm)
Scan Modes Color, black & white, grayscale
Scanner Drivers TWAIN, WIA
Scan File Format JPEG, TIFF (multi/single page), PDF (multi/single page), Slim PDF, Secure PDF, XPS (multi/single page), PDF/A-1b
Address Book Management LDAP (3,000 entries)
Scanner Features Scan-To Capabilities: Filing box, shared folder, email, USB memory, WSD scan
Copier
Maximum Resolution 600 x 600 dpi
Copy Speed Color: 35 cpm
Monochrome: 37 cpm
First Copy-Out Time 13 seconds
Maximum Copy Size 8.5 x 14.0" (21.6 x 35.6 cm)
Copy Modes Text/Photo, Text, Photo
Duplex Copying Yes
Quantity Up to 999 copies
Reduction / Enlargement 25-400%
Copy Features 2-up, 4-up, collate, mixed size (letter/legal), job build, interrupt, cover sheet, sheet insertion, edge erase, ID copy
Fax
Modem Speed 33.6 kbps Super G3
Transmission Speed 3 seconds per page
Fax Resolution 300 x 300 dpi
Fax Memory 1 GB shared
Speed Dial Locations 3,000
Group Dials 200
Fax Broadcasting 400 destinations
Fax Features Dual access, Memory Tx/Rx, delayed transmission, PC-FAX, auto redial, speed dial, group dial
Media Handling
Paper Handling Main tray
Multi-purpose tray
Reversing automatic document feeder
Face-down output tray
Paper Capacity Main Tray: 530 sheets
Multi-Purpose Tray: 100 sheets
ADF: 100 sheets
Output Tray: 500 sheets
Optional 530-sheet 2nd, 3rd, and 4th trays
Optional 2,000-sheet large capacity feeder
Maximum: 3,160 sheets
Paper Types Letter, legal 13/13.5/14, executive, A4, A5, B5
Paper Sizes 3.0 x 5.0" to 8.5 x 14.0" (7.6 x 12.7 cm to 21.6 x 35.6 cm)
Banners up to 52" (132.1 cm) long
Media Weight 17 lb bond to 140 lb index bristol (64 to 253 gsm)
Stapler No
Connectivity
Interfaces Ethernet (10/100/1000Base-TX)
USB 2.0
2 x USB host ports
Direct Print Capable Yes, via USB host ports
OS Compatibility Windows 8, 7, Vista, Server 2012, Server 2008 R2, Server 2008, Server 2003
Mac OS X 10.6-10.10
Processor 1.2 GHz CPU
Memory 2 GB (Std./Max)
Hard Drive Capacity 160 GB secure hard disk drive
Printer Language PCL 6, PCL 5c, PDF, XPS, PostScript 3 emulations
Security IP Filtering, MAC Filtering, IPSec (option), Secure Print, Secure Print job encryption (by secure HDD), SMTP server authentication, POP before SMTP authentication, SL Security for SMTP Protocol, SNMPv3, SSL/TLS Encryption, Port Change, Storage Device Encryption, Secure Erase, Disable Host USB feature, LDAP authentication
General Attributes
Control Panel 9" (22.9 cm) color graphic touchscreen display; alphanumeric keypad and function buttons
Power Requirements 120 VAC
Power Consumption Peak: 1500 W
Average: 800 W
Standby: 130 W
Power Save: 60 W
Deep Sleep: 2 W
ENERGY STAR Compliant
TEC Value: 3.5 kWh
Acoustic Noise Operating: 52 dB(A)
Standby: 30 dB(A)
Dimensions 20.6 x 23.8 x 26.6" (52.2 x 60.4 x 67.5 cm)
Weight 105.8 lb (48 kg)
Packaging Info
Package Weight 137.0 lb
Box Dimensions (LxWxH) 32.0 x 28.0 x 25.0"
The user manual for the OKI MC770 All-in-One Color LED Printer 62446201 can be downloaded in .pdf format if it did not come with your new laser printers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other OKI users keep a unique electronic library for OKI laser printerss, where you can use our link to download the user manual for the OKI MC770 All-in-One Color LED Printer 62446201.

The user manual lists all of the functions of the OKI MC770 All-in-One Color LED Printer 62446201, all the basic and advanced features and tells you how to use the laser printers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from OKI service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the OKI MC770 All-in-One Color LED Printer 62446201. User manuals are also available on the OKI website under Computers & Solutions - Printers & Accessories - Laser Printers.
