User manual for the Olympus E-M5 Underwater Bundle with 14-42mm Lens V204041BU050

The user manual for the Olympus E-M5 Underwater Bundle with 14-42mm Lens V204041BU050 provides necessary instructions for the proper use of the product Photography - Underwater Photography - Still Cameras & Housings.

Capture the beauty, mystery, and variety of the aquatic environment at depths up to 147' using this E-M5 Digital Camera Underwater Bundle with a 14-42mm Lens, and PT-EP08 Housing from Olympus.

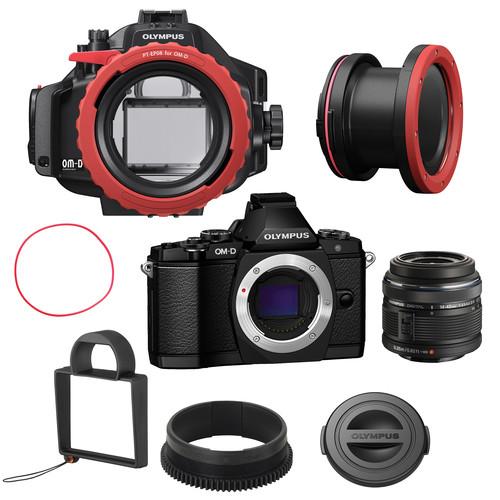

This package combines the OM-D E-M5 Mirrorless Micro Four Thirds digital camera body, the M.Zuiko Digital ED 14-42mm f/3.5-5.6 II R lens, the dedicated PT-EP08 underwater housing and PBC-EP08 body cap, with the PPO-EP01 lens port, the PFUD-EP08 underwater LCD hood, PPZR-EP02 zoom ring, POL-EP01 O-ring, a tube of silicone grease and some silica gel desiccant--giving you everything you need to embark on an underwater adventure.

The Olympus OM-D E-M5 Mirrorless Micro Four Thirds camera features a 16MP Live MOS image sensor and TruePic VI processor, which combine to deliver high-resolution stills, Full HD 1080i video, sequential shooting at 9.2 fps, and low-light sensitivity to ISO 25,600. The E-M5 is the first Olympus interchangeable-lens camera to incorporate a 120 fps refresh rate, a 1440k-dot, 1.15x EVF with an eye sensor to seamlessly switch between the tilting 3.0", 1,037k-dot, touchscreen OLED and the electronic viewfinder for ease-of-use. A built-in 5-axis VCM image stabilization mechanism is capable of reducing the effects of camera motion and image blur from five directions and ensures effective stabilization with all lenses. To help illuminate your subjects, the camera includes the FL-LM2 Flash unit, featuring a wireless flash control function that you can use with an underwater flash.

The M.Zuiko Digital ED 14-42mm f/3.5-5.6 II R Lens allows you to benefit from a wide-angle to short telephoto field of view without adding much weight or size to your camera system. This compact zoom offers a 35mm-equivalent focal length range of 28-84mm, a minimum working distance of 9.8", and full 3x zoom performance. This updated lens focuses faster than ever before, so you won't miss out on rapid shooting situations and features MSC technology for practically silent auto focus.

Enabling your camera to journey beneath the waves is the durable PT-EP08 Underwater Housing, made from corrosion-resistant polycarbonate. The included PPO-EP01 lens port and PPZR-EP02 zoom gear will accommodate the M.Zuiko 14-42mm f/3.5-5.6 IIR, as well as the optional 9-18mm f/4.0-5.6, among other optional lenses. Optional port adapters and zoom gears will enable the use of other ports for a wider range of optics. An accessory shoe on top of the housing permits the attachment of an optional underwater flash or lighting arm.

To reduce glare and improve visibility when shooting or viewing playback beneath the water's surface, the included PFUD-EP08 underwater LCD hood shields the LCD screen, which is visible through the housing's clear back. Other included accessories, the PBC-EP08 body cap protects your camera and lens port when you're not shooting, and the spare POL-EP01 O-Ring and tube of silicone grease will help keep your gear in top condition, protecting your valuable investment.
If you own a Olympus still cameras & housings and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Olympus E-M5 Underwater Bundle with 14-42mm Lens V204041BU050 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Olympus E-M5 Underwater Bundle with 14-42mm Lens V204041BU050:
Specifications
  • OM-D E-M5 Mirrorless Micro Four Thirds Digital Camera (Body, Black)
    Imaging
    Lens Mount Micro Four Thirds
    Camera Format Micro Four Thirds (2x Crop Factor)
    Pixels 16.1 Megapixel
    File Formats Still Images: JPEG, RAW
    Movies: AVI, MOV, MPEG-4 AVC/H.264
    Bit Depth 12-bit
    Dust Reduction System Yes
    Memory Card Type SD
    SDXC

    UHS-I compatible, Eye-Fi card compatible

    Image Stabilization Sensor-Shift, 5-Way
    AV Recording
    Video Recording Yes
    Aspect Ratio 4:3, 16:9
    Audio Recording Optional External Mic: With Video, Stereo

    Mono without external mic

    Focus Control
    Focus Type Auto & Manual
    Focus Mode Continuous-servo AF (C), Manual Focus (M), Single-servo AF (S)
    Autofocus Points 35
    Viewfinder/Display
    Viewfinder Type Electronic
    Viewfinder Coverage 100%
    Viewfinder Magnification Approx. 0.92x
    Diopter Adjustment - 4 to +2 m
    Display Screen 3" Rear Touchscreen Tilting  LED (610)
    Screen Coverage 100%
    Exposure Control
    ISO Sensitivity Auto, 200-25600

    Default: 200-1600

    Shutter 1/4000 - 60 seconds
    Remote Control RM-UC1 (Optional)
    Metering Method Center-weighted average metering, Multi-zone metering, Spot metering

    Multi-zone=Digital ESP

    Exposure Modes Modes: Aperture Priority, Auto, Manual, Program, Shutter Priority
    Compensation: -3 EV to +3 EV (in 1/3 EV steps)

    Also: Bulb, Time, Scene select AE, Art Filter, Underwater wide/macro
    Exposure compensation: 1/3, 1/2, 1 EV steps

    Flash
    Max Sync Speed 1 / 250 seconds
    Dedicated Flash System iTTL Groups: 4 Channels: 4
    External Flash Connection Hot Shoe
    Performance
    Connectivity AV Output
    DC Input
    HDMI D (Micro)
    USB 2.0

    Dedicated multi-connector accessory port 2

    Power
    Battery 1x BLN-1 Rechargeable Lithium-ion Battery Pack
    AC Power Adapter AC-3 (Optional)
    Operating/Storage Temperature 32 to 104°F (0 to 40°C)
    Humidity: 10 - 90%
    Physical
    Dimensions (WxHxD) 4.8 x 3.5 x 1.7" / 12.2 x 8.9 x 4.3 cm
    Weight 15 oz / .43 kg
    Packaging Info
    Box Dimensions (LxWxH) 9.8 x 5.7 x 4.1"
  • M.Zuiko Digital ED 14-42mm f/3.5-5.6 II R Lens (Black)
    Performance
    Focal Length 14 - 42mm
    Comparable Focal Length: 28 - 84 mm
    Aperture Maximum: f/3.5 - 5.6
    Minimum: f/22 - 22
    Camera Mount Type Micro Four Thirds
    Format Compatibility Micro Four Thirds
    Angle of View 75° - 29°
    Minimum Focus Distance 9.8" (24.89 cm)
    Magnification 0.19x
    Elements/Groups 8/7
    Diaphragm Blades 7
    Features
    Image Stabilization No
    Autofocus Yes
    Tripod Collar No
    Physical
    Filter Thread Front:37 mm
    Dimensions (DxL) Approx. 2.2 x 1.9" (5.59 x 4.83 cm)
    Weight 3.9 oz (111 g)
    Packaging Info
    Box Dimensions (LxWxH) 3.5 x 3.5 x 3.3"
  • PT-EP08 Underwater Housing for OM-D E-M5 Digital Camera
    Depth Rating 147.6' (45 m)
    Control Type Mechanical
    Controls Enables access to important camera functions
    All controls: Open/close dial, Slide lock, Slide lock 2, Shutter lever, Fn2 button, REC button, Sub dial, Optical fiber cable insertion slot / cap, Zoom dial, EVF window, Mode dial, LV lever, Main dial, Play button, Fn1 button, MENU button, INFO (Info display) button, Cross-cursor up button, OK button, Cross-cursor right button, Cross-cursor down button, ON/OFF dial, Erase button, Cross-cursor left button, Monitor window
    Construction Main Body: Polycarbonate
    O-ring: Silicone rubber
    Moisture Alarm None
    Port Bayonet-mounted, interchangeable glass port system (ports sold separately)
    Port PPO-EP01 accepts the M. ZUIKO DIGITAL ED 9-18mm f/4-5.6, ED 14-42mm f/3.5-5.6 / II / IIR, 45mm f/1.8, ED 75mm f/1.8, ED 60mm f/2.8 Macro, and ED 12-50mm f/3.5-6.3 EZ lenses (lenses sold separately)
    14-42mm requires the PPZR-EP01 zoom gear; 14-42mm II and IIR and the 9-18mm all require the PPZR-EP02 zoom gear (gears sold separately)
    With optional Macro Lens Adapter PMLA-EP01 (not included), you can use Underwater Macro Conversion Lens PTMC-01 (67mm filter thread diameter)
    With optional Port Adapter PAD-EP08 and Port Extension Ring PER-E01, use these underwater ports: Lens Port PPO-E04 for ZUIKO DIGITAL ED 8mm f/3.5 Fisheye, PPO-E01 for 35mm f/3.5 Macro (requires Four Thirds Adapter MMF-3) and PPO-E03 for ED 50mm f/2 Macro lens
    Internal Flash Usable N/A, camera has no built-in flash
    FL-LM2 flash provided with the OM-D E-M5 camera has wireless flash control function enabling control of UFL-2 Underwater Flash
    UFL-1 flash also compatible
    External Strobe Connector Optical fiber cable insertion slot
    Mount Accessory shoe permits attachment of a flash or lighting arm (not included)
    Tripod seat
    Dimensions (W x H x D) 7.87 x 6.42 x 4.5" (20 x 16.3 x 11.4 cm)
    Weight 2.27 lb (1.03 kg)
    Packaging Info
    Box Dimensions (LxWxH) 9.0 x 7.4 x 6.9"
  • PPO-EP01 Lens Port for PT-EP08 Underwater Housing for OM-D E-M5 Digital Camera
    Lenses Accommodates M. ZUIKO DIGITAL ED 9-18mm f/4-5.6, ED 14-42mm f/3.5-5.6 / II / IIR, 45mm f/1.8, ED 75mm f/1.8, and ED 60mm f/2.8 Macro lenses (sold separately)
    With optional Macro Lens Adapter PMLA-EP01 (not included): Underwater Macro Conversion Lens PTMC-01 (67mm filter thread diameter)
    Depth Rating 147.6' (45 m)
    Mount Type Bayonet
    Construction Flat, multi-coated glass front element
    Polycarbonate body
    Dimensions (Diam. x L) Not specified by manufacturer
    Weight Not specified by manufacturer
    Packaging Info
    Box Dimensions (LxWxH) 6.0 x 5.9 x 5.2"
  • PPZR-EP02 Underwater Zoom Gear for 9-18mm f/4-5.6 and 14-42mm f/3.5-5.6 II Lenses
    Packaging Info
    Box Dimensions (LxWxH) 3.0 x 3.0 x 0.2"
  • POL-EP01 O-Ring for PT-EP01 Underwater Housing
    Packaging Info
    Box Dimensions (LxWxH) 7.4 x 6.3 x 0.3"
  • PBC-EP08 Body Cap for Underwater Case
    Packaging Info
    Box Dimensions (LxWxH) 5.0 x 5.0 x 1.4"
  • PFUD-EP08 Underwater LCD Hood for PT-EP08 Housing
    Packaging Info
    Box Dimensions (LxWxH) 3.2 x 3.1 x 0.7"
  • Silicone Grease Tube
    Weight 0.2 oz / 5.0 g
    Packaging Info
    Box Dimensions (LxWxH) 6.0 x 3.7 x 0.6"
The user manual for the Olympus E-M5 Underwater Bundle with 14-42mm Lens V204041BU050 can be downloaded in .pdf format if it did not come with your new still cameras & housings, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Olympus users keep a unique electronic library for Olympus still cameras & housingss, where you can use our link to download the user manual for the Olympus E-M5 Underwater Bundle with 14-42mm Lens V204041BU050.

The user manual lists all of the functions of the Olympus E-M5 Underwater Bundle with 14-42mm Lens V204041BU050, all the basic and advanced features and tells you how to use the still cameras & housings. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Olympus service.
