User manual Olympus OM-D E-M1 Mirrorless Micro Four Thirds V207010SU000

Operating instructions and pdf manual for use - Olympus OM-D E-M1 Mirrorless Micro Four Thirds V207010SU000 User manual, User manual Olympus OM-D E-M1 Mirrorless Micro Four Thirds V207010SU000, Olympus, OM-D, E-M1, Mirrorless, Micro, Four, Thirds,


User manual for Olympus OM-D E-M1 Mirrorless Micro Four Thirds V207010SU000

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Olympus OM-D E-M1 Mirrorless Micro Four Thirds V207010SU000
  • Manufacturer: Olympus
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - Mirrorless System Cameras
  • Safety instructions
  • Startup and operation of the mirrorless system cameras
  • Tips for setting up your Olympus
  • Settings and expert assistance
  • Contact Olympus service
  • Troubleshooting
  • Warranty information
  • Price: 999 USD
Olympus OM-D E-M1 Mirrorless Micro Four Thirds V207010SU000 Olympus OM-D E-M1 Mirrorless Micro Four Thirds V207010SU000
Click to enlarge image

We recommend checking out our discussion threads on the Olympus OM-D E-M1 Mirrorless Micro Four Thirds V207010SU000, which address similar problems with connecting and setting up Mirrorless System Cameras Olympus.



User manual for the Olympus OM-D E-M1 Mirrorless Micro Four Thirds V207010SU000

The user manual for the Olympus OM-D E-M1 Mirrorless Micro Four Thirds V207010SU000 provides necessary instructions for the proper use of the product Photography - Digital Cameras - Mirrorless System Cameras.

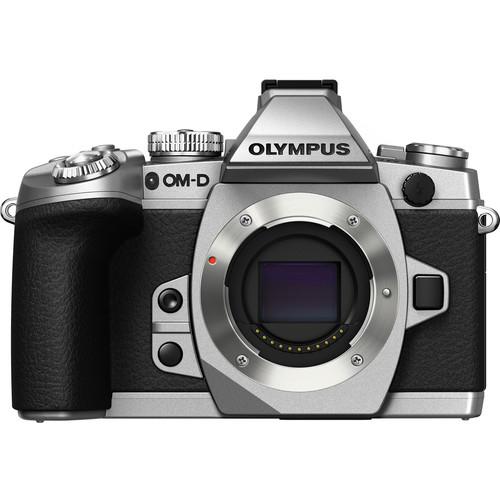

The silver Olympus OM-D E-M1 Mirrorless Micro Four Thirds Digital Camera is a compact, ergonomically designed camera featuring a 16.3 megapixel Live MOS sensor and TruePic VII image processor to produce high-resolution still imagery and full HD 1080p video with notable low-light quality and high-speed performance. The combination of these two technologies enables a high sensitivity range from ISO 100-25600 and also contributes to a top 1/8000 sec. shutter speed and continuous shooting up to 10 fps. The sensor also lends itself to an enhanced FAST autofocus system that utilizes dual contrast- and on-chip phase-detection focusing methods to quickly and accurately acquire focus with selectable focus areas for even greater precision.

Also benefitting image sharpness is in-body 5-axis image stabilization that compensates for vertical, horizontal, and rolling camera shake. IS-Auto mode can also be employed, which intelligently detect both vertical and horizontal panning and disengages image stabilization along the detected axes to provide stabilization when photographing moving subjects.

Both a high-resolution electronic viewfinder and tilting touchscreen monitor are available for live view monitoring, image playback, and menu navigation. The interactive EVF features a 2,360k-dot resolution and 1.48x magnification for comfortable eye-level viewing with the ability to preview image effects in real-time. Alternatively, the 3.0" 1,037k-dot tilting touchscreen LCD monitor can tilt upward 80° or downward 50° to suit working from high and low angles and its touchscreen design provides an intuitive means for controlling settings and navigating through the menu system. Both of these viewing mechanisms are housed within the ruggedly-designed dust-, splash-, and freezeproof magnesium alloy body. A large grip is integrated into the construction to provide a comfortable means for handling the camera and also facilitates more efficient control over a wide range of camera settings. Additionally, the incorporation of an X-sync socket, HDMI port, external microphone jack, and hot shoe also add to the E-M1's overall functionality.

For refined off-board control and image sharing, built-in wireless connectivity is available and, when paired with the Olympus O.I. Share app for iOS and Android mobile devices, remote sharing and control over the camera is possible. QR Code Connect provides a simple, seamless way of linking mobile devices to the camera and the option of utilizing a smartphone to embed locational data into the image files for geotagging is also supported.
If you own a Olympus mirrorless system cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Olympus OM-D E-M1 Mirrorless Micro Four Thirds V207010SU000 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Olympus OM-D E-M1 Mirrorless Micro Four Thirds V207010SU000Download user manual for Olympus OM-D E-M1 Mirrorless Micro Four Thirds V207010SU000
(PDF file, 4.53 MB)
Additional parameters of the Olympus OM-D E-M1 Mirrorless Micro Four Thirds V207010SU000:
Imaging
Lens Mount Micro Four Thirds
Camera Format Micro Four Thirds (2x Crop Factor)
Pixels Actual: 16.8 Megapixel
Effective: 16.3 Megapixel
Max Resolution 15.9 MP: 4608 x 3456
Sensor Type / Size MOS, 17.3 x 13 mm
File Formats Still Images: JPEG, MPO, RAW
Movies: AVI, MJPEG, MOV, MPEG-4 AVC/H.264
Audio: Linear PCM (Stereo), WAV
Bit Depth 12-bit
Dust Reduction System Yes
Memory Card Type SD
SDHC
SDXC
Image Stabilization Sensor-Shift, 5-Way
AV Recording
Video Recording Yes, NTSC/PAL
Resolution 1920 x 1080: 30 fps
1280 x 720: 30 fps
640 x 480: 30 fps
Aspect Ratio 4:3, 16:9
Video Clip Length Up to 29 Min
Audio Recording Built-in Mic: With Still Images & Video, Stereo
Optional External Mic: With Still Images & Video
Focus Control
Focus Type Auto & Manual
Focus Mode Continuous-servo AF (C), Manual Focus (M), Single-servo AF (S)
Autofocus Points Contrast Detection: 81
Phase Detection: 37
Viewfinder/Display
Viewfinder Type Electronic
Viewfinder Pixel Count 2,360,000
Viewfinder Eye Point 21.00 mm
Viewfinder Coverage 100%
Viewfinder Magnification Approx. 1.48x
Diopter Adjustment - 4 to +2 m
Display Screen 3" Wide Touchscreen Tilting  LCD (1,037,000)
Screen Coverage 100%
Exposure Control
ISO Sensitivity Auto, 100-25600
Shutter Type: Electronic & Mechanical
Speed: 60 - 1/8000 second
Type: Electronic & Mechanical
Speed: 30 - 1 seconds in  Bulb Mode
Remote Control RM-UC1 (Optional)
Metering Method Center-weighted average metering, Multi-zone metering, Spot metering
Exposure Modes Modes: Aperture Priority, Art Filter, Bulb, Manual, Programmed Auto, Scene Selection, Shutter Priority, Time, Underwater, iAUTO
Metering Range: EV -2.0 - EV 20.0
Compensation: -5 EV to +5 EV (in 1/3, 1/2 or 1 EV steps)
White Balance Modes Auto, Cloudy, Custom, Flash, Fluorescent, Incandescent, Kelvin, Shade, Sunlight, Underwater
Burst Rate Up to 10 fps
Up to 6.5 fps
Flash
Flash Modes Auto
Fill-in
Manual
Off
Red-eye Reduction
Second-curtain Sync
Slow Sync
Slow Sync/Red-eye Reduction
TTL Auto
Built-in Flash No
Max Sync Speed 1 / 320 seconds
Flash Compensation -3 EV to +3 EV (in 1/3, 1/2 or 1 EV steps)
Dedicated Flash System TTL Groups: 4 Channels: 4
External Flash Connection Hot Shoe, PC Terminal, Proprietary, Wireless
Performance
Continuous Shooting Up to 10 fps
Self Timer 12 seconds, 2 seconds
Custom: 1-30 seconds at 0.5, 1.0, 2.0, 3.0 second intervals
Number of Shots: 1-10
Interval Recording Yes
Internal Memory None
Connectivity USB 2.0
HDMI D (Micro) (out)
1/8" Microphone (in)
Wi-Fi Capable Yes
Power
Battery 1x BLN-1 Rechargeable Lithium-ion Battery Pack, 7.6 VDC, 1220 mAh
Operating/Storage Temperature Operating
14 to 104°F (-10 to 40°C)
Humidity: 30 - 90%
Physical
Dimensions (WxHxD) 5.1 x 3.7 x 2.5" / 130.4 x 93.5 x 63.1 mm CIPA guideline compliant, excluding protrusions
Weight 1.09 lb / 497 g CIPA guideline compliant, with battery and memory card
Packaging Info
Package Weight 3.0 lb
Box Dimensions (LxWxH) 9.6 x 7.0 x 4.0"
The user manual for the Olympus OM-D E-M1 Mirrorless Micro Four Thirds V207010SU000 can be downloaded in .pdf format if it did not come with your new mirrorless system cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Olympus users keep a unique electronic library for Olympus mirrorless system camerass, where you can use our link to download the user manual for the Olympus OM-D E-M1 Mirrorless Micro Four Thirds V207010SU000.

The user manual lists all of the functions of the Olympus OM-D E-M1 Mirrorless Micro Four Thirds V207010SU000, all the basic and advanced features and tells you how to use the mirrorless system cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Olympus service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Olympus OM-D E-M1 Mirrorless Micro Four Thirds V207010SU000. User manuals are also available on the Olympus website under Photography - Digital Cameras - Mirrorless System Cameras.
