User manual Onkyo CS-N755 Network Hi-Fi Mini System CS-N755

Operating instructions and pdf manual for use - Onkyo CS-N755 Network Hi-Fi Mini System CS-N755 User manual, User manual Onkyo CS-N755 Network Hi-Fi Mini System CS-N755, Onkyo, CS-N755, Network, Hi-Fi, Mini, System, CS-N755, Video


User manual for Onkyo CS-N755 Network Hi-Fi Mini System CS-N755

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.

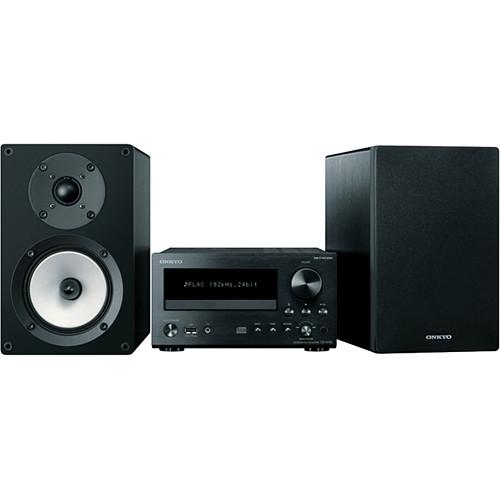

Onkyo  CS-N755 Network Hi-Fi Mini System CS-N755
  • Manufacturer: Onkyo
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - Tabletop Audio - Mini Hi-Fi Systems
  • Safety instructions
  • Startup and operation of the mini hi-fi systems
  • Tips for setting up your Onkyo
  • Settings and expert assistance
  • Contact Onkyo service
  • Troubleshooting
  • Warranty information
  • Price: 499 USD
We recommend checking out our discussion threads on the Onkyo CS-N755 Network Hi-Fi Mini System CS-N755, which address similar problems with connecting and setting up Mini Hi-Fi Systems Onkyo.



User manual for the Onkyo CS-N755 Network Hi-Fi Mini System CS-N755

The user manual for the Onkyo CS-N755 Network Hi-Fi Mini System CS-N755 provides necessary instructions for the proper use of the product TVs & Entertainment - Tabletop Audio - Mini Hi-Fi Systems.

The Onkyo CS-N755 Network Hi-Fi Mini System a front-loading CD player, FM/AM tuner with 40-station preset memory, USB port for iPod/iPhone, and digital inputs linked to the 192 kHz / 24-bit DAC for playback of lossless formats stored on computer. Plus, you can stream tracks from online music services and listen to Internet Radio programs. There are also optional wireless-capable Ethernet and Bluetooth USB adapters available (sold separately), which allow you to enjoy music from online channels including Spotify, vTuner, Last.fm and more. Or, just stream audio from your smartphone, PC, tablet or iPhone.
If you own a Onkyo mini hi-fi systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Onkyo CS-N755 Network Hi-Fi Mini System CS-N755 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Onkyo CS-N755 Network Hi-Fi Mini System CS-N755:
Specifications
    Amplifier
    Power Output 22W + 22W (4 ohms, 1 kHz, 0.4%, 2-channels driven, IEC)
    CD Playback Format Plays audio CD, CD-R CD-RW
    USB Port Yes (front-panel USB port for iPod/iPhone or flash memory device)
    Audio Playback Playback of audio files through local network and USB (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, LPCM, Apple Lossless, DSD)
    Applications Supports Onkyo Remote Apps for iPod touch, iPhone and Android smartphones
    Digital Audio Inputs Optical x 1
    Coaxial x 1
    Analog Inputs Analog audio x 3
    Analog Outputs Analog audio x 1
    Subwoofer Output Subwoofer pre-out
    Technology Three-stage Inverted Darlington Circuitry
    Symmetrical power amplifier circuit design
    VLSC (Vector Linear Shaping Circuitry)
    WRAT (Wide Range Amplifier Technology)
    Slew Rate 90 V/μsec
    DAC 192 kHz / 24-bit audio DAC (WM8718)
    THD & Noise 0.4% (1 kHz, 1W)
    Damping Factor 22 (1 kHz, 8 ohms)
    Input Impedance 47 kohms (line)
    Input Sensitivity 150 mV (line)
    Rated RCA Output Level 0.15V (line out)
    Output Impedance 330 ohms (line out)
    Frequency Response 10 Hz - 100 kHz ± 3 dB
    Tone Control ±6 dB, 80 Hz (Bass)
    ±8 dB, 10 kHz (Treble)
    +8 dB, 30 Hz (PM Bass)
    Signal to Noise Ratio 100 dB (line, IHF-A)
    Speaker Impedance 4 - 16 ohms
    Speaker Connectors Transparent gold-plated speaker posts
    Tuner
    Tuning Frequency Range FM: 87.5 - 108 MHz
    AM: 522 - 1611 kHz
    Presets 40 (FM/AM)
    Speakers
    Speaker Type 2-way bass-reflex speakers
    Equalizer Center-mounted equalizer on woofer for clear vocal sound
    Finish Black rubber finish speaker baffle
    Drivers Woofer: 4.7" (12 cm) N-OMF diaphragm
    Tweeter: 1" (2.5 cm) soft-dome
    Frequency Response 55 Hz - 35 kHz
    Crossover Frequency 2.5 kHz
    Output Sound Pressure Level 83 dB/W/m
    Maximum Input Power 70W
    Nominal Impedance 4 ohms
    General
    Chassis 0.05" (1.2 mm) solid chassis
    Power Supply AC 100 - 120V (50/60 Hz)
    Power Consumption 74W
    Standby Power Consumption 0.26W
    Dimensions (WxHxD) CD Receiver: 8.5 x 4.7 x 13" (215 x 119 x 331 mm)
    Speakers: 6.1 x 9.7 x 10.2" (154 x 245 x 258 mm)
    Weight CD Receiver: 10.6 lb (4.8 kg)
    Speakers: 7.9 lb (3.6 kg)
    Packaging Info
    Package Weight 33.15 lb
    Box Dimensions (LxWxH) 21.6 x 18.6 x 12.2"
    The user manual for the Onkyo CS-N755 Network Hi-Fi Mini System CS-N755 can be downloaded in .pdf format if it did not come with your new mini hi-fi systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Onkyo users keep a unique electronic library for Onkyo mini hi-fi systemss, where you can use our link to download the user manual for the Onkyo CS-N755 Network Hi-Fi Mini System CS-N755.

    The user manual lists all of the functions of the Onkyo CS-N755 Network Hi-Fi Mini System CS-N755, all the basic and advanced features and tells you how to use the mini hi-fi systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Onkyo service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Onkyo CS-N755 Network Hi-Fi Mini System CS-N755. User manuals are also available on the Onkyo website under TVs & Entertainment - Tabletop Audio - Mini Hi-Fi Systems.
