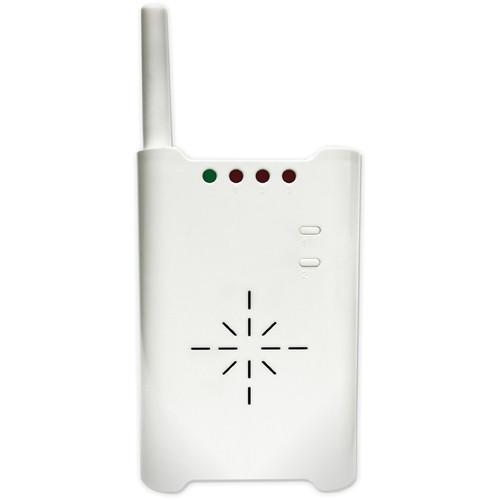

The Optex Receiver/Chime Box with Relay for RCTD-20U (Wireless 2000) Wireless Annunciator System is powered by an included AC adapter, and up to nine TD-20U battery-powered sensor transmitters can be added to a single RC-20U receiver (with an additional three added to a latching zone). In addition, the RC-20U Receiver/Chime Box includes a Form-C relay for activating additional devices such as lights, a camera, door lock, and more.
This receiver is suitable for home or business installations. The wireless system (the receiver when used with the transmitter) alerts you by three different chime tones and/or activates other electric devices (door strikes, lights, siren, CCTV) with relay output (RC-20U). This system can be triggered by TD-20U motion detectors, TC-10U door contacts, or manually by the TS-10U handheld push-button transmitter. The transmission range can be extended by using the TR-10U Repeater. The system offers you comfort and convenience in personal and commercial applications without complex wiring. It is suitable for perimeter awareness and wireless remote control.
If you own a Optex motion detector accessories and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Optex Chime Box Receiver with Relay for Wireless 2000 RC-20U in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Optex Chime Box Receiver with Relay for Wireless 2000 RC-20U:
Specifications
Power Source
9 VDC
Power Consumption
Standby: 1 W, operating: 2 W
Chimes
3 tone and 1 alarm (optional)
Volume
Adjustable 0 to 80 dB/5 levels (Continuous zone: maximum)
Relay Output
50 VAC, 1 A maximum or 24 VDC, 1 A maximum
Timer
Selectable: Off/1/5/30/60 sec/utility output mode
Status Indicator
Power Indicator: Green LED Zone Indicator: 3 x Red LED
