User manual Optex Wireless 2000 Driveway/Entry Annunciator & Sensor Kit

Operating instructions and pdf manual for use - Optex Wireless 2000 Driveway/Entry Annunciator & Sensor Kit User manual, User manual Optex Wireless 2000 Driveway/Entry Annunciator & Sensor Kit, Optex, Wireless, 2000, Driveway/Entry, Annunciator, &,


User manual for Optex Wireless 2000 Driveway/Entry Annunciator & Sensor Kit

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Optex Wireless 2000 Driveway/Entry Annunciator & Sensor Kit
  • Manufacturer: Optex
  • Basic description and contents of package
  • Product classification: Surveillance - Alarm Systems - Stand-Alone Alarms
  • Safety instructions
  • Startup and operation of the stand-alone alarms
  • Tips for setting up your Optex
  • Settings and expert assistance
  • Contact Optex service
  • Troubleshooting
  • Warranty information
  • Price: 158 USD
We recommend checking out our discussion threads on the Optex Wireless 2000 Driveway/Entry Annunciator & Sensor Kit, which address similar problems with connecting and setting up Stand-Alone Alarms Optex.



User manual for the Optex Wireless 2000 Driveway/Entry Annunciator & Sensor Kit

The user manual for the Optex Wireless 2000 Driveway/Entry Annunciator & Sensor Kit provides necessary instructions for the proper use of the product Surveillance - Alarm Systems - Stand-Alone Alarms.

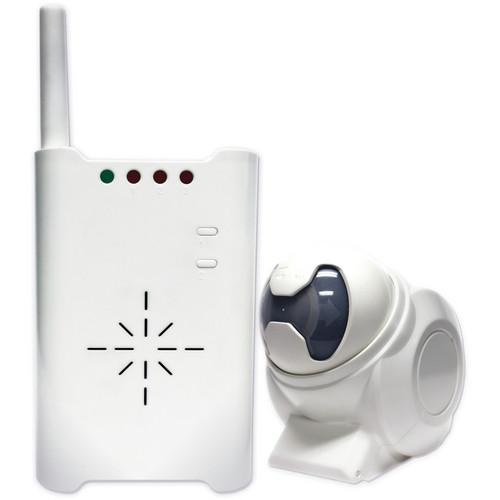

This B&H Kit is assembled to provide you with an alert system for two separate zones. The kit includes the Optex RCTD-20U Wireless Annunciator System, which includes the wireless receiver/chime box, and a wireless sensor/transmitter, as well as an additional sensor/transmitter. This kit is particularly useful when you have entrances that are not easily visible, or areas out of sight, but you still want to know when someone is approaching or has entered that area. Although this B & H kit includes only two sensors/transmitters, additional sensors/transmitters can be purchased separately. The Chime box supports up to nine sensors in three groups with each group featuring a distinctive chime. This capability allows you to set up and cover three distinct areas or entranceways provided you source at least one additional sensor/transmitter.

The Sensor/transmitters are passive IR sensors that are battery powered, operating on available 9V Lithium or Alkaline batteries, have a transmission range of two thousand feet, and feature a selectable detection pattern of either fifty or seventeen foot detection range. The chime box is powered by an included 9Volt power adapter, can be wall or table mounted, and features a built-in 24 volt DC relay system that can activate other devices.
If you own a Optex stand-alone alarms and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Optex Wireless 2000 Driveway/Entry Annunciator & Sensor Kit in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Optex Wireless 2000 Driveway/Entry Annunciator & Sensor Kit:
Specifications
    • Optex TD-20U Indoor/Outdoor Sensor Transmitter for Wireless 2000 System
      Packaging Info
      Box Dimensions (LxWxH) 8.5 x 7.5 x 4.4"
    • Optex Chime Box Receiver with Relay for Wireless 2000 Annunciator
      Packaging Info
      Box Dimensions (LxWxH) 8.5 x 7.5 x 4.4"
    • Optex TD-20U Indoor/Outdoor Sensor Transmitter for Wireless 2000 System
      Detection Method Passive Infrared
      Pattern 50.0' (15.2 m) long range
      17.0' (5.1 m) fan pattern
      Angle Adjustment 90° vertically and ±5° horizontally
      ±5° vertically and 90° horizontally
      Radio Frequency 418 MHz
      Transmission Range 1,000.0' (304.8 m) line of sight
      Power Source 9 V alkaline battery
      Battery Life Approximately 2 years (250 times/day at 70°F/20°C)
      Status Indicator Red LED
      Water Resistance IP54
      Installation Outdoor/Indoor
      Operating Temperature 15 to 120°F (-10 to 50°C)
      Dimensions (W x H x D) 3.5 x 4.2 x 4.5" (8.9 x 10.6 x 11.4 cm)
      Weight 6.3 oz (178.6 g)
      Packaging Info
      Box Dimensions (LxWxH) 5.0 x 4.9 x 4.4"
    The user manual for the Optex Wireless 2000 Driveway/Entry Annunciator & Sensor Kit can be downloaded in .pdf format if it did not come with your new stand-alone alarms, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Optex users keep a unique electronic library for Optex stand-alone alarmss, where you can use our link to download the user manual for the Optex Wireless 2000 Driveway/Entry Annunciator & Sensor Kit.

    The user manual lists all of the functions of the Optex Wireless 2000 Driveway/Entry Annunciator & Sensor Kit, all the basic and advanced features and tells you how to use the stand-alone alarms. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Optex service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Optex Wireless 2000 Driveway/Entry Annunciator & Sensor Kit. User manuals are also available on the Optex website under Surveillance - Alarm Systems - Stand-Alone Alarms.
