User manual for Opticron ES 80 GA ED/45 20-60x80mm Fieldscope with SDL v2 41307

Opticron ES 80 GA ED/45 20-60x80mm Fieldscope with SDL v2 41307
  • Manufacturer: Opticron
  • Basic description and contents of package
  • Product classification: Optics - Spotting Scopes - Spotting Scopes
  • Safety instructions
  • Startup and operation of the spotting scopes
  • Tips for setting up your Opticron
  • Settings and expert assistance
  • Contact Opticron service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Opticron ES 80 GA ED/45 20-60x80mm Fieldscope with SDL v2 41307, which address similar problems with connecting and setting up Spotting Scopes Opticron.



User manual for the Opticron ES 80 GA ED/45 20-60x80mm Fieldscope with SDL v2 41307

The user manual for the Opticron ES 80 GA ED/45 20-60x80mm Fieldscope with SDL v2 41307 provides necessary instructions for the proper use of the product Optics - Spotting Scopes - Spotting Scopes.

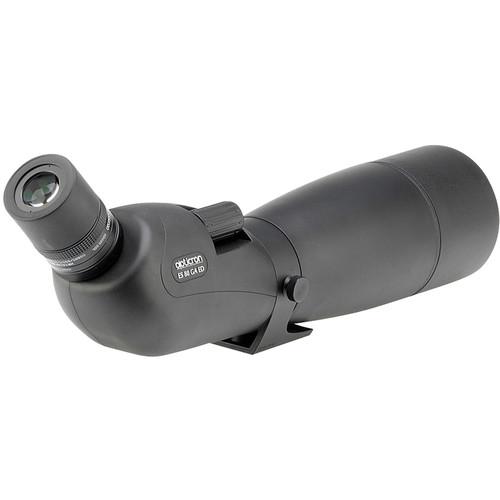

Offering an extensive zoom range with a refined optical design, the angled viewing ES 80 GA ED/45 20-60x80mm Fieldscope with SDL v2 Eyepiece from Opticron features a tri-element high definition objective lens system with F-type multi-coatings for increased contrast and color accuracy. Furthermore, the optical system also incorporates extra-low dispersion glass to minimize chromatic aberrations for maintained clarity and definition.

Complementing the optical design of this scope is a durable body design made up of magnesium and aluminum alloys, as well as polycarbonate, which has been nitrogen-filled in order to prevent condensation and offer water-resistant performance. A textured rubber armor offers increased tactility and a wide band focus wheel provides smooth control when focusing as closely as 19.7' away. A retractable lens hood shields the front element from stray light and a rotating eye cup on the eyepiece increases comfort when viewing. Additionally, a rotating tripod collar is also fitted to the scope to support its use from a variety of mounted positions.
If you own a Opticron spotting scopes and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Opticron ES 80 GA ED/45 20-60x80mm Fieldscope with SDL v2 41307 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Opticron ES 80 GA ED/45 20-60x80mm Fieldscope with SDL v2 41307:
Magnification 20-60x
Objective Lens Diameter 80mm
Field of View 99 - 60' @ 1000 yd / 30.2 - 18.3 m @ 1000 m
Minimum Focus Distance 19.7' / 6.0 m
Exit Pupil Diameter 4 - 1.3 mm
Eye Relief 20 - 18 mm
Eyepiece Lens Diameter 1.0" / 26mm
Filter Thread Not specified by manufacturer
Mounting Thread Not specified by manufacturer
Weatherproofing Nitrogen-filled
Length Scope: 15.4" / 39.1 cm
Eyepiece: 3.0" / 7.6 cm
Weight Scope: 3.5 lb / 1.6 kg
Eyepiece: 9.5 oz / 269.3 g
The user manual for the Opticron ES 80 GA ED/45 20-60x80mm Fieldscope with SDL v2 41307 can be downloaded in .pdf format if it did not come with your new spotting scopes, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Opticron users keep a unique electronic library for Opticron spotting scopess, where you can use our link to download the user manual for the Opticron ES 80 GA ED/45 20-60x80mm Fieldscope with SDL v2 41307.

The user manual lists all of the functions of the Opticron ES 80 GA ED/45 20-60x80mm Fieldscope with SDL v2 41307, all the basic and advanced features and tells you how to use the spotting scopes. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Opticron service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Opticron ES 80 GA ED/45 20-60x80mm Fieldscope with SDL v2 41307. User manuals are also available on the Opticron website under Optics - Spotting Scopes - Spotting Scopes.
