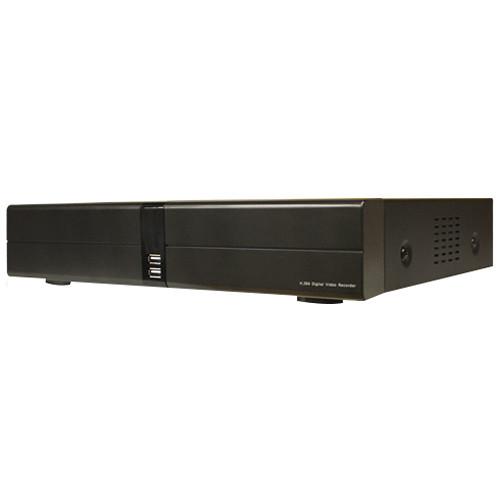

The ORION Images 1TB HDD 7-Channel HD-SDI Standalone DVR enables recording of Full HD resolution images from HD-SDI cameras. It also records real-time images across all channels at 720p HD resolution. It utilizes existing analogue infrastructure of coaxial cable while providing high resolution of image quality.
If you own a Orion Images digital video recorders (dvrs) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Orion Images 1TB HDD 7-Channel HD-SDI Standalone DVR HSDVRC721 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Orion Images 1TB HDD 7-Channel HD-SDI Standalone DVR HSDVRC721:
Video Input / Output
Camera Input 7 x BNC HD-SDI (75 Ω impedance)
Main Monitor Output HDMI
VGA 15-pin D-Sub
CVBS (BNC)
H.264 Profile For Rec / Playback
Encoding:
720p 30 fps at channel
1080i 15 fps at channel
1080p 15 fps at channel
Decoding:
720p 30 fps at channel
1080i 15 fps at channel
1080p 15 fps at channel
For Network
720p CIF 30 fps
1080i CIF 5 fps
1080p CIF 5 fps
Audio Input / Output
Audio In 4 x Line-In RCA jack
Audio Out 1 x Line-Out RCA jack (Live, playback, network) HDMI (Live, playback, network)
Codec ADPCM: 4 x Sensor for each channel
Sensor
Input 4 Sensor Inputs: 4 Terminal blocks (4 Sensor for each channel)
Output 1 Relay output
1 Terminal block (1 Relay output for system alarm or user control)
Motion Detection (Cell: 16 x 12 / sensitivity: 10 Steps)
Recording
Recording Options Continuous record
Motion record
Alarm record
Continuous and motion record
Continuous and alarm record
Motion and alarm record
Continuous, motion, and alarm record
Hard Drive
Internal HDD 1 TB
Network
Ethernet 1 x 10/100 M
USB
Front 1 x USB 2.0 HS
1 x USB 1.1 FS
Serial Interface
RS-485 1 x PTZ interface or keyboard controller
Power
Input DC Inlet (AC Adapter Type): +12 V / 3 A
Other Specifications
Fan 1 Connector for 3-pin fan, fan fail, or fan speed check
Interface Front Interface:
Key matrix and LED type
LED type
Remote Controller NEC Protocol Support
Mechanical
Dimensions 15.75 x 5.9 x 13.39" (40.01 x 14.98 x 34.01 cm)
Weight 8.8 lb (3.9 kg)
The user manual for the Orion Images 1TB HDD 7-Channel HD-SDI Standalone DVR HSDVRC721 can be downloaded in .pdf format if it did not come with your new digital video recorders (dvrs), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Orion Images users keep a unique electronic library for Orion Images digital video recorders (dvrs)s, where you can use our link to download the user manual for the Orion Images 1TB HDD 7-Channel HD-SDI Standalone DVR HSDVRC721.
