User manual for the Orion Images 32IPHPVM 32" 1080p LED BLU Back-Lit 32IPHPVM

The user manual for the Orion Images 32IPHPVM 32" 1080p LED BLU Back-Lit 32IPHPVM provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Surveillance Monitors.

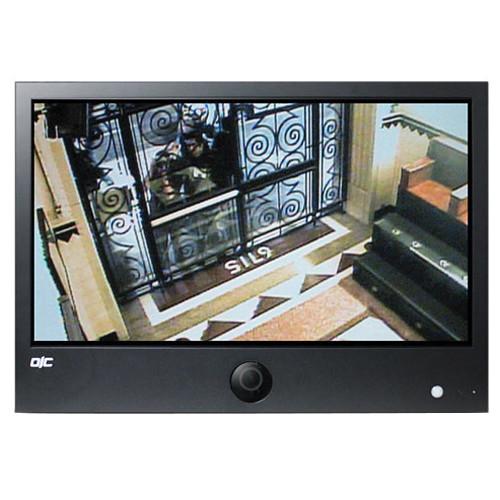

The ORION Images 32IPHPVM 32” 1080p LED BLU Back-Lit IP Public View Monitor comes with a built-in WDR Panasonic 2.2MP CMOS camera and motion-detection sensor, offering an effective theft-deterrent solution. With the optional built-in media card reader, you can turn your loss-prevention display into an advertising and marketing tool using pre-loaded marketing material that loops continuously. This monitor can be used in supermarkets, convenience stores, department stores, and other such applications. It comes in a metal chassis and features a screwless magnetic cover that allows for efficient cable management and protects the interfaces from humidity and other environmental conditions.
If you own a Orion Images surveillance monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Orion Images 32IPHPVM 32" 1080p LED BLU Back-Lit 32IPHPVM in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Orion Images 32IPHPVM 32" 1080p LED BLU Back-Lit 32IPHPVM:
Specifications
    Display
    Screen Size 32.0" (81.3 cm)
    Backlight LED BLU
    Maximum Resolution 1920 x 1080 @ 60 Hz
    Pixel Pitch 0.36375 x 0.36375 mm
    Brightness 400 cd/m²
    Contrast Ratio 1300:1
    Aspect Ratio 16:9
    Viewing Angle (H/V) 178° / 178°
    Display Color 16.7 million
    Response Time < 8 ms
    Video System NTSC / PAL
    Frequency (H) 31 to 48 kHz (Horizontal)
    Frequency (V) 56 to 75 kHz (Vertical)
    Interface
    Video In / Out (BNC Type) 2 / 3 (included camera out)
    HD-SDI Output 1, BNC type
    ONVIF 1 (RJ45), IP H.264 ONVIF Out
    HDMI In 1
    VGA In (15Pin D-Sub) 1
    Audio In (RCA Type) 1 (L + R)
    PC Stereo In 1
    Remote Control Yes
    Audio
    Built-In Speakers Yes (7.5 W x 2)
    Features
    Filter Type 3D Comb filter
    De-Interlace Yes (3D motion adaptive)
    Multi-Display Function PIP / PBP
    Noise Reduction Yes
    Multi Language Subtitle English, Spanish, French, German, Italian
    Auto Source Sequencing Yes
    Motion Sensor PIR Motion Sensor 10 to 30' (3 to 9 m)
    Snapshot 1 / 2 / 3 / 4 / 5 / 10 / 20 sec
    Camera
    Camera Type WDR camera
    Mechanical Design Tilt swivel 1080p camera
    Scanning System 2:1 interlace
    Image Sensor 1/3" Panasonic 2.2 MP CMOS
    WDR Control >50 dB
    Resolution Horizontal: 1000 TVL
    Lens Mount 2.8 to 12 mm varifocal 3 MP lens
    Sensitivity 0.1 lux with F1.2 lens / 0.002 lux sens-up x 256
    Electronic Shutter 1/60 to 1/60,000 sec
    Power
    Consumption < 110 W (On)
    Electrical Ratings 100 to 240 VAC (50/60 Hz)
    24 VDC
    Mount
    VESA Mount Size 200 x 200 mm
    Wall WB-2642
    Ceiling Bracket CMK-01 with FMA-01
    Mechanical
    Operating Temperature 32 to 104°F (0 to 40°C)
    Storage temperature -4 to 140°F (-20 to 60°C)
    Dimensions (W x H x D) 29.6 x 20.3 x 3.1" (75.2 x 51.6 x 7.9 cm)
    Weight 46.3 lb (21.0 kg)
    The user manual for the Orion Images 32IPHPVM 32" 1080p LED BLU Back-Lit 32IPHPVM can be downloaded in .pdf format if it did not come with your new surveillance monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Orion Images users keep a unique electronic library for Orion Images surveillance monitorss, where you can use our link to download the user manual for the Orion Images 32IPHPVM 32" 1080p LED BLU Back-Lit 32IPHPVM.

    The user manual lists all of the functions of the Orion Images 32IPHPVM 32" 1080p LED BLU Back-Lit 32IPHPVM, all the basic and advanced features and tells you how to use the surveillance monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Orion Images service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Orion Images 32IPHPVM 32" 1080p LED BLU Back-Lit 32IPHPVM. User manuals are also available on the Orion Images website under Surveillance - Surveillance Video - Surveillance Monitors.
