User manual OWC / Other World Computing ThunderBay 4 20TB OWCTB2IVT20.0S

Operating instructions and pdf manual for use - OWC / Other World Computing ThunderBay 4 20TB OWCTB2IVT20.0S User manual, User manual OWC / Other World Computing ThunderBay 4 20TB OWCTB2IVT20.0S, OWC, /, Other, World, Computing, ThunderBay, 4, 20TB


User manual for OWC / Other World Computing ThunderBay 4 20TB OWCTB2IVT20.0S

OWC / Other World Computing ThunderBay 4 20TB OWCTB2IVT20.0S
  • Manufacturer: OWC / Other World Computing
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - Hard Drive Arrays
  • Safety instructions
  • Startup and operation of the hard drive arrays
  • Tips for setting up your OWC / Other World Computing
  • Settings and expert assistance
  • Contact OWC / Other World Computing service
  • Troubleshooting
  • Warranty information
OWC / Other World Computing ThunderBay 4 20TB OWCTB2IVT20.0S OWC / Other World Computing ThunderBay 4 20TB OWCTB2IVT20.0S OWC / Other World Computing ThunderBay 4 20TB OWCTB2IVT20.0S OWC / Other World Computing ThunderBay 4 20TB OWCTB2IVT20.0S OWC / Other World Computing ThunderBay 4 20TB OWCTB2IVT20.0S OWC / Other World Computing ThunderBay 4 20TB OWCTB2IVT20.0S
Click to enlarge image

We recommend checking out our discussion threads on the OWC / Other World Computing ThunderBay 4 20TB OWCTB2IVT20.0S, which address similar problems with connecting and setting up Hard Drive Arrays OWC / Other World Computing.



User manual for the OWC / Other World Computing ThunderBay 4 20TB OWCTB2IVT20.0S

The user manual for the OWC / Other World Computing ThunderBay 4 20TB OWCTB2IVT20.0S provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Hard Drive Arrays.

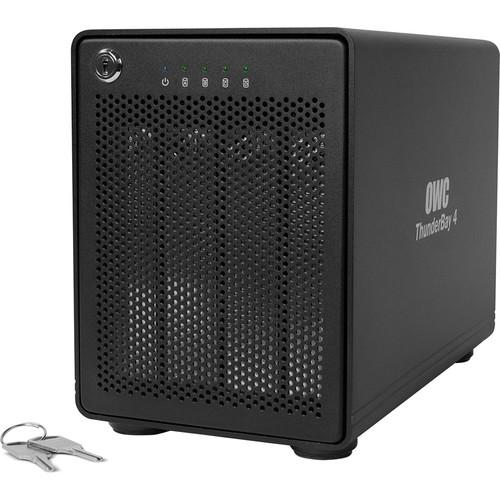

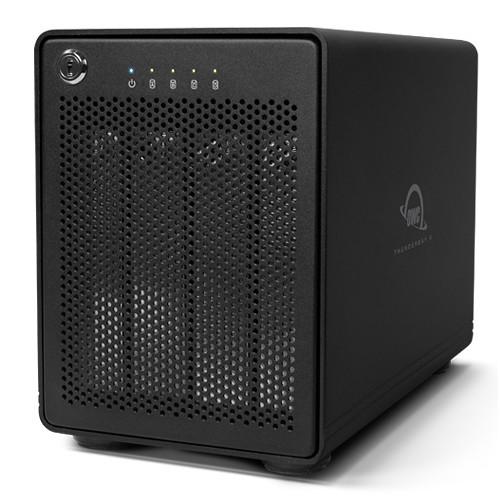

The ThunderBay 4 20TB (4 x 5TB) Four-Bay Thunderbolt RAID Array from OWC / Other World Computing comes with four hard drives preinstalled and connects to Mac systems via Thunderbolt. Behind the lockable front panel are four bays that each house a single 5TB hard drive. These drives feature 64MB of cache memory and spin at 7,200 rpm. Out of the box the drives work in JBOD mode where each drive is handled independently with its own drive letter. These drives can be software reconfigured in different RAID options that offer redundancy, speed, or a combination of both. RAID software is not included.

The ThunderBay 4 comes with two Thunderbolt 2 ports which allow you to daisy-chain up to six devices such as additional ThunderBays, 4K displays, and more. Thunderbolt 2 offers a single 20 Gb/s bi-directional channel that allows you to stream and write 4K video at the same time. To cool the hard drives, OWC uses a quiet 92mm fan. For service, OWC provides a 3-year warranty and also includes level 1 data recovery during the first year.
If you own a OWC / Other World Computing hard drive arrays and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the OWC / Other World Computing ThunderBay 4 20TB OWCTB2IVT20.0S in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for OWC / Other World Computing ThunderBay 4 20TB OWCTB2IVT20.0SDownload user manual for OWC / Other World Computing ThunderBay 4 20TB OWCTB2IVT20.0S
(PDF file, 2.92 MB)
Additional parameters of the OWC / Other World Computing ThunderBay 4 20TB OWCTB2IVT20.0S:
Chipset Thunderbolt 2
Interface Supported Thunderbolt 2 (20 Gb/s)
Ports 2 x Thunderbolt 2
RAID / JBOD Support JBOD: Utilize each of the four drives independently
RAID: Use any Software RAID of your choice to setup the ThunderBay 4 for multi-drive performance or data redundancy
Capacity 20 TB
Bays 4
Drives Included 4 x 5 TB Hard Drives
7200 rpm
64 MB of cache per drive
Temperature Operating: 41.0 to 107.6 F° / 5.0 to 42.0 C°
Non-operating: -40.0 to 149.0 F° / -40.0 to 65.0 C°
Humidity Operating: 8 to 90% RH (Non-condensing)
Non-operating: 5 to 95% RH (Non-condensing)
Shock Operating: 65 G 2 mS
Non-operating: 175 G 2 mS
Vibration Operating: 1.0 G (5 to 300 Hz)
Non-operating: 5.0 G (5 to 500 Hz)
Power Supply Internal UL Listed U.S./International Auto Switching 100 to 240 VAC, 50/60 Hz input as well as 12 V, 16.66 A output Power Supply
Port/Interface Bootability It can be used as a Thunderbolt startup drive on Macs running Mac OS X
System Requirements Mac with a Thunderbolt port running OS X 10.9 or later
PC running Windows 7 Service Pack 1 or later with a Thunderbolt port (driver required for proper installation)
Boot Camp is not supported
The Thunderbolt certification process does not include Macs running Windows through Boot Camp
Dimension (D x W x H) 9.7 x 5.3 x 7.0" / 24.5 x 13.5 x 17.7 cm
Weight 8.6 lb / 3.9 kg (no drives)
Packaging Info
Package Weight 19.85 lb
Box Dimensions (LxWxH) 16.378 x 15.512 x 11.575"
The user manual for the OWC / Other World Computing ThunderBay 4 20TB OWCTB2IVT20.0S can be downloaded in .pdf format if it did not come with your new hard drive arrays, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other OWC / Other World Computing users keep a unique electronic library for OWC / Other World Computing hard drive arrayss, where you can use our link to download the user manual for the OWC / Other World Computing ThunderBay 4 20TB OWCTB2IVT20.0S.

The user manual lists all of the functions of the OWC / Other World Computing ThunderBay 4 20TB OWCTB2IVT20.0S, all the basic and advanced features and tells you how to use the hard drive arrays. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from OWC / Other World Computing service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the OWC / Other World Computing ThunderBay 4 20TB OWCTB2IVT20.0S. User manuals are also available on the OWC / Other World Computing website under Computers & Solutions - Drives & Storage - Hard Drive Arrays.
