User manual PAG ZL-125 Time Battery 13.2 V 125 Wh (V-mount) 9317V

Operating instructions and pdf manual for use - PAG ZL-125 Time Battery 13.2 V 125 Wh (V-mount) 9317V User manual, User manual PAG ZL-125 Time Battery 13.2 V 125 Wh (V-mount) 9317V, PAG, ZL-125, Time, Battery, 13.2, V, 125, Wh, V-mount, 9317V,


User manual for PAG ZL-125 Time Battery 13.2 V 125 Wh (V-mount) 9317V

PAG ZL-125 Time Battery 13.2 V 125 Wh (V-mount) 9317V
  • Manufacturer: PAG
  • Basic description and contents of package
  • Product classification: Professional Video - Batteries & Power - On Camera Batteries
  • Safety instructions
  • Startup and operation of the on camera batteries
  • Tips for setting up your PAG
  • Settings and expert assistance
  • Contact PAG service
  • Troubleshooting
  • Warranty information
  • Price: 972 USD
We recommend checking out our discussion threads on the PAG ZL-125 Time Battery 13.2 V 125 Wh (V-mount) 9317V, which address similar problems with connecting and setting up On Camera Batteries PAG.



User manual for the PAG ZL-125 Time Battery 13.2 V 125 Wh (V-mount) 9317V

The user manual for the PAG ZL-125 Time Battery 13.2 V 125 Wh (V-mount) 9317V provides necessary instructions for the proper use of the product Professional Video - Batteries & Power - On Camera Batteries.

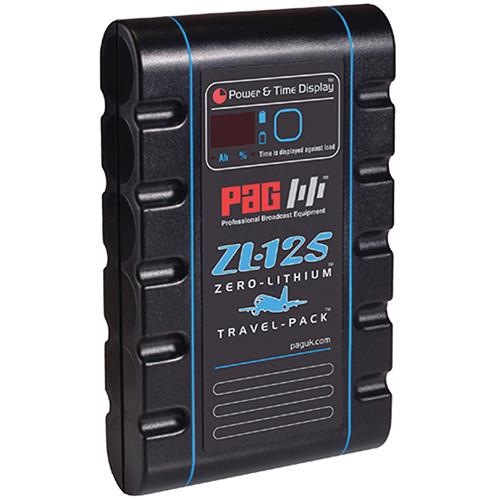

The PAG ZL-125 Time Battery 13.2V 125Wh (V-mount) is a Zero-Lithium, compact slimline SuperPack format battery that supplies 13.2V DC power to your camera. Featuring a high storage capacity of 125 Wh, the battery supplies uninterrupted current of 8 A simultaneously to your camera and on-board equipment for a jitter free operation. It offers a quick recharging time and can be used with any PAG charger designed to charge Ni-MH batteries.

Incorporating a highly accurate power and time display, the ZL-125 Time Battery (V-mount) provides an error-free estimation of the run-time taking into account the load on the battery with a count down with 1 minute increments. In addition, it also displays capacity in ampere and percentage. In the event of excessive currents, the battery performs a self-reset, thereby protecting itself against short circuits. A self-resetting thermal trip rated at 160° F (71° C) offers thermal protection as well.
If you own a PAG on camera batteries and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the PAG ZL-125 Time Battery 13.2 V 125 Wh (V-mount) 9317V in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the PAG ZL-125 Time Battery 13.2 V 125 Wh (V-mount) 9317V:
Specifications
    Construction Welded cell interconnections of low resistance nickel strap
    Battery Cells Premium grade Nickel-metal Hydride sealed rechargeable cylindrical cells
    Voltage 13.2V nominal (11 cells connected in series, nominal voltage 1.2V per cell)
    Capacity 125 Wh
    Connector V-mount
    Output Protection Short circuit
    Over-temperature (thermal trip rated 160° F / 71° C)
    Operating Temperature 32 to 104° F (0 to 40° C)
    Dimensions (HxWxD) 8.2 x 4.9 x 2.04" (208 x 125 x 52 mm)
    Weight 4.8 lb (2.2 kg)
    Packaging Info
    Package Weight 6.0 lb
    Box Dimensions (LxWxH) 12.0 x 10.0 x 6.0"
    The user manual for the PAG ZL-125 Time Battery 13.2 V 125 Wh (V-mount) 9317V can be downloaded in .pdf format if it did not come with your new on camera batteries, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other PAG users keep a unique electronic library for PAG on camera batteriess, where you can use our link to download the user manual for the PAG ZL-125 Time Battery 13.2 V 125 Wh (V-mount) 9317V.

    The user manual lists all of the functions of the PAG ZL-125 Time Battery 13.2 V 125 Wh (V-mount) 9317V, all the basic and advanced features and tells you how to use the on camera batteries. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from PAG service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the PAG ZL-125 Time Battery 13.2 V 125 Wh (V-mount) 9317V. User manuals are also available on the PAG website under Professional Video - Batteries & Power - On Camera Batteries.
