PDF-MANUALS.com | User manual here!
User manual

User manual Panasonic 720p Day/Night Box Camera with 3.6mm Fixed BL-VP104

Operating instructions and pdf manual for use - Panasonic 720p Day/Night Box Camera with 3.6mm Fixed BL-VP104 User manual, User manual Panasonic 720p Day/Night Box Camera with 3.6mm Fixed BL-VP104, Panasonic, 720p, Day/Night, Box, Camera, with, 3.6


User manual for Panasonic 720p Day/Night Box Camera with 3.6mm Fixed BL-VP104

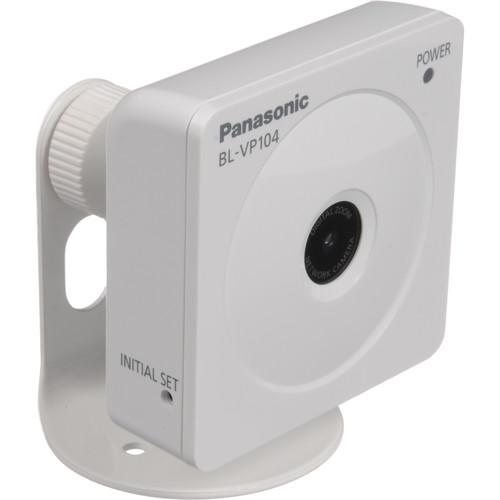

Panasonic 720p Day/Night Box Camera with 3.6mm Fixed BL-VP104
  • Manufacturer: Panasonic
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your Panasonic
  • Settings and expert assistance
  • Contact Panasonic service
  • Troubleshooting
  • Warranty information
  • Price: 30 USD
We recommend checking out our discussion threads on the Panasonic 720p Day/Night Box Camera with 3.6mm Fixed BL-VP104, which address similar problems with connecting and setting up Wired IP Cameras Panasonic.



User manual for the Panasonic 720p Day/Night Box Camera with 3.6mm Fixed BL-VP104

The user manual for the Panasonic 720p Day/Night Box Camera with 3.6mm Fixed BL-VP104 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

Smaller than 3" in height and length, the 720p Day/Night Box Camera from Panasonic can be used to discretely monitor areas, without clashing with your decoration. The camera features a 1/4 type progressive CMOS image sensor and a 3.6mm fixed lens to smoothly record goings-on at a 57° horizontal and 34° angle of view. The camera uses an electrical day/night function and 3D-DNR to offer clear pictures without high levels of noise. The camera can be programmed to recognize motion in four specific areas set by the administrator, and includes privacy masking in two selectable areas. When using a group of cameras, prioritized stream control allows the administrator to set the priority of each camera so specific areas are monitored with higher precedence. The camera offers WPS and IPv4 and IPv6 for easy setup.
If you own a Panasonic wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Panasonic 720p Day/Night Box Camera with 3.6mm Fixed BL-VP104 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Panasonic 720p Day/Night Box Camera with 3.6mm Fixed BL-VP104:
Specifications
    Camera
    Image Sensor 1/4 type CMOS sensor
    Effective Pixels Approximately 1 MP
    Scanning Mode Progressive
    Scanning Area (H x V) 0.15 x 0.09" (3.89 x 2.43 mm)
    Minimum Illumination Color: 0.9 lux (F2.8, Auto Slow Shutter: Off (1/30s), Gain: On (High)Color: 0.06 lux (F2.8, Auto Slow Shutter: Maximum 16/30s, Gain: On (High)BW: 0.6 lux (F2.8, Auto Slow Shutter: Off (1/30s), Gain: On (High)BW: 0.04 lux (F2.8, Auto Slow Shutter: Off (16/30s), Gain: On (High)
    White Balance AWC (2,000 to 10,000 K), ATW1 (2,700 to 6,000 K), ATW2 (2,000 to 6,000 K)
    Electronic Sensitivity Enhancement Auto (up to 16x) / off
    Light Control Mode Indoor scene (50 / 60 Hz) / ELC (maximum exposure time)
    Shutter Speed ELC 1/30 s, 3/100 s, 3/120 s, 2/100 s, 2/120 s, 1/100 s,1/120 s, 1/250 s, 1/500 s, 1/1,000 s,1/2,000 s, 1/4,000 s, 1/10,000 s
    Adaptive Black Stretch On / Off
    AGC (Automatic Gain Control) On (high) / On (mid) / On (low) / Off
    Electronic Sensitivity UP OFF (1/30 s), maximum 2/30 s, 4/30 s, 6/30 s, 10/30 s, 16/30 s
    Day & Night Electrical: Off / Auto
    Digital Noise Reduction (DNR) High / Low
    Video Motion Detection On / Off (Available at each preset)
    Privacy Zone ON / OFF (Up to 2 zones available)
    Camera Title (OSD) Up to 20 characters (alphanumeric characters)
    Lens
    Focal Length 3.6 mm
    Zoom Ratio Additional Zoom: 1.5x (at VGA resolution)
    Angular Field of View Horizontal: 57°, Vertical: 34°
    Maximum Aperture Ratio 1:2.8
    Focusing Range 1.31' to infinity (045 m to infinity)
    Pan & Tilt Unit
    Panning Range -41 to 41°
    Panning Speed Manual: Approximately 0.5 to 50°/s, Preset: Up to approx. 50°/s
    Tilting Range -32 to 10°
    Tilting Speed Manual: Approximately 0.5 to 50°/s, Preset: Up to approx. 50°/s
    Number of Preset Positions 64
    PTZ Position Display On / Off
    Self Return 10 s/ 20 s/ 30 s/ 1/ 2 / 3 / 5 / 10 / 20 / 30 / and 60 min
    Map Shot Preset
    Browser GUI
    Camera Control Brightness, AUX On / Off
    Display Mode Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screens (JPEG only). Camera titles of 20 characters available
    Zoom Extra zoom (1x to1.5x) and the electronic zoom (higher zoom factors, up to 12x)
    Camera Title Up to 20 alphanumeric characters
    Clock Display Time: 12 / 24 hour
    Date: 5 formats on the browser, summer time (manual)
    Alarm Control Reset
    One Shot Capture A still picture will be displayed on a newly opened window
    GUI Language Setup Menu: English, Japanese, Italian, French, German, Spanish, Chinese, and Russian
    System Log Up to 100 (internal), error logs
    Supported OS Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows XP SP3

    Refer to "Notes on Windows Vista / Window 7" on the provided CD-ROM for further information. When using IPv6 for communication, use Microsoft Windows 7 or Microsoft Windows Vista

    Supported Web Browsers Windows Internet Explorer 9.0 (32 bit), Windows Internet Explorer 8.0 (32 bit), Windows Internet Explorer 7.0 (32 bit), Microsoft Internet Explorer 6.0 SP3
    Network
    Network IF 10 Base-T / 100 Base-TX, RJ-45 connector (female)
    Image Resolution Aspect ratio (4 : 3): H.264: SVGA (800 x 600) / VGA (640 x 480) / QVGA (320 x 240), up to 30 fpsJPEG: SVGA(800 x 600) / VGA (640 x 480) / QVGA (320 x 240), up to 30 fpsAspect ratio (16 : 9): H.264: 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fpsJPEG: 1,280 x 720 / 640 x 360 / 320 x 180, up to 30 fps

    Transmission for 2 streams can be individually set in the same compression method

    Frame Rate H.264 Transmission Mode: Constant bitrate / frame rate / best effort
    Frame Rate: 1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps
    Bitrate/Client: 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 /4,096 / 8,192 Kbps
    Image Quality: low / normal / fine
    Refresh Interval: 1 to 30 fps
    Transmission Type: Unicast / multicast
    JPEG Image Quality: 10 steps
    Refresh Interval: 0.1 to 30 fps
    Transmission Type: Pull / push
    Total Bit Rate 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 Kbps / unlimited
    Supported Protocols IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARPIPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, and ARP
    FTP Client Alarm image transmission, FTP periodic transmission
    Number of Simultaneous Users Up to 14 users (depends on network conditions)
    Face Detection On / Off (with XML notification)
    Cellular Phone Compatibility JPEG image, pan / tilt / zoom / Privacy control, AUX control (by access level)
    Mobile Terminal Compatibility iPad, iPhone, iPod touch (iOS 4.2.1 or later), Android mobile terminals

    For further information about compatible devices, refer to website (http://panasonic.net/pss/security/support/info.html)

    Alarm
    Alarm Source VMD, Command alarm
    Alarm Actions Email notification, Indication on browser, FTP image transfer, Panasonic protocol output
    Schedule VMD
    General
    Power Source: 6.5 VDC (Use only with Panasonic AC adapter)Consumption: Maximum 2 W (120 VAC / 60 Hz)
    Safety/EMC Standard Safety UL60950-1 Ed.2, C22.2 NO.60950-1 Ed.2
    EMC FCC Part15 ClassB
    Ambient Operating Temperature 32 to 104˚F (0 to 40˚C)
    Ambient Operating Humidity Less than 90% (no condensation)
    Dimensions (W x H x D) 2.75 x 2.75 x 1" (70 x 70 x 25.4 mm) excluding projection
    Weight 0.17 lb (0.07 kg) approximately
    Packaging Info
    Package Weight 1.0 lb
    Box Dimensions (LxWxH) 6.6 x 6.5 x 3.8"
    The user manual for the Panasonic 720p Day/Night Box Camera with 3.6mm Fixed BL-VP104 can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Panasonic users keep a unique electronic library for Panasonic wired ip camerass, where you can use our link to download the user manual for the Panasonic 720p Day/Night Box Camera with 3.6mm Fixed BL-VP104.

    The user manual lists all of the functions of the Panasonic 720p Day/Night Box Camera with 3.6mm Fixed BL-VP104, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Panasonic service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Panasonic 720p Day/Night Box Camera with 3.6mm Fixed BL-VP104. User manuals are also available on the Panasonic website under Surveillance - Surveillance Video - Wired IP Cameras.



    Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Panasonic 720p Day/Night Box Camera with 3.6mm Fixed BL-VP104 - no comments have been made yet - be the first to add a comment

    Post new comment/question/response regarding the Panasonic 720p Day/Night Box Camera with 3.6mm Fixed BL-VP104

    Fields marked with * must be filled out.
    Your name *:
    E-mail :
    Subject *:
    Message text *:
    Enter the code *:
    (spam block)
    "manual"
    If you would like to receive a response to your comment, don’t forget to include your e-mail address. Your e-mail will not be displayed or otherwise used in any way.



    Can't find what you're looking for? Try Google Search!





    Current discussions
    Most recently discussed products:

    Need manual - Sakar My Little Pony Headphones HP1-01057
    Posted by: prashanth
    2017-04-27 23:53:11

    need Sakar My Little Pony Headphones HP1-01057 manul in pdf file...
    No pics after dark. - Moultrie A-7i Trail Camera MCG-12783
    Posted by: James f
    2017-04-27 15:18:45

    Hello if the camera has ir lights why doesn't it take pictures? I know there was game there because the food was eaten. Thanks for your input. ...
    volume on phone - BLU DIVA FLEX 2.4 32MB Feature Phone (Unlocked, Gray) T350 GRAY
    Posted by: Angie Swann
    2017-04-27 14:16:49

    My 97 year old Mom has this phone (purchased by my sister). It is very for her to use, but she keeps turning the volume on the phone down (she can't hear anyone while talking). I can't figure out where the volume is on the phone and I can't find it...
    Rodelink Manual - Rode RODELink Newsshooter Kit Digital Wireless NEWS SHOOTER
    Posted by: David
    2017-04-27 08:19:50

    Rodelink Manual...
    Does it work with TX-F408? - Walkera TX5816 5.8 GHz Video Transmitter RUNNER 250-Z-20
    Posted by: KHOA
    2017-04-27 06:01:00

    Does it work with Tx-F408 receiver monitor ( http://www.helipal.com/fxt-f408-4-3-all-in-one-fpv-monitor-w-raceband-black.html) ? thanks KHOA...

    Uploaded instruction manuals
    Upload a link to an instruction manual for a depicted product here:

    Link format "http://www.link2manual.com/manual.pdf"

    Enter the code: "manual"






    PDF-MANUALS.com - Community administered database of instructions for use and PDF user manuals
    sitemap.txt
