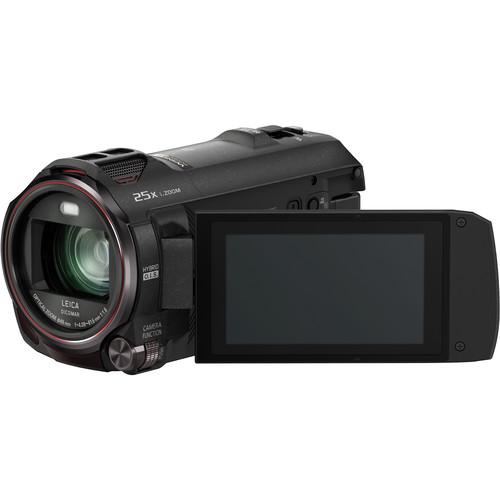

Click to enlarge image
|
We recommend checking out our discussion threads on the Panasonic HC-VX870K 4K Ultra HD Camcorder HC-VX870K,
which address similar problems with connecting and setting up Consumer Camcorders Panasonic.
|
User manual for the Panasonic HC-VX870K 4K Ultra HD Camcorder HC-VX870K
The user manual for the Panasonic HC-VX870K 4K Ultra HD Camcorder HC-VX870K provides
necessary instructions for the proper use of the product Camcorders - Consumer Camcorders.
Not only can you capture Ultra HD 4K (3840 x 2160) with the HC-VX870 4K Ultra HD Camcorder from Panasonic, but you can superimpose a secondary video image from your smartphone's camera via a Wi-Fi connection. In this way, covering two camera angles at once within a single recording becomes possible. Other notable features include a 20x optical zoom lens with a 29.5 to 626mm equivalent focal length - giving you a wide angle when zoomed out, a substantial amount of telephoto when zoomed in, and a lot to work with in between. For slowing fast action, the HC-VX870 captures 120 fps native slow-motion at 1080p resolution, which can be slowed down even further using in-camera interpolation - giving you a 240 fps final video.
Through their lens design partnership with Leica, Panasonic incorporated a Leica Dicomar 20x optical zoom lens with four separate optical groups and a maximum aperture of f/1.8. To keep excessive image vibration to a minimum, for steadier handheld shooting, the HC-VX870K features Panasonic's HYBRID O.I.S.+, which combines optical and digital image stabilization to provide 5-axis correction. Adjustable settings allow you to find a stabilization mode most appropriate for the kind of shooting you are doing. From OFF for tripod work, to Normal for regular handheld work, all the way up to Strong for those times when things really get shaky.
The HC-VX870's Wi-Fi does more than let you capture video from your phone's camera as a secondary camera angle. You can preview a live image on your mobile device using the Panasonic Image App and change camera settings. If the camera has Internet access, you can even upload web-friendly copies of videos and photos directly to social media websites. Plus, there's a Baby Monitor function which lets you use the camera like an IP surveillance camera, viewing a remote feed across the Internet.
|
If you own a Panasonic consumer camcorders and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Panasonic HC-VX870K 4K Ultra HD Camcorder HC-VX870K in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Panasonic HC-VX870K 4K Ultra HD Camcorder HC-VX870K:
| Sensor | 1x 18.91 Megapixel 1/2.3" MOS Sensor | | Backside Illumination | Yes | | Pixel Gross | 18,910,000 | | Effective Pixels | 8.3 @ Video 16:9
6.1 @ Video 16:9
8.3 @ Photo 16:9
7 @ Photo 3:2
6.2 @ Photo 4:3 | | Focal Length | 4.08 - 81.6 mm | | 35mm Equivalent Focal Length | 30.8 - 626 @ Aspect Ratio: 16:9 4K
37 - 752 @ Aspect Ratio: 16:9 Full HD-Level Shot Function Off or Normal
30.8 - 626 @ Aspect Ratio: 16:9 Photo
34.5 - 690.3 @ Aspect Ratio: 3:2 Photo
37.6 - 752.8 @ Aspect Ratio: 4:3 Photo | | Maximum Aperture | f/ 1.8 - f/ 3.6 | | Zoom | Optical: 20x
Intelligent: 25x 4K
Intelligent: 40x (in HD)
Digital: 60x
Digital: 1500x | | Filter Size | 49 mm | | System | NTSC | | Recording Media | SD/SDHC/SDXC | | Video Format | UltraHD
MP4
3840 x 2160p / 30 fps (72 Mbps)
High Definition
MP4
1920 x 1080p / 60 fps (50 Mbps)
1920 x 1080p / 60 fps (28 Mbps)
1280 x 720p / 60 fps (9 Mbps)
AVCHD Progressive
1920 x 1080p / 60 fps (28 Mbps)
AVCHD
1920 x 1080i / 60 fps (24 Mbps)
1920 x 1080i / 60 fps (17 Mbps)
1920 x 1080i / 60 fps (13 Mbps)
1920 x 1080i / 60 fps (5 Mbps)
iFrame
960 x 540p / 30 fps (28 Mbps) | | Aspect Ratio | 16:9 | | Slow Motion Mode | 120 fps recorded @ 1920 x 1080p | | Still Image Resolution | JPEG: 25.9 Megapixel, 6784 x 3816 (16:9)
JPEG: 14 Megapixel, 4992 x 2808 (16:9)
JPEG: 2.1 Megapixel, 1920 x 1080 (16:9)
JPEG: 20 Megapixel, 5472 x 3684 (3:2)
JPEG: 10.6 Megapixel, 3984 x 2656 (3:2)
JPEG: 2.0 Megapixel, 1728 x 1152 (3:2)
JPEG: 20.4 Megapixel, 5216 x 3912 (4:3)
JPEG: 10.9 Megapixel, 3808 x 2856 (4:3)
JPEG: .3 Megapixel, 640 x 480 | | Channels | 5.1-Channel | | Audio Format | AAC
Dolby Digital 2ch
Dolby Digital 5.1 | | Display Type | LCD | | Touchscreen | Yes | | Screen Size | 3" | | Pixel Count | 460,800 | | Rotation | Opening Angle: 90°
Turning Angle: 270° | | Shutter Speed | 1/30-1/8000 sec | | Shooting Modes | Auto
Low Light
M (Manual)
Miniature Effect
Night
Time-Lapse Movie | | Image Stabilization | Optical & Digital | | Scene Modes | Preset: Yes | | Lux | 1400 (Standard Illumination)
2 (Low Light Scene Mode)
1 (Night Mode (Color))
0 (Night Mode) | | White Balance Modes | Auto
Cloudy
Custom
Daylight
Indoor 1
Indoor 2 | | Creative Effects | Yes | | Built-in Mic | Yes | | Built-in Speaker | Yes | | Built-in Light/Flash | Light - Yes
Flash - Yes | | Wi-Fi | Yes, 802.11b/g/n | | Accessory Shoe | 1x Cold | | Tripod Mount | 1/4" - 20 | | Outputs | 1x HDMI D (Micro)
1x A/V
1x USB 2.0 | | Microphone Input | Yes | | Headphone Jack | Yes | | Languages | English
French
Spanish
Traditional Chinese | | Battery | Rechargeable Battery Pack, 3.6 VDC, 1940 mAh,
Providing up to 1 Hours per Charge | | Charging Method | AC Adapter
USB | | Power Consumption | Recording:7.6 W
Charging:7.7 W | | Dimensions (WxHxD) | 2.6 x 2.9 x 5.5" / 65.0 x 73.0 x 139.0 mm | | Weight | 12.45 oz / 353 g | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 8.8 x 5.9 x 4.1" | |
