User manual for the Panasonic HC-WX970ME 16GB 4K Ultra HD Camcorder HC-WX970ME
The user manual for the Panasonic HC-WX970ME 16GB 4K Ultra HD Camcorder HC-WX970ME provides
necessary instructions for the proper use of the product Camcorders - PAL Camcorders (Non USA).

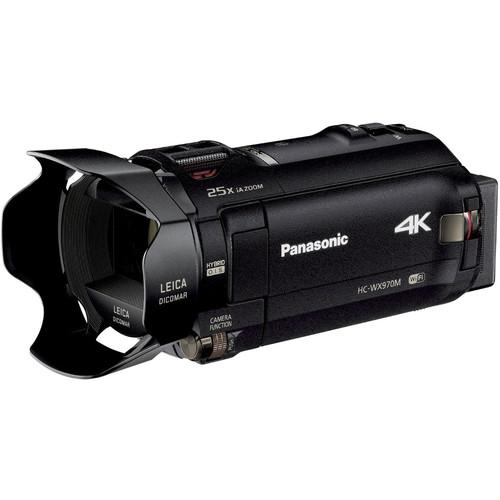

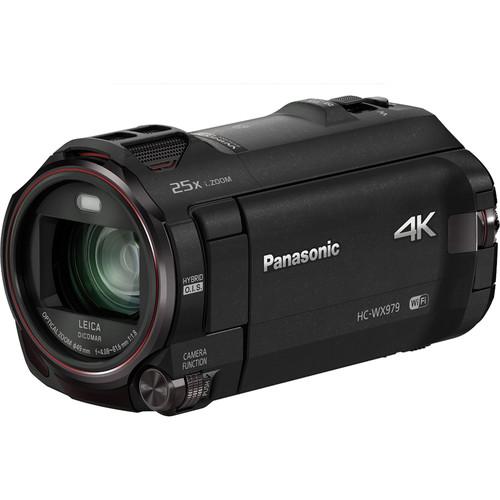

Record 4K and picture-in-picture video with the PAL Panasonic HC-WX970ME 16GB 4K Ultra HD Camcorder with Twin Video Camera in black. This camcorder is designed to be compatible with European broadcast standards and is not compatible with NTSC. It can capture video at 4K UHD (3840 x 2160) resolution, four times the resolution of full-HD video, at 50 frames-per-second. With that resolution, you can us the 4K Photo Mode to extract individual frames from your videos and create high-quality photographs. Panasonic's CrystalEngine 4K chipset reduces rolling shutter artifacts from the sensor by increasing readout speed. When stepping down to full HD resolution, the CrystalEngine 4K can record slow-motion video in camera. This model incorporates 16GB of internal memory, allowing you to record to the camera's memory or to optional media cards.
Through their lens design partnership with Leica, Panasonic incorporated a Leica Dicomar 20x optical zoom lens with four separate optical groups and a maximum aperture of f/1.8. To keep excessive image vibration to a minimum, Panasonic included its HYBRID OIS system into this camcorder. The HYBRID OIS system is capable of compensating for five directions of vibration using both optical and electronic stabilization.

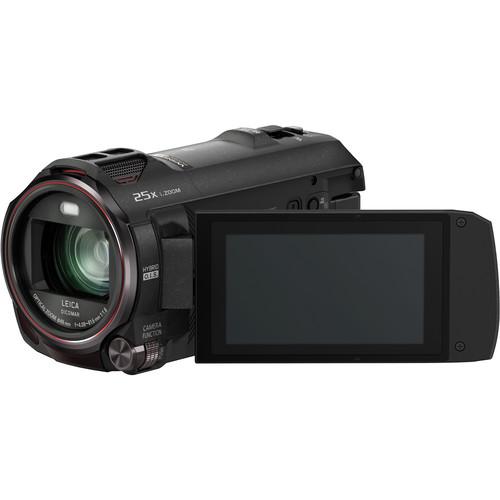

The camcorder is capable of recording two video streams simultaneously with its picture-in-picture mode. The HC-WX970ME incorporates a small camera on the side of the flip-out screen. This rotatable secondary camera can be used to capture a self-portrait or another angle. You can record 4K or HD using the main camera, and still record the images from the secondary camera into the picture and picture mode. Using the camera's built-in Wi-Fi you can use your smartphone's camera to provide the second camera angle instead of the HC-WX970ME's built-in second camera. The Wi-Fi functionality also allows you to control the HC-WX970ME from your smartphone.
|
If you own a Panasonic pal camcorders (non usa) and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Panasonic HC-WX970ME 16GB 4K Ultra HD Camcorder HC-WX970ME in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Panasonic HC-WX970ME 16GB 4K Ultra HD Camcorder HC-WX970ME:
| Sensor | 1x 18.91 Megapixel 1/2.3" MOS Sensor | | Backside Illumination | Yes | | Pixel Gross | 18,910,000 | | Effective Pixels | 8,290,000 @ Video 16:9
6,100,000 @ Video 16:9
8,290,000 @ Photo 16:9
6,220,000 @ Photo 4:3
7,000,000 @ Photo 3:2 | | Focal Length | 4.08 - 81.6 mm | | 35mm Equivalent Focal Length | 30.8 - 626 @ Aspect Ratio: 16:9 4K
37 - 752 @ Aspect Ratio: 16:9 Full HD
30.8 - 626 @ Aspect Ratio: 16:9 Photo
37.6 - 752.8 @ Aspect Ratio: 4:3 Photo
34.5 - 690.3 @ Aspect Ratio: 3:2 Photo | | Maximum Aperture | f/ 1.8 - f/ 3.6 | | Zoom | Optical: 20x 4K
Intelligent: 25x 4K
Intelligent: 40x (in HD)
Digital: 60x
Digital: 1500x | | Filter Size | 49 mm | | System | PAL | | Recording Media | Internal Flash Memory Up To 16 GB
SD/SDHC/SDXC | | Video Format | UltraHD
MP4
3840 x 2160p (72 Mbps)
High Definition
MP4
1920 x 1080p / 50 fps (50 Mbps)
1920 x 1080p / 25 fps (28 Mbps)
1280 x 720p / 25 fps (9 Mbps)
AVCHD Progressive
1920 x 1080p / 50 fps (28 Mbps)
AVCHD
1920 x 1080i / 50 fps (24 Mbps)
1920 x 1080i / 50 fps (17 Mbps)
1920 x 1080i / 50 fps (13 Mbps)
1920 x 1080i / 50 fps (5 Mbps)
iFrame
960 x 540p / 30 fps (28 Mbps) | | Aspect Ratio | 16:9 | | Still Image Resolution | JPEG: 25.9 Megapixel, 6784 x 3816 (16:9)
JPEG: 20 Megapixel, 5472 x 3684 (3:2)
JPEG: 20.4 Megapixel, 5216 x 3912 (4:3) | | Channels | 5.1-Channel | | Audio Format | Dolby Digital 5.1
LPCM | | Display Type | LCD | | Touchscreen | Yes | | Screen Size | 3" | | Pixel Count | 460,800 | | Rotation | Opening Angle: 90°
Turning Angle: 270° | | Image Stabilization | Optical & Digital | | Scene Modes | Preset: Yes | | Lux | 2 (1/25)
1 (Night Mode (Color))
0 (Night Mode IR) | | Creative Effects | Yes | | Built-in Mic | Yes | | Built-in Speaker | Yes | | Built-in Light/Flash | Light - Yes
Flash - Yes | | Wi-Fi | Yes, 802.11b/g/n | | Accessory Shoe | 1x Cold | | Tripod Mount | 1/4" - 20 | | Inputs | 1x 1/8" (3.5 mm) Stereo Input (Jack) | | Outputs | 1x HDMI D (Micro)
1x A/V
1x USB Micro-AB | | Microphone Input | Yes | | Headphone Jack | Yes | | Battery | Rechargeable Battery Pack Batteries, 3.6 VDC, 1940 mAh,
Providing up to 1 Hours per Charge | | Charging Method | AC Adapter | | Power Consumption | Recording:7.6 W
Charging:7.7 W | | Dimensions (WxHxD) | 2.6 x 2.9 x 5.5" / 65.0 x 73.0 x 139.0 mm | | Weight | 12.70 oz / 360 g | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 8.9 x 5.8 x 4.0" | |
