User manual Panasonic TY-TP50P30K Touch Panel for 50" Plasma TYTP50P30K

Operating instructions and pdf manual for use - Panasonic TY-TP50P30K Touch Panel for 50" Plasma TYTP50P30K User manual, User manual Panasonic TY-TP50P30K Touch Panel for 50" Plasma TYTP50P30K, Panasonic, TY-TP50P30K, Touch, Panel, 50, Plasma, TYTP


User manual for Panasonic TY-TP50P30K Touch Panel for 50" Plasma TYTP50P30K

Panasonic TY-TP50P30K Touch Panel for 50
  • Manufacturer: Panasonic
  • Basic description and contents of package
  • Product classification: A/V Presentation - Whiteboards, Easels & Displays - Whiteboard & Wall Display Accessories
  • Safety instructions
  • Startup and operation of the whiteboard & wall display accessories
  • Tips for setting up your Panasonic
  • Settings and expert assistance
  • Contact Panasonic service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Panasonic TY-TP50P30K Touch Panel for 50" Plasma TYTP50P30K, which address similar problems with connecting and setting up Whiteboard & Wall Display Accessories Panasonic.



User manual for the Panasonic TY-TP50P30K Touch Panel for 50" Plasma TYTP50P30K

The user manual for the Panasonic TY-TP50P30K Touch Panel for 50" Plasma TYTP50P30K provides necessary instructions for the proper use of the product A/V Presentation - Whiteboards, Easels & Displays - Whiteboard & Wall Display Accessories.

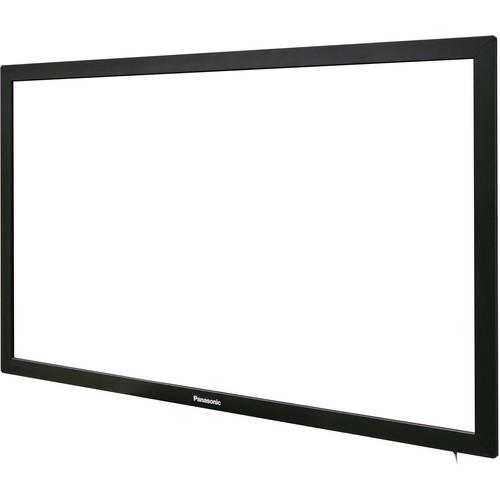

The Panasonic TY-TP50P30K Touch Panel for 50" Plasma Display achieves a high resolution of approximately 1769 x 985, and has a thin and compact design. With a built-in USB interface, the touch panel can be easily connected to peripheral devices of equipment such as PCs.
If you own a Panasonic whiteboard & wall display accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Panasonic TY-TP50P30K Touch Panel for 50" Plasma TYTP50P30K in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Panasonic TY-TP50P30K Touch Panel for 50" Plasma TYTP50P30K:
Detection Functions Infrared retroreflective detection
Aperture Panel (W x H): 44.3 x 25.2" (112.52 x 63.8 cm)
Detection Range (W x H): 43.5 x 24.3" (110.49 x 61.5 cm)
Effective Detection Area 1 mm above detection range; top, bottom, right, left
Resolution W x H: 443 x 247 (hardware processing)
W x H: 1769 x 985 (smoothing software processing)
Pitch Detection: 0.09 x 0.09" (2.5 x 2.5 mm)
Interface USB 1.1 compliance
Compliance +DATA, -DATA, VCC, GND
Connector I/F: TYPE A (cable connector)
Shape Flat panel
Material Aluminum (Filter made of polycarbonate)
Power Supply 5 VDC ± 10% (supplied from USB bus power)
Current 5 VDC, maximum 500 mA
Supported OS Windows XP 32-bit (Single touch), XP 64-bit (Single touch), Vista 32-bit (Single touch), Vista-64-bit (Single touch), Windows7 32-bit / 64-bit (Dual touch)
Temperature Temperature Gradient under 77°F/hour (25°C/hour): 32 to 104°F (0 to 40°C)

For touch panel only. When the panel is attached to a plasma display, please follow the conditions for use of the plasma display

Humidity No condensation: 20 to 80%
Dimensions (W x H x D) 48 x 28.9 x 0.5" (121.82 x 73.2 x 1.2 cm) excluding protruding parts and mounting bracket
Weight Excluding Mounting Bracket: Approximately 5.3 lb (2.4 kg)
Gross Weight: 20 lb (9.1 kg)
Packaging Info
Package Weight 20.0 lb
Box Dimensions (LxWxH) 53.0 x 36.0 x 4.0"
The user manual for the Panasonic TY-TP50P30K Touch Panel for 50" Plasma TYTP50P30K can be downloaded in .pdf format if it did not come with your new whiteboard & wall display accessories, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Panasonic users keep a unique electronic library for Panasonic whiteboard & wall display accessoriess, where you can use our link to download the user manual for the Panasonic TY-TP50P30K Touch Panel for 50" Plasma TYTP50P30K.

The user manual lists all of the functions of the Panasonic TY-TP50P30K Touch Panel for 50" Plasma TYTP50P30K, all the basic and advanced features and tells you how to use the whiteboard & wall display accessories. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Panasonic service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Panasonic TY-TP50P30K Touch Panel for 50" Plasma TYTP50P30K. User manuals are also available on the Panasonic website under A/V Presentation - Whiteboards, Easels & Displays - Whiteboard & Wall Display Accessories.
