User manual Panasonic WJ-NV300 32-Channel Network Video WJ-NV300/8KT4-24

Operating instructions and pdf manual for use - Panasonic WJ-NV300 32-Channel Network Video WJ-NV300/8KT4-24 User manual, User manual Panasonic WJ-NV300 32-Channel Network Video WJ-NV300/8KT4-24, Panasonic, WJ-NV300, 32-Channel, Network, Video, WJ-


User manual for Panasonic WJ-NV300 32-Channel Network Video WJ-NV300/8KT4-24

Panasonic WJ-NV300 32-Channel Network Video WJ-NV300/8KT4-24
  • Manufacturer: Panasonic
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Network Video Recorders (NVRs)
  • Safety instructions
  • Startup and operation of the network video recorders (nvrs)
  • Tips for setting up your Panasonic
  • Settings and expert assistance
  • Contact Panasonic service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Panasonic WJ-NV300 32-Channel Network Video WJ-NV300/8KT4-24, which address similar problems with connecting and setting up Network Video Recorders (NVRs) Panasonic.



User manual for the Panasonic WJ-NV300 32-Channel Network Video WJ-NV300/8KT4-24

The user manual for the Panasonic WJ-NV300 32-Channel Network Video WJ-NV300/8KT4-24 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Network Video Recorders (NVRs).

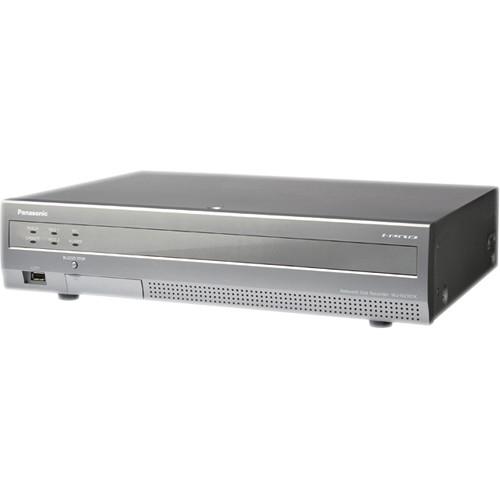

The 8TB WJ-NV300 32-Channel Network Video Recorder (NTSC) from Panasonic supports 24 network cameras. With the addition of one WJ-NVE30 additional camera license, the number of channels can be expanded to 32. This NVR offers two 3.5" hard drive bays and comes with 2 pre-installed 4TB SATA hard drives. It also features HDMI output to display recorded images and live images in high definition.
If you own a Panasonic network video recorders (nvrs) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Panasonic WJ-NV300 32-Channel Network Video WJ-NV300/8KT4-24 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Panasonic WJ-NV300 32-Channel Network Video WJ-NV300/8KT4-24:
Specifications
    Camera
    Compatibility Panasonic i-PRO series Network Cameras, ONVIF NVT conformant cameras, and encoder cameras
    Compression H.264, MJPEG
    Image Resolution Supported: 4:3 Aspect Ratio: QXGA (2048 x 1536), SXVGA (1280 x 960), SVGA (800 x 600), VGA (640 x 480), QVGA (320 x 240)
    16:9 Aspect Ratio: 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180)

    Resolution is dependent on the specific camera model

    Audio Codec G.726 (ADPCM), 32 kb/s
    Maximum Number of Cameras Natively Supported: 24
    Maximum: 32 by adding one WJ-NVE30 additional camera license
    Recording
    Mode Event, schedule
    Pre-Alarm Up to 15 sec (up to 10 sec at 1920 x 1080 and up to 5 sec at QXGA resolution)
    Scheduled Recording 4 programs, 3 time zones/day, independent setup for each day of the week
    Frame Rate Up to 60 ips depending on the camera
    Main Unit
    Camera Control Pan/tilt, zoom, focus, brightness, preset position call and program (up to 256), auto mode, click centering, wheel zoom, zoom reset, auto back focus
    Multi-Screen Display Main Monitor: 4/16 split screen display, 4/6/9/12/16/24/32 split screen display on a full screen (24/32-multiscreen is available when sub monitor is not on)
    Sub Monitor: 1 screen sequence, 4 split screen sequence, 9/16 split screen display
    Playback Control Play, rev play, pause, stop, FF, FR, previous record, next record, previous image, next image, go to date, go to last (30 sec)
    Search Modes Criteria: Time date, playback by designating a timeline, VMD
    Copy Recorded data of selected cameras and time date range can be copied to the SD/SDHC card & USB media (both not included)
    Camera Title Up to 14 characters
    Clock Display Time: 12/24H; Date: 5 formats
    Digital Zoom Live: 2x, 4x, 8x (only for 1-screen or 4-screen); Play: 2x, 4x, 8x
    System Log Operator access (100), network error (100), error (1,000), event (750)
    System Setup Setup page in English, French, Italian, Spanish, German, Russian, Portuguese, Japanese
    Other Functions 360 Camera Dewarp: Only 1 channel display mode
    Re-encoding: 1 Client
    Real Time Face Matching: Camera: 1 Channel; 100 registered face images
    Browser GUI
    Camera Control Pan/tilt, zoom, focus, brightness, preset position call and program (up to 256), auto mode, click centering, wheel zoom, zoom reset, auto back focus
    Playback Control Play, rev play, pause, stop, FF, FR, previous record, next record, previous image, next image, go to date, go to last (30 sec)
    Search Modes Criteria: Time date, event type, VMD, camera number
    Display Mode 1 / 4 screen
    Download Image: Recorded data of selected camera and time range can be downloaded to a PC; viewer software can be downloaded separately
    Copy Recorded data of selected cameras and time date range can be copied to the SD /SDHC card (not included)
    Camera Title Up to 14 characters
    Clock Display Time: 12/24H; Date: 5 formats
    Alarm Control Reset
    Digital Zoom Live/Play: 2x, 4x (only for 1-screen)
    System Log Operator access (100), Network error (100), Error (1000), Event (750)
    GUI Language English, French, Italian, Spanish, German, Russian, Portuguese, Japanese
    Supported OS Microsoft Windows Vista/7/8.1
    Supported Browsers Internet Explorer 7/8/9/10/11 (32-bit)
    PC Requirements CPU: Intel Core i7-920 or faster
    RAM: 3 GB or more
    Video RAM: 128 MB or more (minimum 64 MB)
    DirectX Version: 9.0c or later
    Alarm and Event
    Alarm Source 9 x terminal inputs, 32 x camera alarms (Panasonic Alarm Protocol), 128 x command alarms
    Modes Event: Off / on
    Alarm Actions Alarm recording, email notification, alarm message, camera positioning, terminal output, Panasonic Alarm Protocol output, buzzer, indicator
    Alarm Control Reset
    Event Log 750
    Input/Output
    Spot Output Connector: 1 x 1 Vpp / 75 Ω (BNC)
    Monitor Outputs 2 x HDMI; 1920 x 1080p (50 / 60 Hz), 1920 x 1080i (50 / 60 Hz), 720 x 576p (50 Hz), 720 x 480p (60 Hz)
    Audio Output Connector 1; -10 dBv, 600 Ω, unbalanced (RCA)
    Alarm Alarm input 1 to 9 (50 kΩ +5 VDC), alarm output (24 VDC, 100 mA maximum), alarm reset input (50 kΩ +5 VDC)
    Control Time adjustment input, +5 V output (200 mA maximum)
    Warning Network error output, HDD error output, camera error output, recorder error output, recording error output (24 VDC, 100 mA maximum each)
    Mouse Support 1 port for mouse connection
    USB Memory Only USB 2.0 memory
    Memory Card Slot SDHC/SD card (not included)
    External Storage Support for 2 x HDE400 Hard Disk Extension Units (available separately)
    Network
    Ports 2 x 10/100/1000 Base-T (RJ-45)
    Recording Rate Maximum: Up to 128 Mb/s
    Bandwidth Up to 160 Mb/s (total)
    Supported Protocols TCP/IP, UDP/IP, HTTP, FTP, SMTP, DNS, NTP, SNMP, RTP
    Email Alert Upon alarm or warning
    FTP Client 1
    Number of Simultaneous Users Up to 8
    User Registration Up to 16 users
    User Levels 3 programmable levels
    Partitioning User Level: Camera (view & control, no access)
    Security Method: User authentication (ID and password), alteration detection
    Other Features
    Time Synchronization Terminal (slave), NTP (server/client)
    Time Setting Summer Time: User definable (using menu setup)
    Remote Monitoring Smartphone/Tablet: 1 x Client

    Panasonic Security Viewer v.2.1 or later is required on smartphone/tablet PC

    HDD
    3.5" Drive Bays Up to 2 x 3.5" HDD can be installed
    Maximum Capacity 4 TB per hard drive
    Installed Hard Drives 2 x 4 TB; 8 TB total storage
    RAID 1, 5, 6

    RAID 5, 6 with WJ-HDE400 Hard Disk Extension Unit

    Software
    Playback Control Play, rev play, pause, stop, FF, FR, previous record, next record, previous image, next image
    Additional Functions Alteration detection, save as JPEG, 2x zoom, print, copy
    Supported Language English
    General
    Safety UL (UL60065), FCC (Part15 Class A), C-UL (CAN/CSA C22.2 No.60065),DOC (ICES003 Class A)
    Power Source 120 VAC, 60 Hz
    Power Consumption Approximately 55 W (with 2 x 4 TB hard drives)
    Ambient Operating Temperature NVR: 41 to 113°F (5 to 45°C)
    Mouse: 41 to 104°F (5 to 40°C)
    Ambient Operating Humidity 5 to 90% (non-condensing)
    Operating Altitude Maximum 6,562' (2,000 m) above sea level
    Dimensions (W x H x D) Approximately 16.5 x 3.5 x 11.8" (42.0 x 8.8 x 30.0 cm) excluding rubber feet and projections
    Weight 11.7 lb (5.3 kg) without HDD; 13.2 lb (6.0 kg) with 1 HDD; 14.8 lb (6.7 kg) with 2 HDDs
    The user manual for the Panasonic WJ-NV300 32-Channel Network Video WJ-NV300/8KT4-24 can be downloaded in .pdf format if it did not come with your new network video recorders (nvrs), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Panasonic users keep a unique electronic library for Panasonic network video recorders (nvrs)s, where you can use our link to download the user manual for the Panasonic WJ-NV300 32-Channel Network Video WJ-NV300/8KT4-24.

    The user manual lists all of the functions of the Panasonic WJ-NV300 32-Channel Network Video WJ-NV300/8KT4-24, all the basic and advanced features and tells you how to use the network video recorders (nvrs). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Panasonic service.
